10 Years Factory Rg59 Rg59+2c Rg11 RG6 Coaxial Cable

Name: 10 Years Factory Rg59 Rg59+2c Rg11 RG6 Coaxial Cable
Brand: all-electronics-online.com
SKU: 827429915
Availability: InStock
Rating: 4.6 (50 reviews)

Price:	US $ 0.05-0.25/Meter
Min Order:	300000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

hot selling RG59 coaxial cable

1.With litte leakage
2.High-voltage
3.Low-attenuation applications
hot selling RG59 coaxial cable 1) Construction
Center Conductor:0.81+0.01mm Solid Copper/Copper Clad Steel
Dielectric:3.66+0.05mmFoam PE/Solid PE
Shield:Al Foil/Bonded Al Foil
Braid Coverage:60% Al/BC
Jacket:6.10+0.10mm PVC
power cable coductor: BC/CCA/CCU/CCS
insulation:PE

2) Parameter
Impedance:75+3 Ohm
Capacitance:54+3pF/m
Velocity of Propagation:85%
Return Loss:20dB min (5-2300MHz)

3) Attenuation(20°C)

Frequency (MHz)	Maximum (dB/100ft.)	Maximum (dB/10m)
5	0.58	1.9
50	1.5	4.9
100	2	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.5	21.4
1450	8	26.2
1800	8.5	27.9
2100	9.5	31.1
2250	10	34
3000	11.4	37.5

Prod Model:	RG6 cable
Insulation:	Foam PE
Jacket:	PVC
Conductor:	Copper CCA CCS
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Brand:	Jiuxin

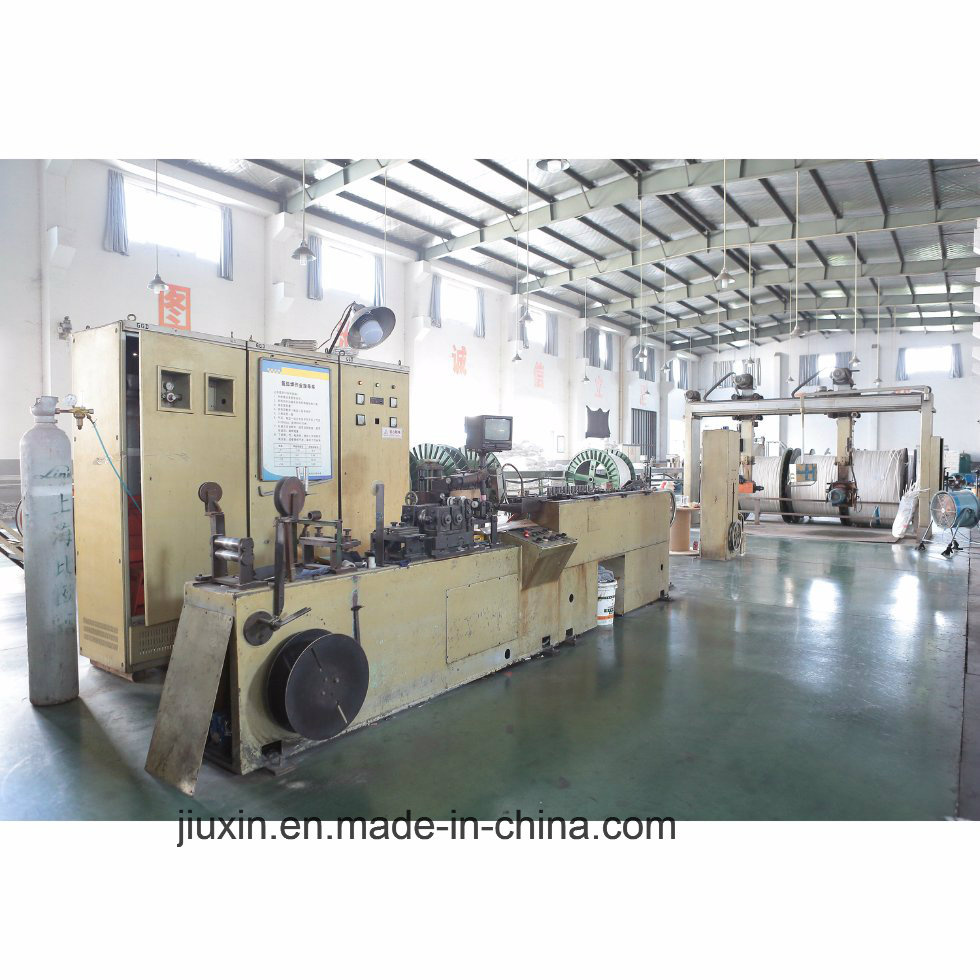

Suzhou Jiuxin Cable Co. Ltd was founded in 2003. Is a professional manufacture of coaxial cable. Located in Qidu town, Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.

The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got SARFT registration certificate and ISO quality system certification.

Providing excellent service to all customers is the basic policy of Jiuxin. With excellence in quality control and the responsibility of management, we will continuously devote to company future and staff well-beings.
