| Prod Model: |

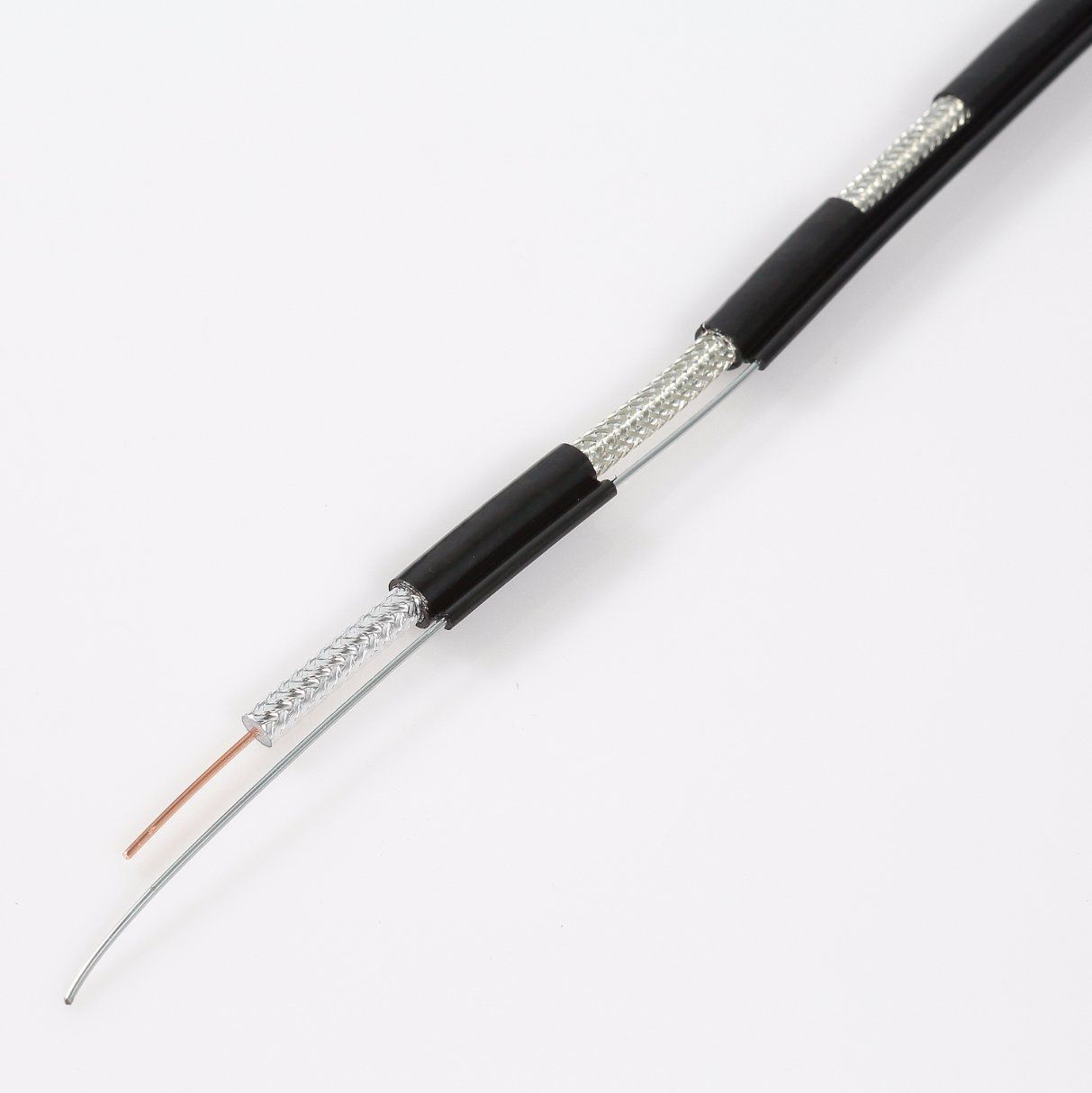

Coaxial Cable Rg59 |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PE |
| Certification: |
RoHS |
| Wire Core Material: |
CCS |
| Brand: |
Jiuxin |
Product Description
1.Product Description
1) Construction
| Center Conductor: | 0.81+0.01mm Solid Copper/Copper Clad Steel |
| Dielectric: | 3.66+0.05mmFoam PE/Solid PE |
| Shield: | Al Foil/Bonded Al Foil |
| Braid Coverage: | 40%-95%Al |
| Jacket: | 6.10+0.10mm PVC |
| Jelly/APD | Per Customers Special Requirement |
| Power cable | 2C*16*0.2mmCCA Power cable |
| Power cable Dielectric | Solid PE 1.85mm |
| Power cable Jacket: | 5.0mm |
2) Characteristics
| Sparker Test: | 4000VAC |
| Impedance: | 75+3 Ohm |
| Capacitance: | 53+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
3) Attenuation
| Attenuation | [@68o F. (20o C.)] |
| Impedance | 75±3 Ohm |
| Capacitance | 16.0pF. /Ft. Nom. |
| Velocity of Propagation | 66.7% |
| Return Loss | 20dB min (5-860MHz) | 15dB min(860-2500MHz). |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.86 | 2.82 |
| 55 | 1.95 | 6.39 |
| 187 | 3.60 | 11.81 |
| 250 | 4.00 | 13.11 |
| 300 | 4.45 | 14.6 |
| 350 | 4.64 | 15.21 |
| 400 | 4.88 | 16.00 |
| 450 | 5.40 | 17.72 |
| 500 | 5.60 | 18.36 |
| 550 | 5.90 | 19.34 |
| 600 | 6.20 | 20.34 |
| 750 | 6.97 | 22.87 |
| 865 | 7.52 | 24.67 |
| 1000 | 8.12 | 26.64 |
One-Jacket Siamese cable consists of two cables: 95 % coverage RG59U video cable and 2 conductor 18 gauge electrical cable all in one PVC jacketed cables. This type cable is great for use with CCTV equipment. All the wires you need to connect your camera are with in one cable. Therefore eliminating the need for two separate cables for the power and video. This cable is easy to run and it will look more esthetic when the installation is complete. It will also save you a considerable amount of time during installation.
2.Packing:
1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
