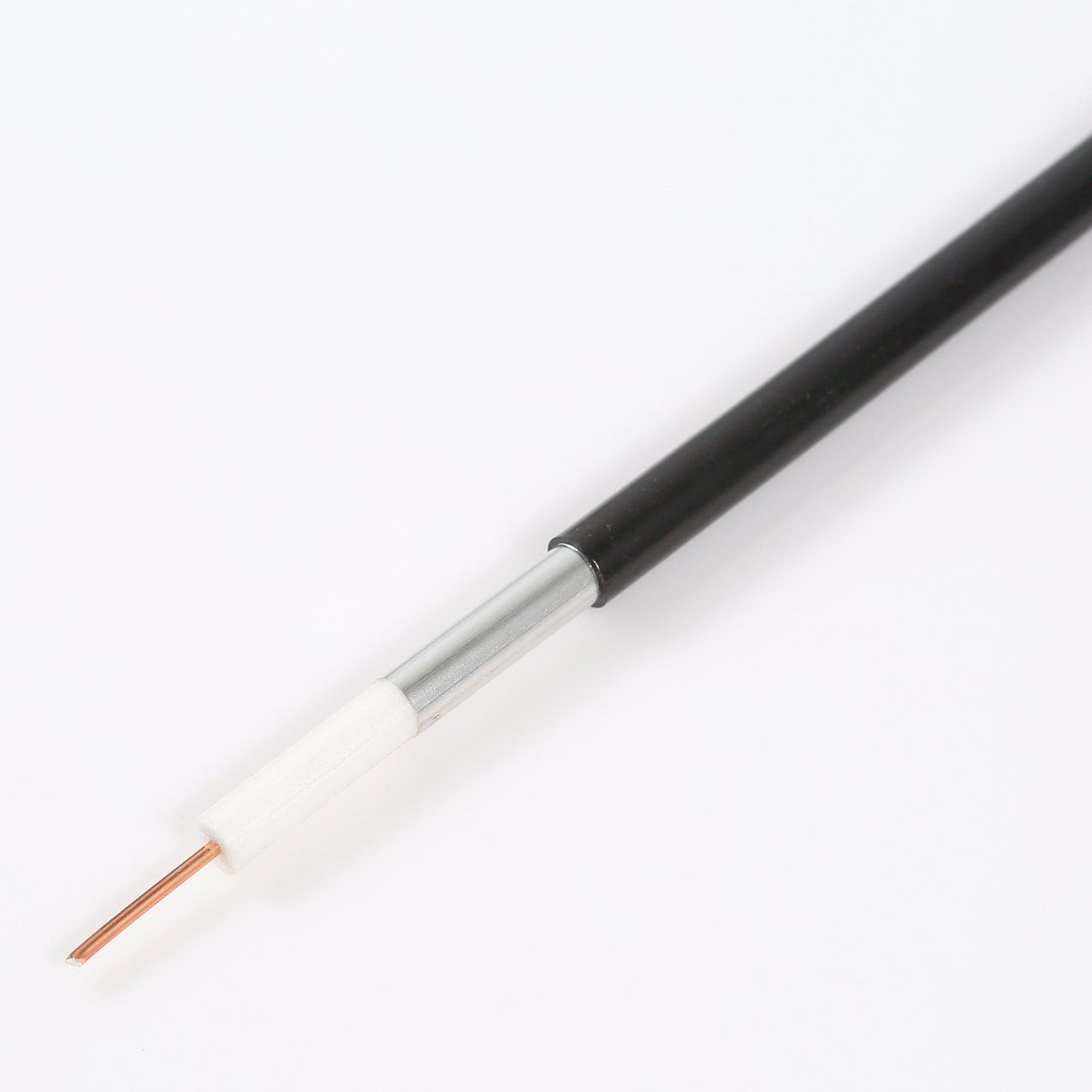

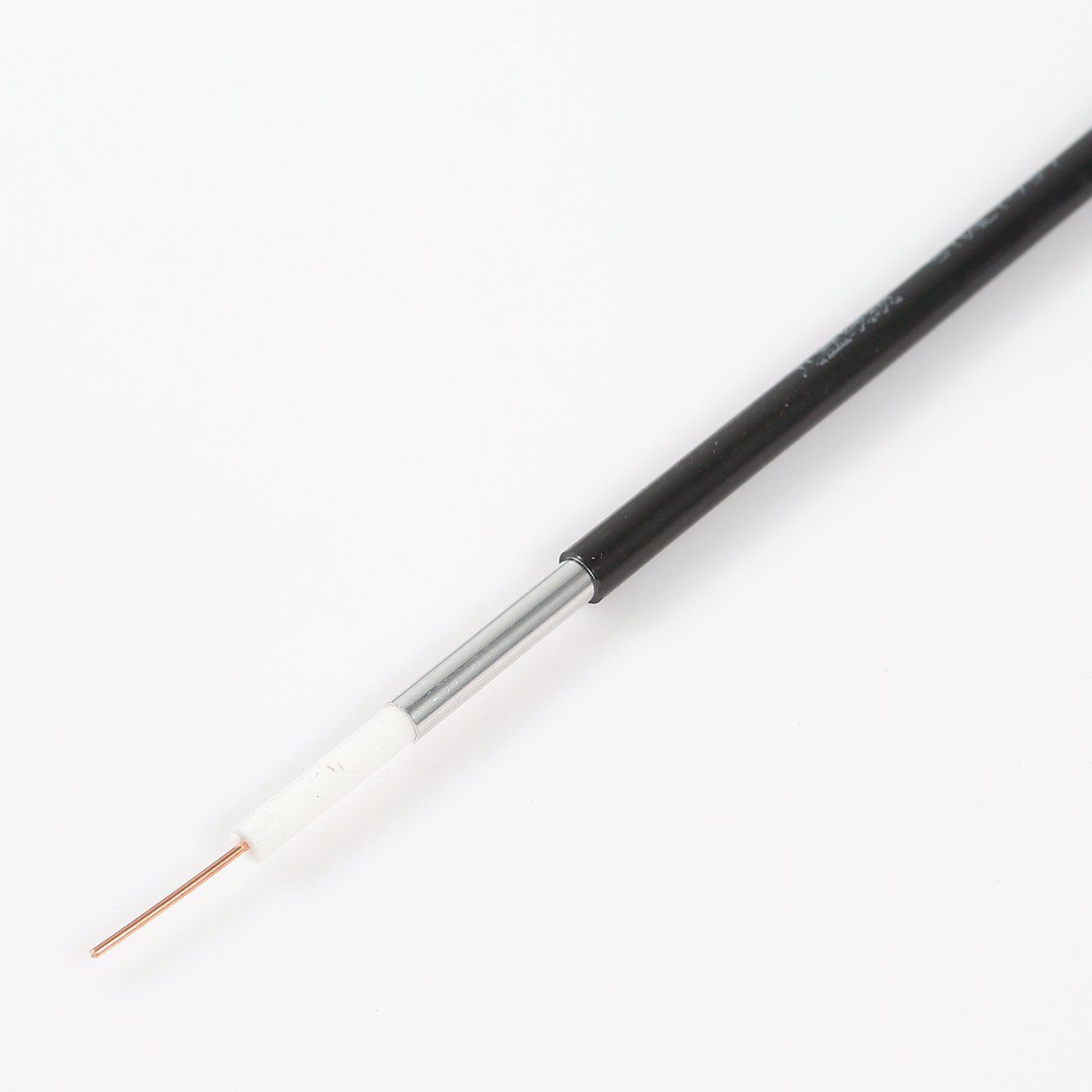

Aluminum Tube Coaxial Cable Qr500 Trunk Cable Ddddd


Cable Date
Conductor: Copper,CCC,CCA , CCS or CCA+CCS;
Diameter Of Conductor: 0.81mm(+/-0.015)×1;
Dielectric:Foamed PE or Solid PE
Shield: AL Foil + Braiding;
Braiding: Tinned copper (TC)
   or Aluminum wire (AL) (L)or Bare copper(BC)
coverage: 28%, 40%, 60%, 80%, 90% and up
Jacket: Black/White/Grey PVC
Braiding:64*0.12mm , 96*0.12mm or 112*0.12mm
Diameter of Sheath:6.15mm.

Specifications:

BC: Bare Copper TC: Tinned Copper CCS: Copper Clad Steel
CCA: Copper Clad Aluminium
1)RG6 Coaxial cable 75ohm standard
0.81mm BC Conductor +4.57mm PE Foam+Non-Bonded /Bonded /Double Al Foil+Al Wire /TC /BC Braiding+6.15mm PVC Jacket
2)RG6 Coaxial cable 75ohm Thi-shielded
0.81mm BC Conductor +4.57mm PE Foam+Non-Bonded /Bonded /Double Al Foil+Al Wire /TC /BC Braiding+Non-Bonded Al Foil+6.15mm PVC Jacket
3)RG6 Coaxial cable 75ohm Quad-shielded
0.81mm BC Conductor +4.57mm PE Foam+Non-Bonded /Bonded /Double Al Foil+Al Wire /TC /BC Braiding+Non-Bonded Al Foil+ Al Wire /TC /BC Braiding+6.15mm PVC Jacket
4) Customers' specifications are welcomed.


Note:
1) Center conductor: TC BC, and CCA available, CCS;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding wire: AL, BC and TC available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or CE,ROHS available.

Characteristics:
 Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min

Application:

Used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

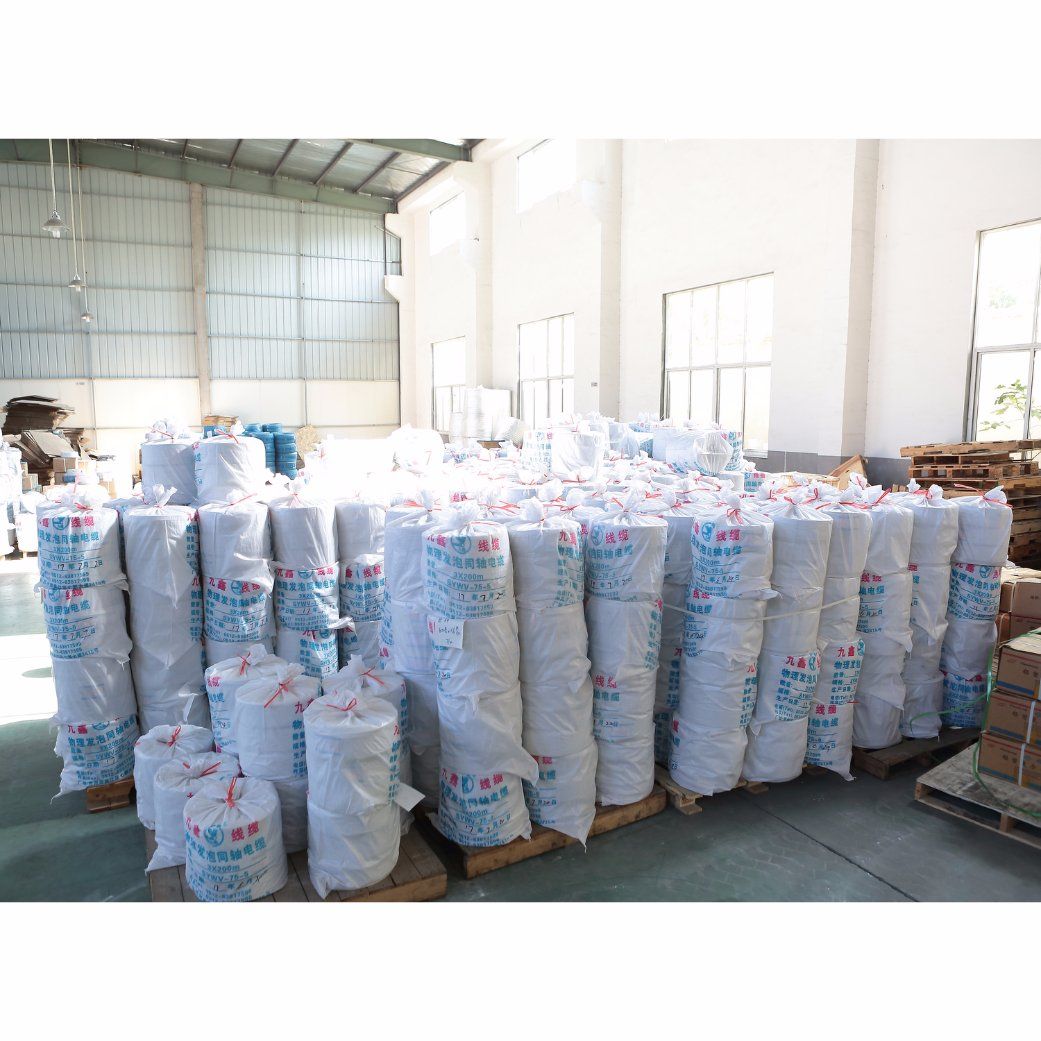

Packing:



1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
