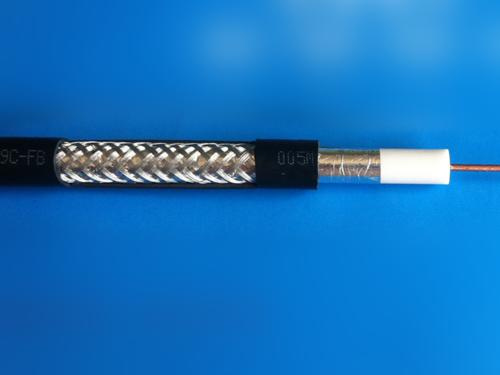

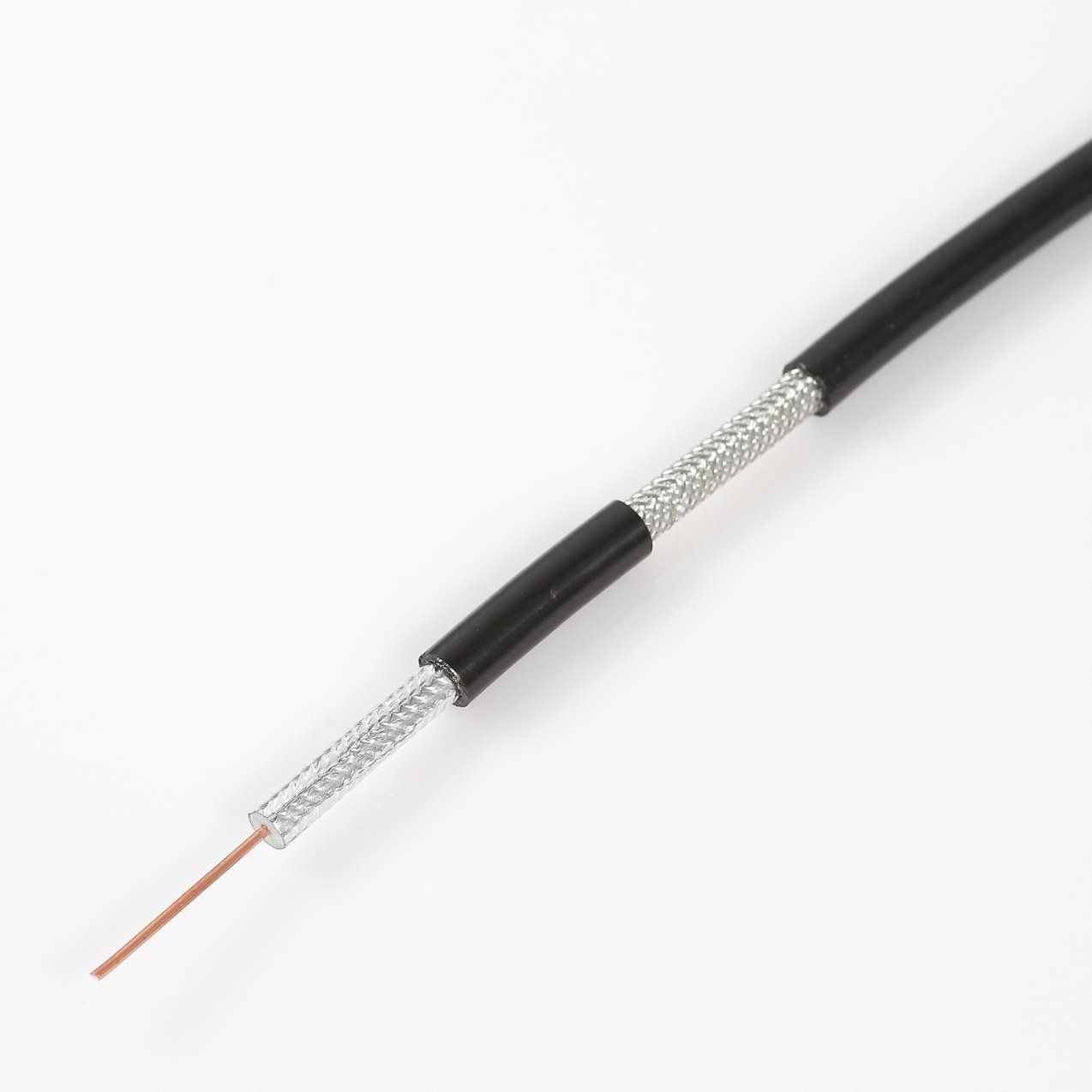

Sywv75-9 PE Coaxial Cable

Prod Model:	SYWV (Y) 75
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Certification:	RoHS
Brand:	Jiuxin

Product Description

                                SYWV75-9 PE Coaxial Cable


The products is manufactured according to the standards of GY/T135-1998. The cables has the low loss, low minimum attenuation properties
The product is mainly applied to the closed-circuit television system, community antenna television system, CATV system brand line and othe eletronic devices below 1GHz
Product Structure

TYPE	Inner conductor		insulation		Outer conductor	Jacket
	Material	diameter	thickness	diameter	Form	Thickness	Diameter
SYWV-75-5	Copper/CCS	1/1.02	1.90	4.8±0.20	Tinned or Alloy Wire	0.88	7.2±0.3
SYWV-75-7	Copper/CCS	1/1.66	2.80	7.25±0.25	Tinned or Alloy Wire	1.05	10.3±0.3
SYWV-75-9	Copper/CCS	1/2.15	3.42	9.00±0.25	Tinned or Alloy Wire	1.15	12.3±0.3


ELectrical properties

Item		SYWV-75-5	SYWV-75-7	SYWV-75-9
Impetance		75±3	75±3	75±3
Capacitance		53.5	52.4	50.8
Dielectric strength		1.6	1.6	1.6
Insulation resistance		5000	5000	5000
Rate		0.80	0.85	0.87
resistanceΩ/km	Bare copper	21.96	8.0	4.8
	CCS	74.12	28.3	-
	Copper cover aluminum	-	-	7.6
Min bending radius(mm)	indoor	3.5	5	12
	outer door	7.0	10	25
Min bending temperature		-15	-15	-15


Application :
 1. Coaxial cable for CATV,CCTV systems
 2. For satellite systems
 3. For security systems

Packing details:
 1. Packing Lengths: 100m/roll, 200m/roll, 300m/roll, 500m/roll.
2. Inner packing: Wooden reel, plastic reel, and paper reel.
3. Outer packing: Carton box, pull out box, pallet available.
4. Other packing available according to client's request.

Question & Answer
 1. What is your MOQ?
Generally, we make mass production based on MOQ 500pcs, single blister packing, since our sub-supplier ask
for 500pcs MOQ for blister. So if bulk package is ok for you, we can accpet lower order quantity.

2. How about your delivery date?
Normally our delivery date is about 25-30days after payment received.

3. Can you supply sample for customer
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.

4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!

About JIUXIN Cable

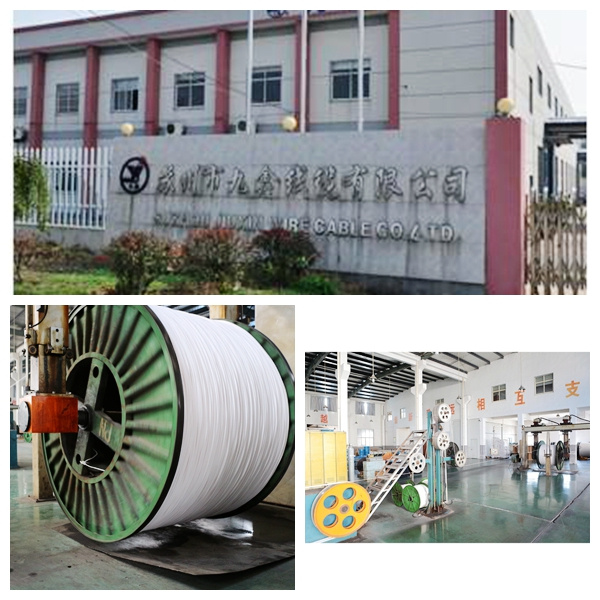

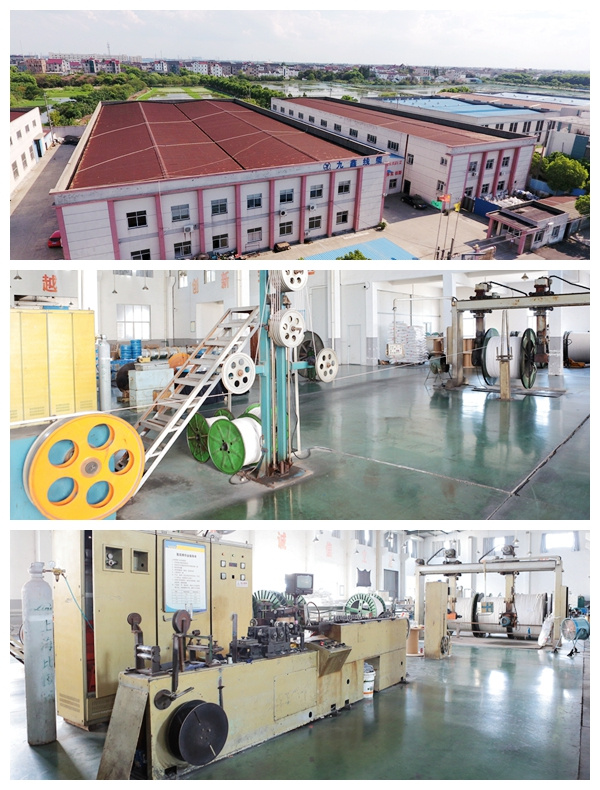

Suzhou Jiuxin Cable Co. Ltd was founded in 2003. is a professional manufacture of coaxial cable. located in Qidu town ,Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.
The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got  SARFT registration certificate and ISO quality system certification.
Providing excellent service to all customers is the basic policy of Jiuxin. With excellence in quality control and the responsibility of management.
