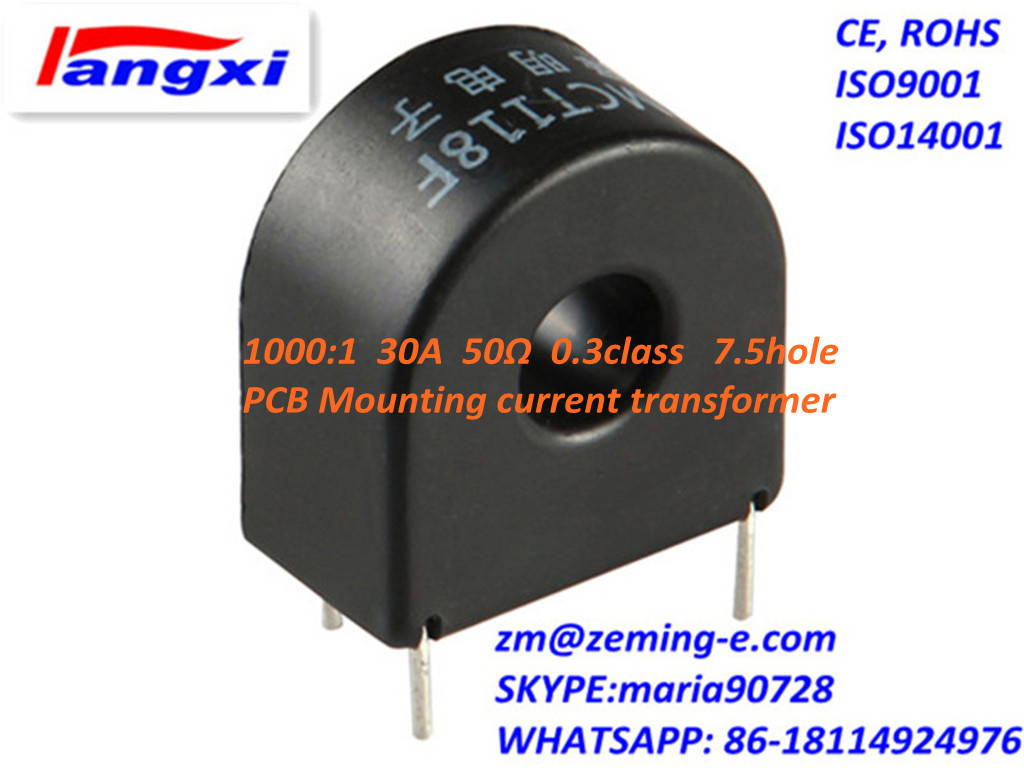

1000: 1 30A 50ohm 0.3class 7.5hole PCB Mounting Current Transformer Zmct118f
| Price: |
US $ 0.309-0.353/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
ZMCT118F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Hole: |
7.5mm |
| Turns Ratio: |
1000:1 |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
| Installation: |
PCB Mounting |
Product Description
ZMCT118F Current Transformer
Features and application: Small size,high accuracy,good consistency,for current and power measurement Structural parameters:

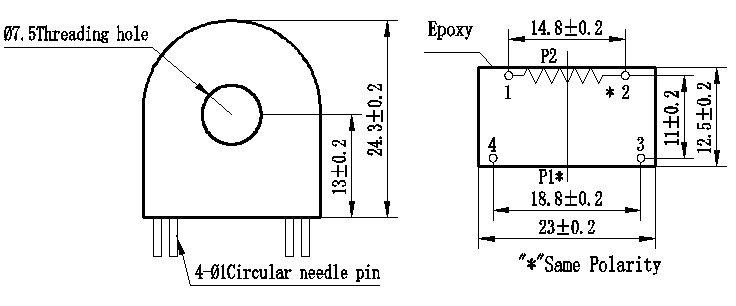

1,2pin: secondary output,3,4pin: empty pin Front view Bottom view The main technical parameters:| model | ZMCT118F |
| input current | 0~30A(sampling resistor 50Ω) |
| Rated output current | 5mA at 5A |
| turns ratio | 1000:1 |
| phase angle error | ≤15'(input 5A,sampling resistor 50Ω) |
| linear range | 0~30A(sampling resistor 50Ω) |
| linearity | ≤0.3%(5%dot~120%dot) |
| Permissible error | -0.3%≤ f ≤+0.3%(input 5A,sampling resistor 50Ω) |
| isolation voltage | 4500V |
| application | Precise measurement of current and power |
| Encapsulation | Epoxy |
| installation | PCB mounting(Pin length>3mm) |
| operating temperature | -40ºC~+85ºC |
Direction for use:

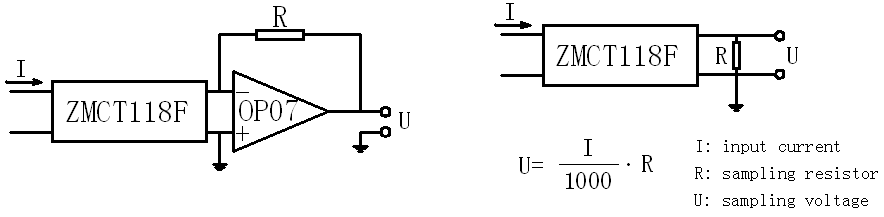

Figure I FigureII 1. ZMCT118F used for measurement. Typical usage is shown in Figure 1 and Figure 2. R is a sampling resistor. 2. Empty pin can not be grounded.
