| Prod Model: |
GWSCTK660A-025 Split transformer |
| Low Cost Split Core Design: |
Safer Easier to Installation |
| Test Standard: |
IEC 60044-1 |
| Operating Temperature: |
-15 to 60 Degree |
| Withstand Voltage: |
3000V AC |
| Output 1A Or 5A Split Application 1: |
Energy, Relay Protection, Power Factor Correction |
| Case Material: |
UL Flame Retardant Rating 94-V0 |
| Current Transformer Features: |
Plit Core Design, Safer, Easier Installation, and |
| Input Primary Current 1: |
100, 150, 200, 250, 300, 400 Output:5 or 1 |
| Input Primary Current 2: |
250A, 300, 400, 500, 600, 750, 800, 1000 |
| Input Primary Current: 4000,5000: |
500A, 600, 750, 800, 1000, 1200A, 1250A |
| Accuracy Grade: |
0.5 1.0 3.0s |
| Application: |
Current, Power, Energy, Monitoring Devices |
Product Description
| |
| TIANJIN GREWIN TECHNOLOGY CO.,LTD. |

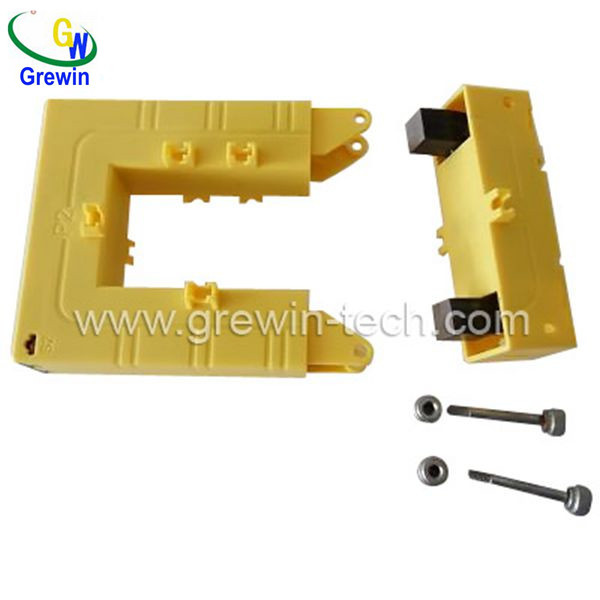

| GWCTSB series split core current transformer |
| Part number | Rated input(A) | Second output | Accuracy class | Frequency(Hz) | OutlineDimensions ID-L-W-H(mm) | Unit weight | Output cable | Product picture |
| GWCTSB0203 | 100,150,200,250,300,400 | 1A 5A | 0.5 1.0 3.0 | 50-400 | 105.0-89.0-40.0 | 0.78kg | wire(1m) | |
| GWCTSB0508 | 250,300,400,500,600,750,800,1000 | 1A 5A | 0.5 1.0 3.0 | 50-400 | 145.0-114-48.0 | 0.9kg | wire(1m) |
| GWCTSB0512 | 600,700,1000,1250,1500,2000,2500,3000 | 1A 5A | 0.5 1.0 3.0 | 50-400 | 192.0-143-49.0 | 2.2kg | wire(1m) |
| GWCTSB0812 | 500,600,750,800,1000,1200,1250,1500 | 1A 5A | 0.5 1.0 3.0 | 50-400 | 185.0-144-48.0 | 1.25kg | wire(1m) |
| GWCTSB0816 | 1000,1200,1500,2000,3000,4000,5000 | 1A 5A | 0.5 1.0 3.0 | 50-400 | 247-176-52.0 | 2.4kg | wire(1m) |
| GWCTSB Series Split Core Current Transformer (Specifications) |
| Rated Primary current | 100-5000Aac |
| Rated Secondary current: | 5 or 1Aac |
| Rated load | 1, 2.5, 5.0, 10, 30VA |
| Accuracy | 0.5, 1.0, 3.0 Class |
| Rated Short-time thermal current (Ith) | 20In |
| Rated Dynamic current (Idyn) | 2.5Ith |
| Case Material | UL flame retardant rating 94-V0 |
| Highest Voltage for Equipment Um (rms) | 720 Vac |
| Rated Power-Frequency Withstand Voltage(rms) | 3,000 Vac |
| Frequency Range: | 50/60Hz |
| Operating Temperature | -15ºC to 50ºC |
| Standard | IEC 60044-1 |
| Accessories | Supplied with feet for base mounting if required |
| Certification | RoHS compliant CE&ETL approved |
| GWCTSB Series Split Core Current Transformer (Features) |
| Low cost |
| 5 standard sizes |
| Split core design, safer, easier installation, and portable |
| GWCTSB Series Split Core Current Transformer (Applications) |
| Current, power, energy, monitoring devices |
| Relay protection devices |
| Power Factor Correction devices |
Output secondary 5A split core current transformer :
Model 1:
GWCTSB0203
Turn ratio: 100:5A 150:5A 200:5A 250:5A 300:5A 400:5A current transformer China
Model 2:
GWCTSB0508
Turn ratio:250:5A 300:5A 400:5A 500:5A 600:5A 750:5A 1000:5A split core transformer
Model 3:
GWCTSB0512
Turn Ratio:600:5A 750:5A 1000:5A 1250:5A 1500:5A 2000:5A 3000:5A current CT
Model 4:
GWCTSB0812
Turn ratio: 500:5A600:5A 750:5A 1000:5A 1250:5A 1500:5A split core China
Model 5:
GWCTSB0816
Turn Ratio:500:5A 600:5A 750:5A 1000:5A 1250:5A 1500:5A high quality split core current transformer with ROHS ,ETL approval.
Output secondary rated 1A split transformer :
Model 1: GWCTSB0203
Turn ratio :100:1A 150:1A 200:1A 250:1A 300:1A 400:1A split core CT
Model 2: GWCTSB0508
Turn ratio: 200:1A 300:1A 400:1A 500:1A 600:1A 750:1A 1000:1A
Model 3: GWCTSB0512
Turn Ratio:500:1A 600:1A 750:1A 1000:1A 1250:1A 1500:1A 2000:1A 3000:1A
Model No.: GWCTSB0812
Model No.GWCTSB0816
Turn ratio: 600:1A 750:1A 1000:1A 1250:1A 1500:1A 2000:1A 2500:1A 3000:1A 4000:1A split transformer ETL made in China

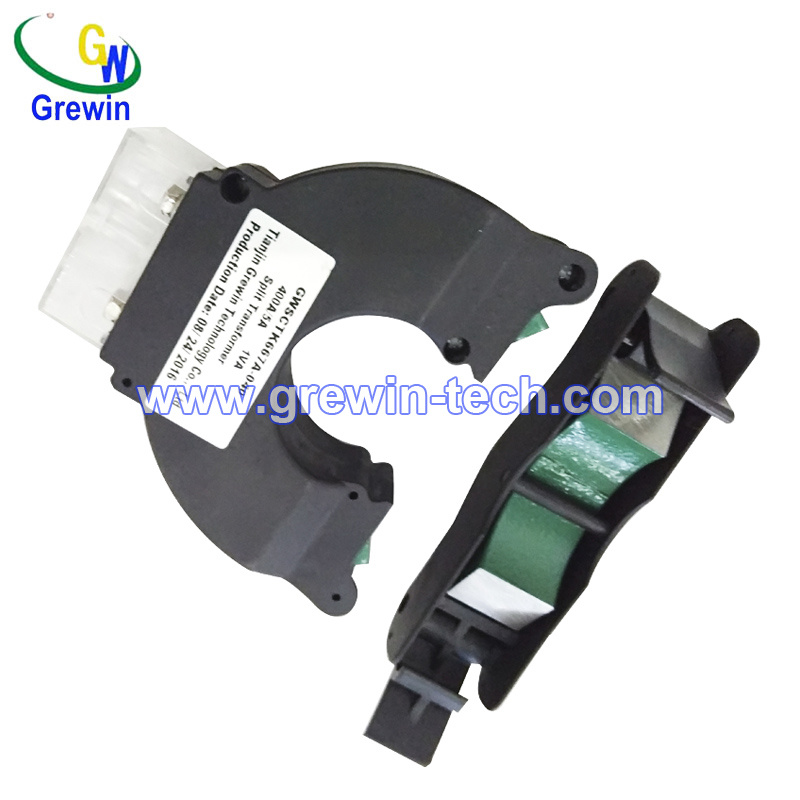

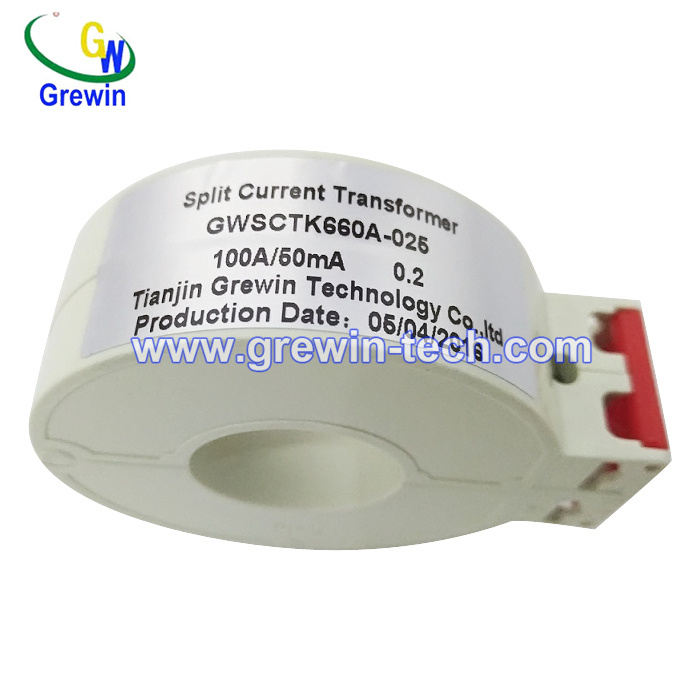

Another spilt core transformer model : GWSCTK660A-025 Split current transformer :
Application: current measurement,monitoring and protection for electrical wiring and Equipment for motors and air compressor ,heating etc.
Parameters :
1.Models No.
2.Or accuracy ,rated output voltage andcurrent;
3.frequency and dimension.
4.Order qty/batch
5.Samples qty
Thank you for your understand and support
