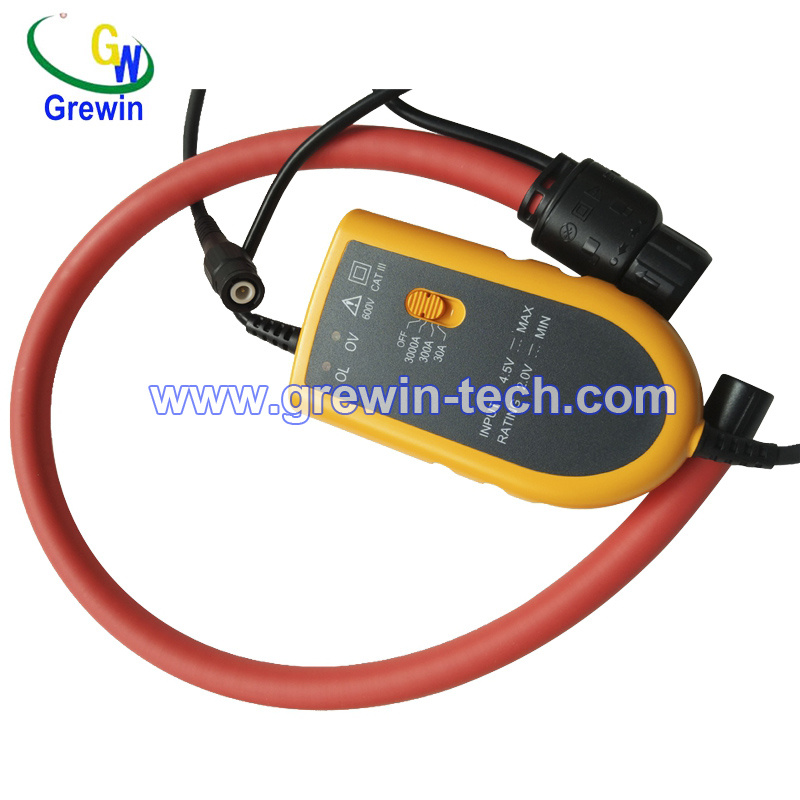

Flexible Rogowski Current Transformers

Name: Flexible Rogowski Current Transformers
Brand: all-electronics-online.com
SKU: 717781722
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

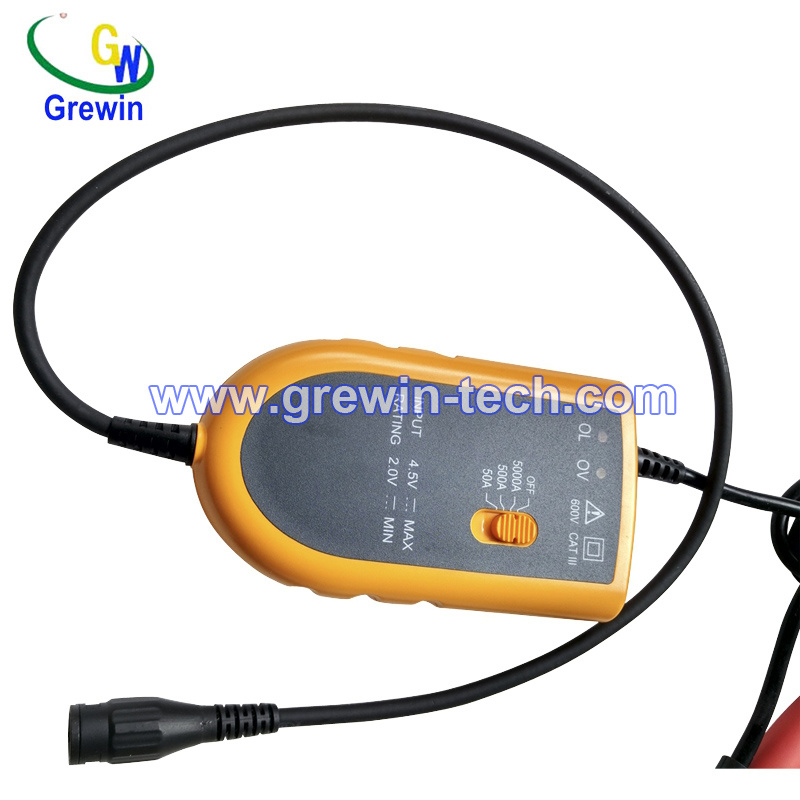

Tianjin Grewin Technology Co.,ltd. Clamp-on Flexible Rogowski coil current transformer' are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.
1. Features:
Flexible and light weights_
Easy & quick installation in tight spaces
No danger from open-circuited secondary
No core saturation or damage if overloaded
excellent linearity
Multi- size are available
2. Applications:
Power quality monitoring
Power meters
Smart logger
Energy sub-meters
Distributed measurement systems
3.Note: we-Grewin Manufacture can produce current transformer,split core CT,clamp on sensors, toroidal CT, minature CT, Flexible Rogowski coil with excellent performance. We have recieved IEC,ROHS,CE standard.

_{CONTACT INFO:}
TIANJIN GREWIN TECHNOLOGY CO.,LTD
Add:Meinian Plaza.No.16 Dongting Road,Hexi Distr,Tianjin,China .
Tel: +86-22-84943756

Web: www.grewin-tech.com

Mobile:+86-13072088960

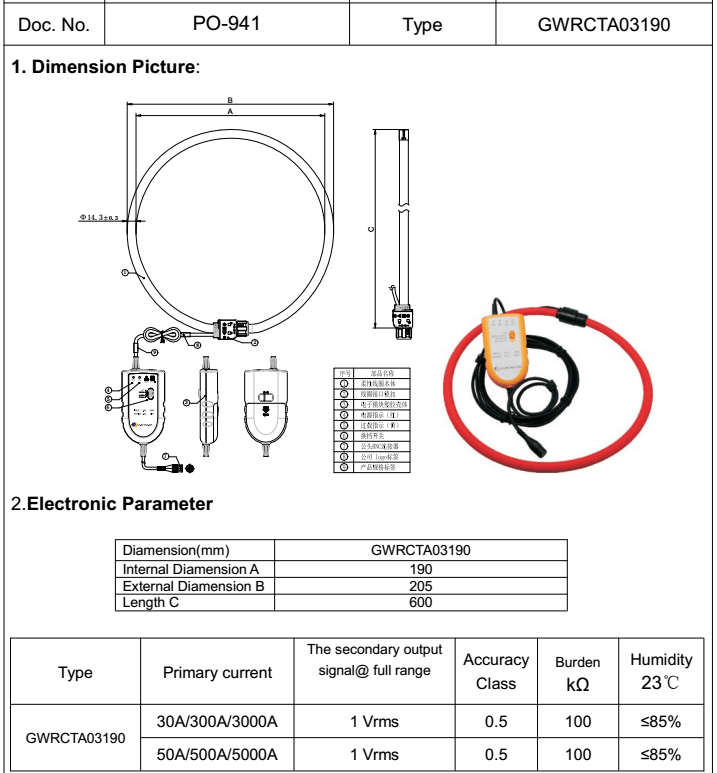

Prod Model:	GWRCTA3190, GWRCT02-190
Max Output:	3.0V AC Max
Trade Mark:	Tianjin Grewin
Standards Safety:	IEC, ISO9001, RoHS
Current Range:	10A ~30ka / 10A ~6000A
Frequency:	25-20k Hz 45-600Hz
Accuracy:	<1%(45-65Hz)
Power Supply:	10-30VDC, 30mA Max.
Application:	Power Quality Monitoring
Type:	Current Transformer
Phase:	Single

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.
