Flexible Rogowski Meter

Name: Flexible Rogowski Meter
Brand: all-electronics-online.com
SKU: 726216042
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	US $ 115.4-130.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

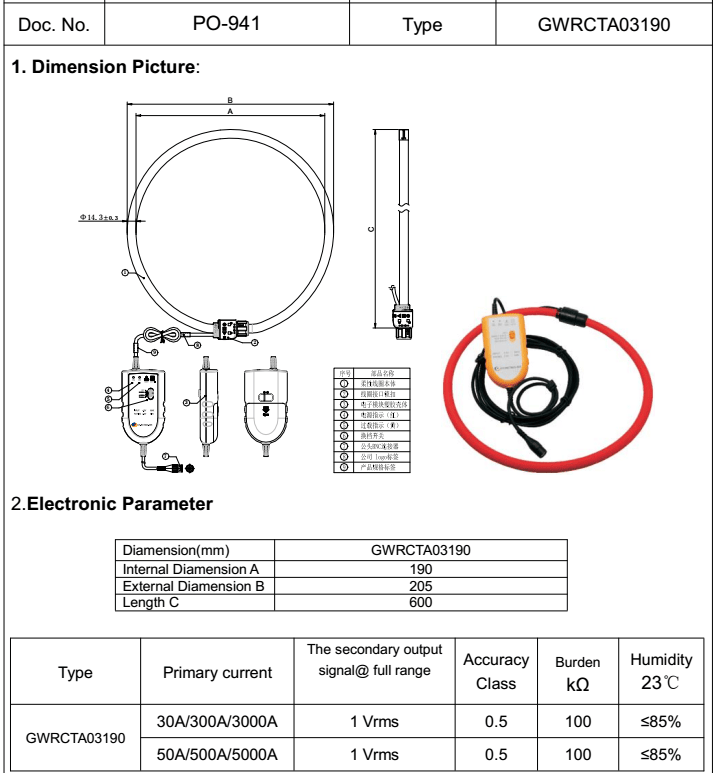

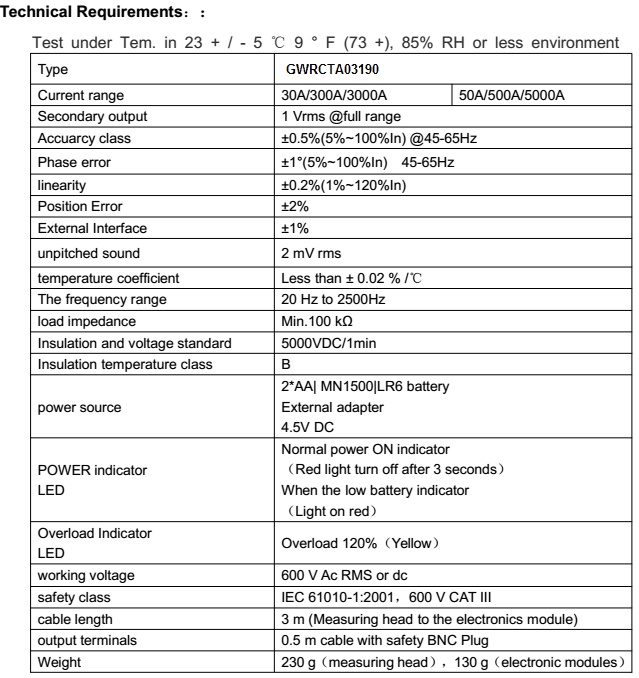

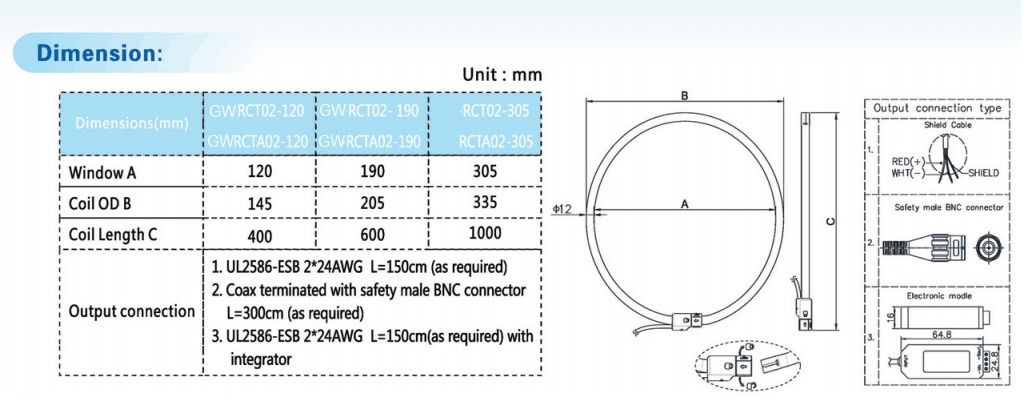

Max Output:	3.0V AC Max
Trade Mark:	Tianjin Grewin
Standards Safety:	IEC, ISO9001, RoHS
Current Range:	10A ~30ka / 10A ~6000A
Frequency:	25-20k Hz 45-600Hz
Accuracy:	<1%(45-65Hz)
Power Supply:	10-30VDC, 30mA Max.
Application:	Power Quality Monitoring
Type:	Current Transformer
Phase:	Single

Product Description

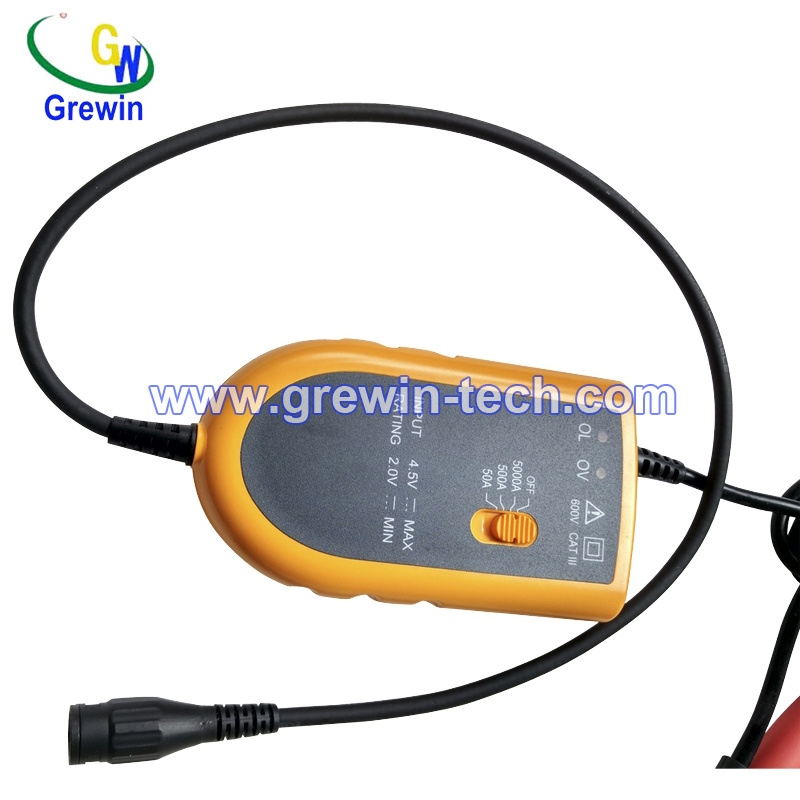

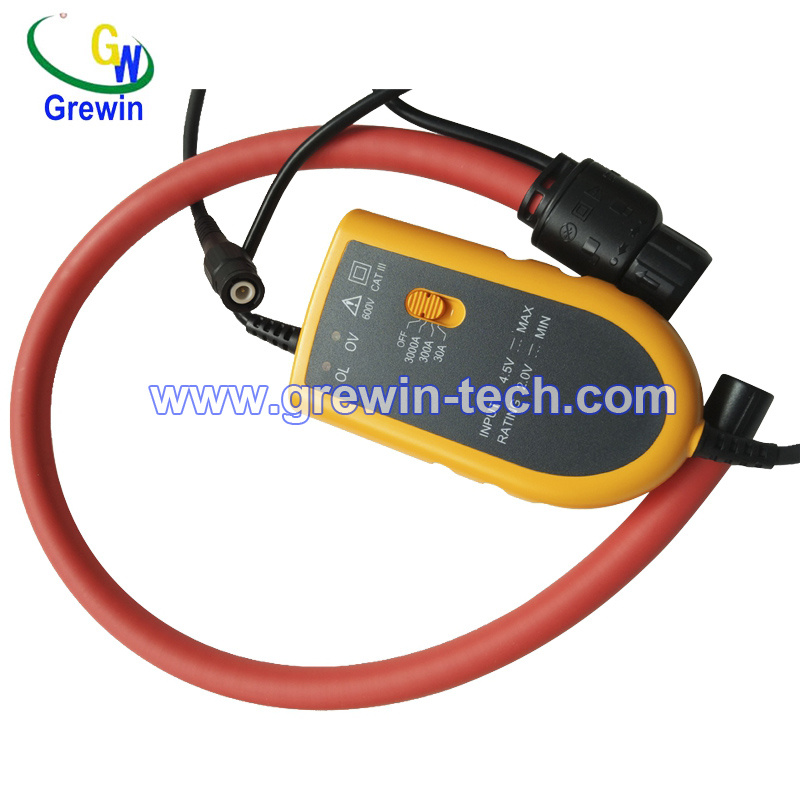

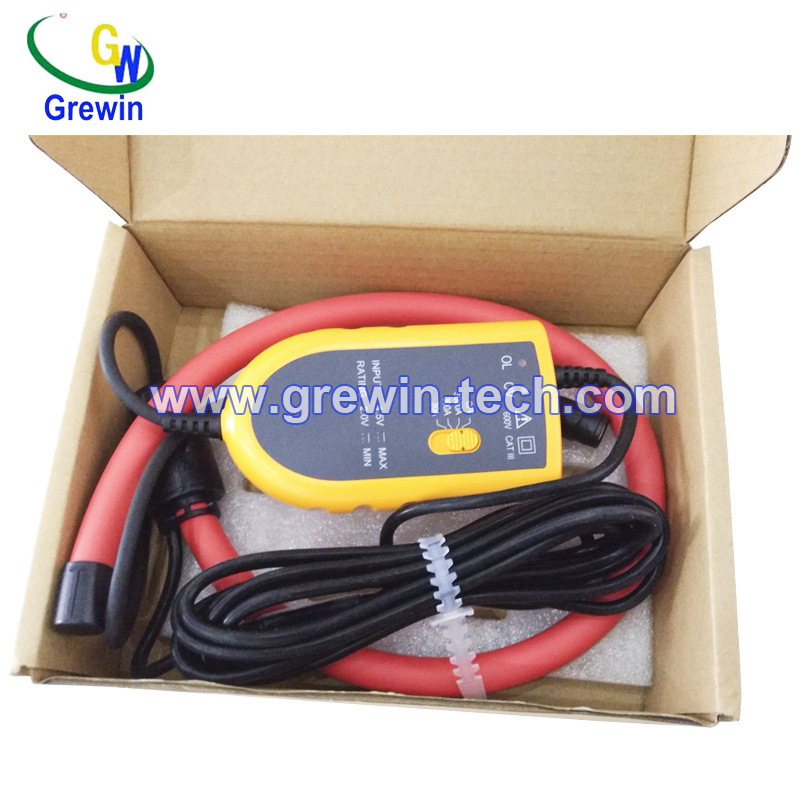

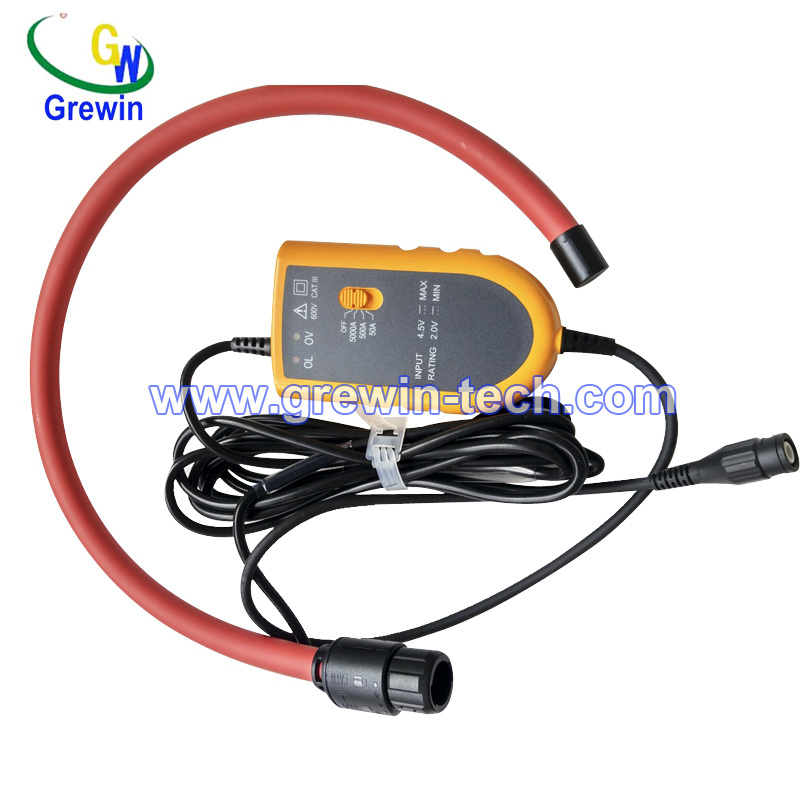

Tianjin Grewin Technology Co.,ltd. Clamp-on Flexible Rogowski coil current transformer' are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.

1. Features:
Flexible and light weights_
Easy & quick installation in tight spaces
No danger from open-circuited secondary
No core saturation or damage if overloaded
excellent linearity
Multi- size are available
2. Applications:
Power quality monitoring
Power meters
Smart logger
Energy sub-meters
Distributed measurement systems
3.Note: we-Grewin Manufacture can produce current transformer,split core CT,clamp on sensors, toroidal CT, minature CT, Flexible Rogowski coil with excellent performance. We have recieved IEC,ROHS,CE standard.

Contact info:
_{Tianjin Grewin Technology Co.,Ltd.
www.grewin-tech.com}

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.

Contact Information:

Tianjin Grewin Technology Co., Ltd.

TEL: +86 22 84943756

Web: www.grewin-tech.com
