Prod Model: |
FTSM |
Name: |
Moulded Case ATS |
Standard: |
GB/T 14048.11 |
Transfer Time: |
≤3s |
Controling Voltage: |
AC230V |
Rated Insulation Voltage: |
AC500V/AC800V |
ATS Level: |
CB Class |
Use Category: |
AC-33ib |
Protection Level: |
IP30 |
Material: |
Plastic,Copper,Iron |
Color: |
White |
Product Description

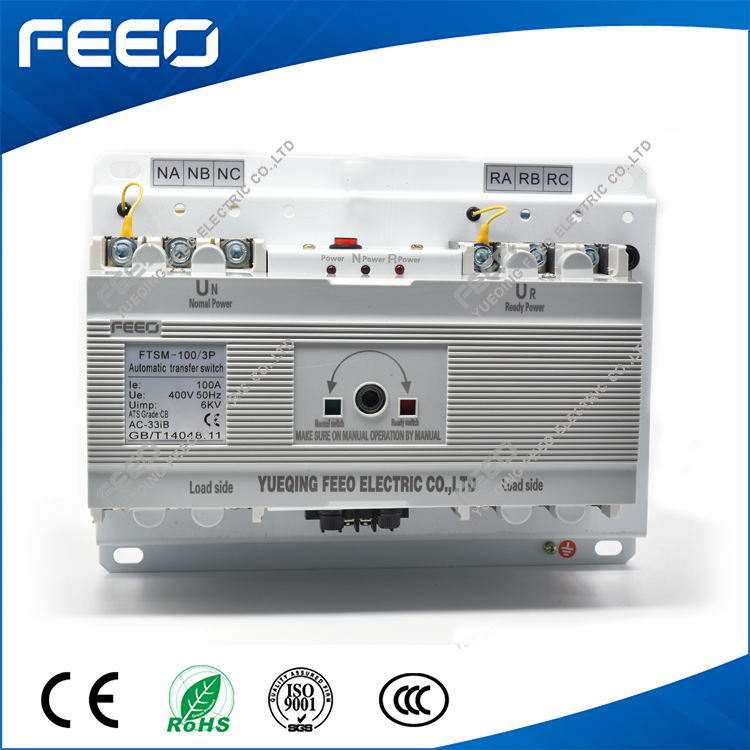

100a Automatic Transfer Switch moulded case ATSProduct Description:moulded case ATS Structure and Features:

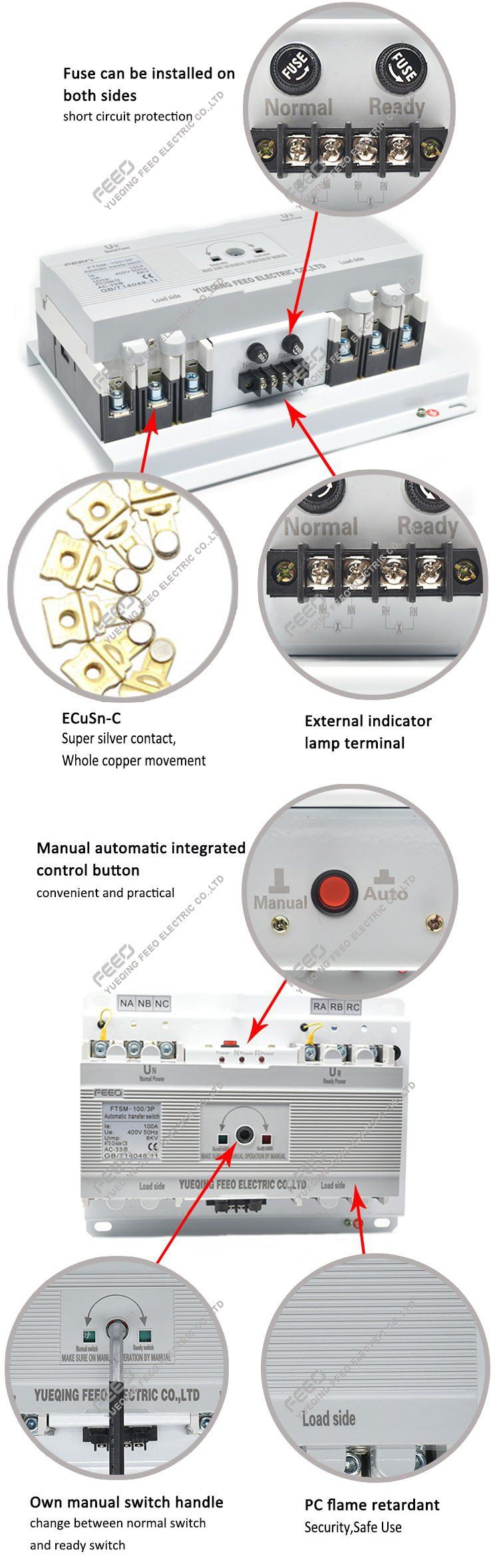

FTSM series automatic transfer switch are mainly composed of power conversion actuator, circuit breaker and controller. This dual power switch with automatic, manual, power indicator, normal switch indicator, ready switch indicator working state. Switch's features are small volume, long life, low power consumption, light weight, stable work, easy to use and so on.
moulded case ATS Technical Date:
Model | FTSM-63 | FTSM-100 | FTSM-225 | FTSM-400 | FTSM-630 |
standard | GB/T 14048.11 |
Electrical characteristic parameter | |
Shell Frame Current | 63A | 100A | 225A | 400A | 630A |
Rated Current(A) | 10, 16, 20, 25, 32, 40, 50, 63 | 25, 32, 40, 50, 63, 80, 100 | 100, 125, 140, 160, 180, 200, 225 | 225, 250, 315, 350, 400 | 400, 500, 630 |
Rated operating voltage(Ue) | AC400V 50Hz |
Rated insulation voltage(Ui) | AC500V | AC800V | AC800V | AC800V | AC800V |
Rated impulse withstand voltage(Uimp) | 6KV | 8KV | 8KV | 8KV | 8KV |
Switching Poles | 3P, 4P |
Life | 6000 | 6000 | 6000 | 4000 | 3000 |
Use Category | AC-33iB |
Electrical level | CB Class |
Protection level | IP30 |
Control characteristic parameter | |
Rated control supply voltage(Us) | AC230V 50Hz |
Switching time | ≤3s | ≤3s | ≤3s | ≤4s | ≤4s |

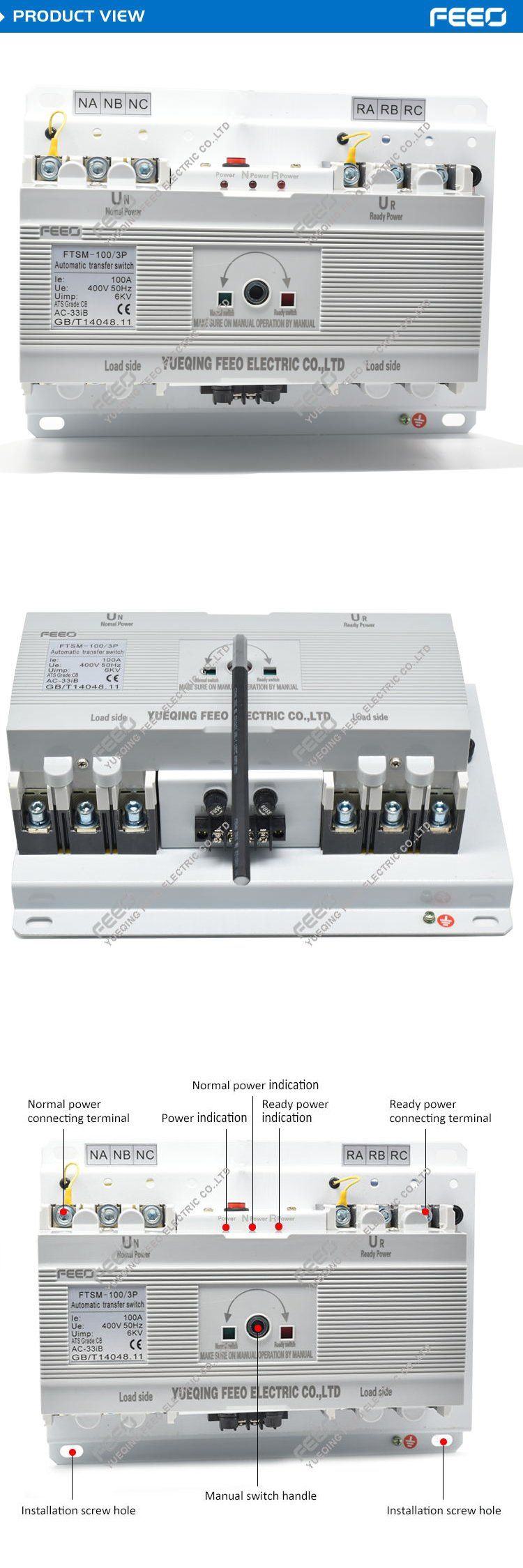

moulded case ATS Pictures Show:
moulded case ATS Operation:

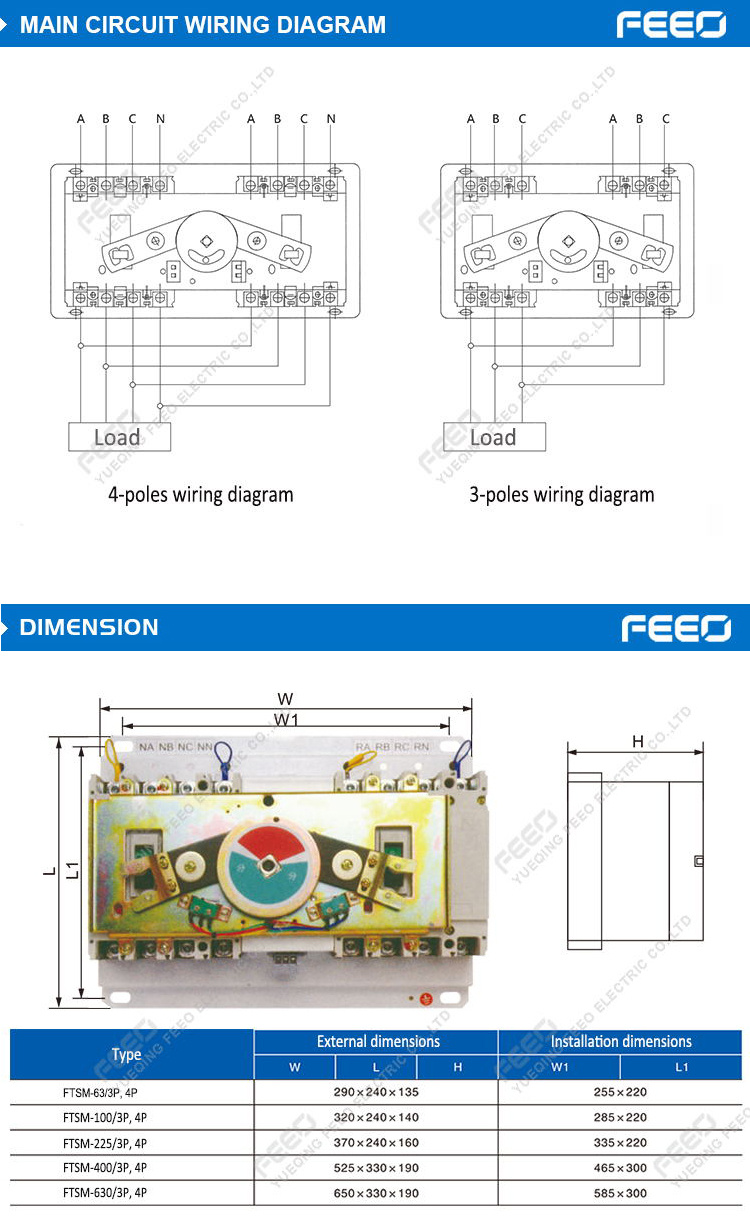

When installing wiring, normal power N should be access to normal power supply circuit breaker QN, ready power R should be access to ready power supply circuit breaker QR. When QN and QR is 4 poles circuit breaker, wiring mode according to the wiring diagram, which QN and QR's 1, 3, 5 are three-phase (A, B, C) into line terminals, 2, 4, 6 are three-phase outgoing line terminals, 7 is zero line (N) into line terminal, 8 is zero line outgoing line terminal. If the use of 3 poles circuit breaker, the normal power N's zero line (NN) and ready power R's zero line (NR) must be respectively received on 3 poles special connection zero line terminal. Specific see wiring diagram. Dual power transfer switch automatic controller's work power supply circuit breaker QN and QR's into line terminal A and zero line N, in the automatic power switch installation, wiring process, Do not let the local controller to forget to connect the signal line, touch off or short circuit and so on, otherwise can not work.

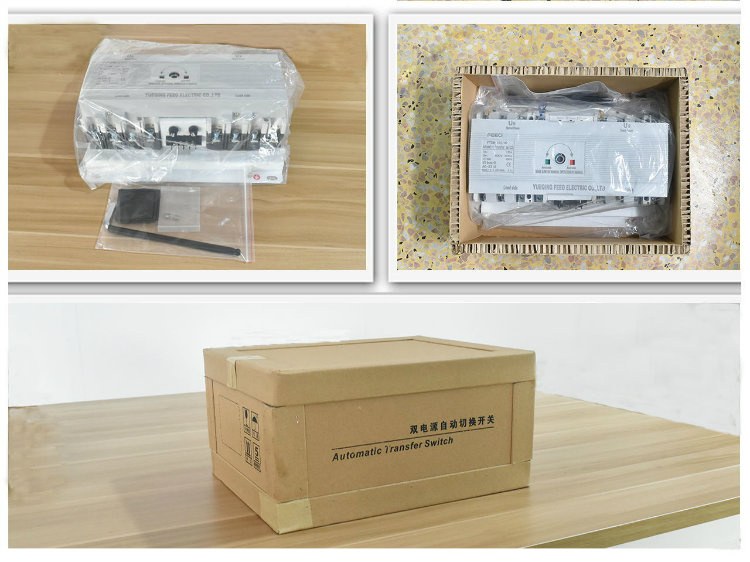

Packaging & Shipping:moulded case ATS Packing:1. Standard export box package;
2. Delivery Time: 10-15 days for batch goods.
moulded case ATS Shipping:1. Shipment port:SHANGHAI/NINGBO;
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Our Services:
1. One to one service,Feedback within 24 hours
2. Design for special packing, Products printing and logo OEM
3. Find the solution for any problems actively
Company Information:
FAQ:Q: If I'm interested in your moulded case ATS when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your moulded case ATS seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our moulded case ATS are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your moulded case ATS quality?
A:Of course!We also think sample order is the best way to build the trust.
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 10~15days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your moulded case ATS?
A:We offer two year warranty for our customer.
