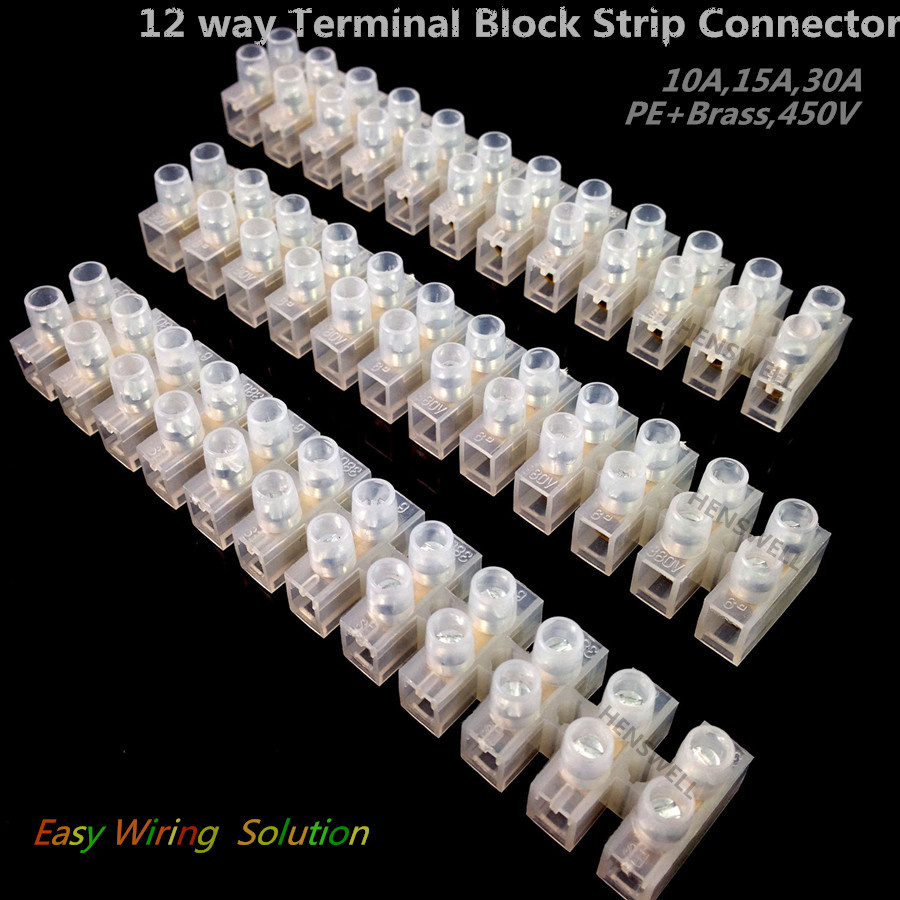

10A, 15A, 30A 12 Way PE Double Row Screw Terminal Strip

Name: 10A, 15A, 30A 12 Way PE Double Row Screw Terminal Strip
Brand: all-electronics-online.com
SKU: 826939285
Availability: InStock
Rating: 4.4 (37 reviews)

Price:	US $ 0.15-2.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

General Introduction :
1. European style 12 position barrier terminal connector strip
2. thermoplastic housing materials
a. made of PE (polyethylene) ,see-through natural color ,flexible ,-40ºC-65ºC working temperatur
b. made of PA (polyamide), self-extinguish, impact resistance,-30ºC-110ºC working temperatur
3. current carrier is made of brass, annealing and acid-cleaning pretreated
4. 24 screws are steel material, zinc electroplated
5. cost effective wiring and connection solution ,easy to cut to desired number poles
6. plastic base are H (rectangle) shape and U (round ,curved) shape

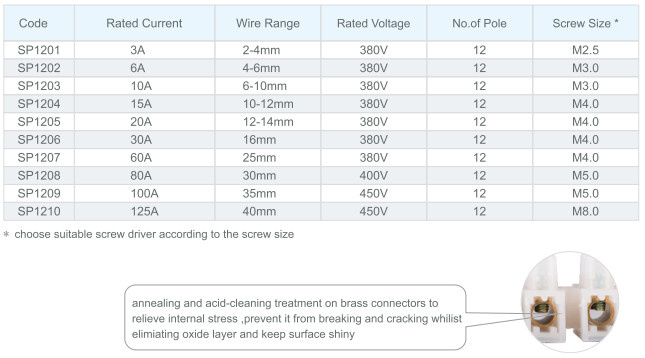

Specification:
3A (2-4mm wring range) to 125A (40mm) , 450V

Remark :
1. payment term: 30% T/T in advance, balance paid against the B/L copy ; L/C at sight
2. lead time: from 3 weeks to 6 weeks generally

Service Points:
1. quick and professional response within 24 hours
2. detailed quotaion sheet including image,description,packing list in form of PDF, Excel or JPG.
3. samples provided free of charge generally
4. keep you informed of process of production and shipment by means of data and pictures
5. package image design by use of main software like coredraw, photoshop
6. carefully designed with 2D and 3D software before physical mould-making for new products

Other terminal connectors to recommend:

Prod Model:	SP12
Approval:	Ce
Standard:	European Standard, IEC60947
Material:	Thermoplastic Housing
Color:	Natural Color ,Black or Other Color Customized
Number Of Pole:	12 Poles
Number Of Screw:	24 Screws
Materials:	PE or PA+ Brass Terminal + Galvanized Steel screw
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Application:	Electrical Wiring and Connection
Connection Mode:	Screw Connection
