8 Position Single Row Brass Terminal Strip

Name: 8 Position Single Row Brass Terminal Strip
Brand: all-electronics-online.com
SKU: 826980895
Availability: InStock
Rating: 4.9 (130 reviews)

Price:	US $ 2-5.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

General Introduction :
1. sngle Row 8 position barrier terminal connector strip
2. insulated housing materials is PA (polyamide), self-extinguish, impact resistance,-30ºC-110ºC working temperatur
3. current carrier cage and screws are made of brass, annealing and acid-cleaning pretreated
4. heavy duty wiring and connection solution for electrical power equipment ,such as distribution board,

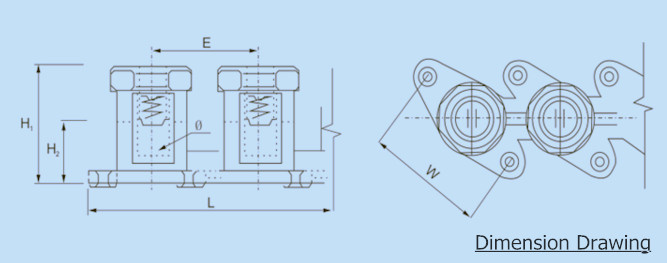

Specification:

Code	Wiring Range	L	W	H1	H2	E	θ
Code	Wiring Range	mm	mm	mm	mm	mm	mm
SP081	16mm²	173	26.3	25.0	12.1	21.0	M8x5
SP082	25mm²	206	31.2	26.0	13.1	24.8	M9x6
SP083	35mm²	251	41.5	33.0	17.3	30.3	M12x8
SP084	50mm²	260	42.0	34.0	17.3	32.0	M14x8.5
SP085	70mm²	271	43.5	38.0	21.5	33.2	M16x9

Remark :
1. payment term: 30% T/T in advance, balance paid against the B/L copy ; L/C at sight
2. lead time: from 3 weeks to 6 weeks generally

Service Points:
1. quick and professional response within 24 hours
2. detailed quotaion sheet including image,description,packing list in form of PDF, Excel or JPG.
3. samples provided free of charge generally
4. keep you informed of process of production and shipment by means of data and pictures
5. package image design by use of main software like coredraw, photoshop
6. carefully designed with 2D and 3D software before physical mould-making for new products

Other terminal connectors to recommend:

Prod Model:	SP08
Approval:	Ce
Standard:	European Standard, IEC60947
Color:	Gray / Blue / White
Number Of Pole:	8 Poles
Number Of Screw:	8 Screws
Materials:	PA Insulated Housing+Brass Screw
Contact Termination Form:	Screws Fixed
Application:	Electrical Wiring and Connection
Connection Mode:	Screw Connection
