10A 3p LED Screen Specialized Powercon Adapter Waterproof Connector

Name: 10A 3p LED Screen Specialized Powercon Adapter Waterproof Connector
Brand: all-electronics-online.com
SKU: 807402275
Availability: InStock
Rating: 4.5 (128 reviews)

Price:	US $ 0.9-1/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

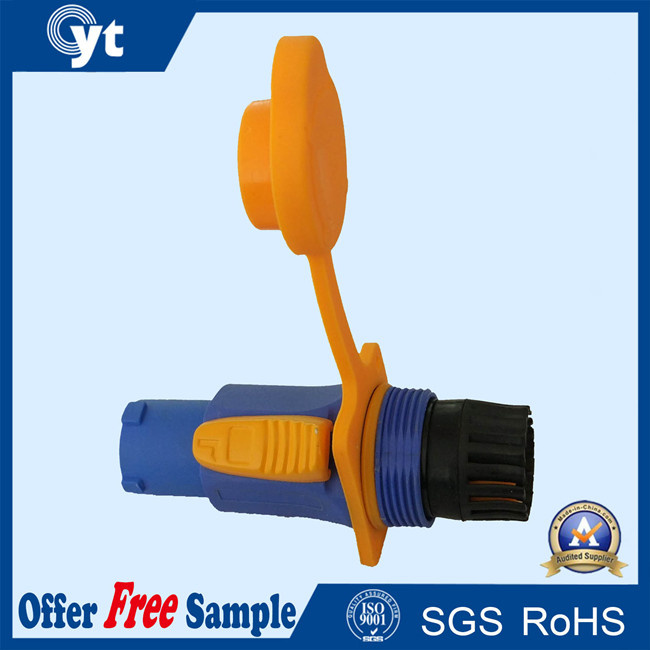

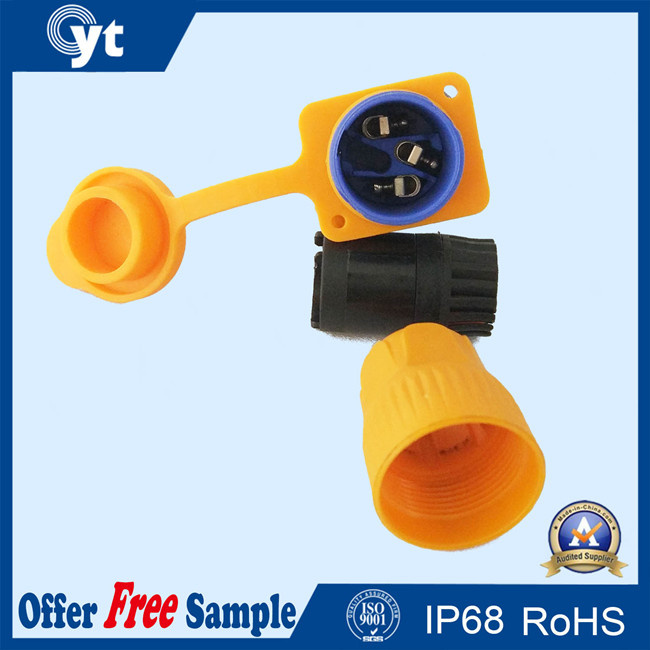

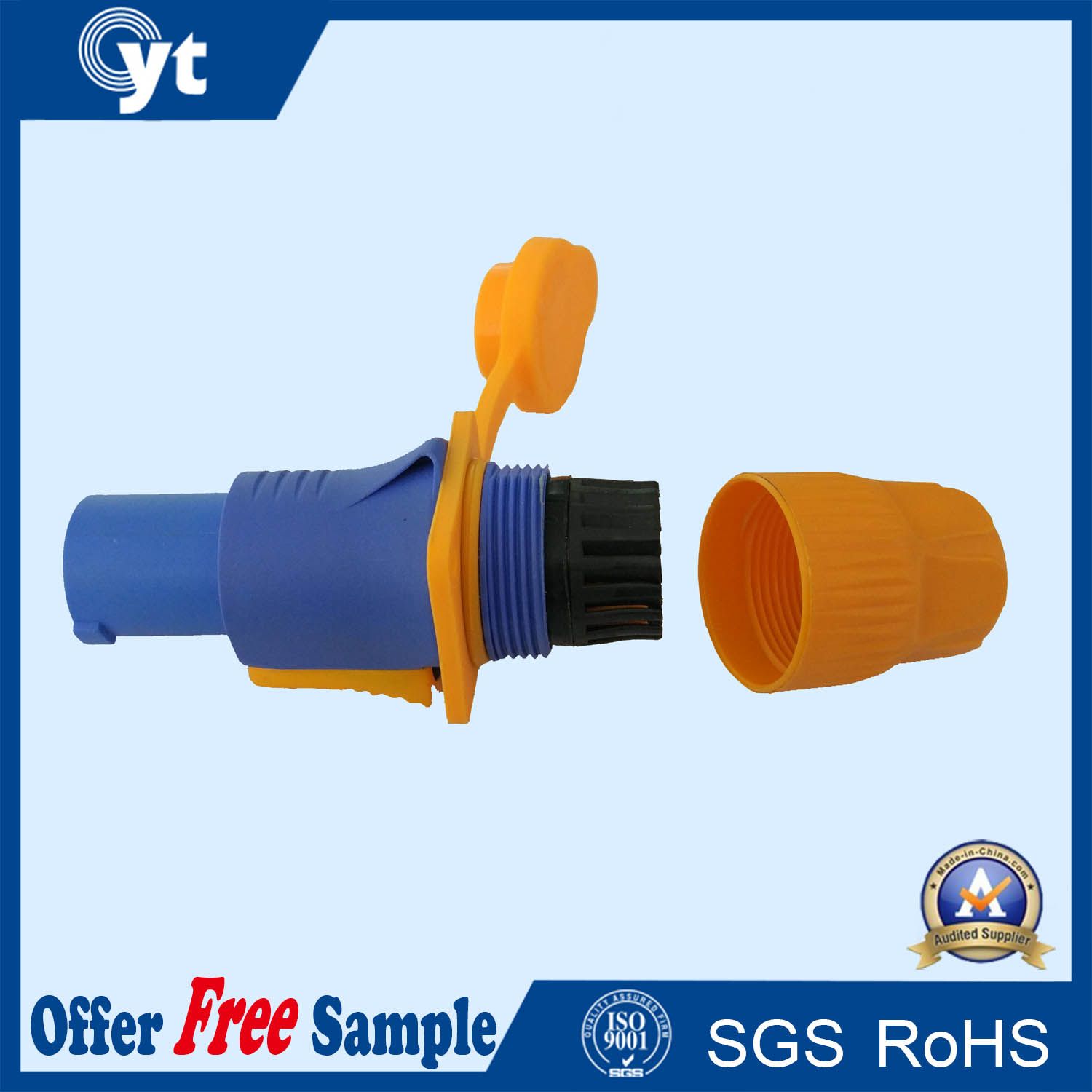

10A 3p LED Screen specialized powerCon Adapter waterproof connector

Lockable cable connector, power-in, screw terminals, blue
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features:

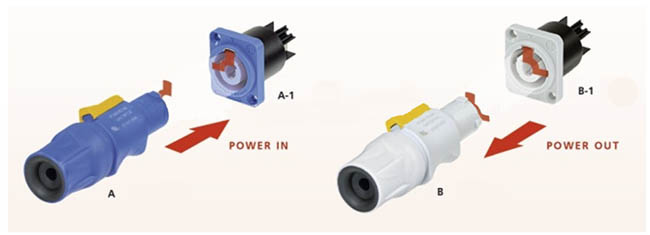

Power-in and power-out versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
Unique Neutrik chuck type strain relief
Improved kink protection by two-component bushing

1	Model No.	CYT022C
2	Material	Connector Body	yellow and blue
3		Contact	Brass
4		Sealing	PVC or PE
5	Property	Current Rating	5 A
6		Voltage Rating	120~250V
7		Contact Resistance	<3mΩ
8		Insulation Resistance	>0.1MΩ
9		Breakdown Voltage	1.5KV/1minute Moist
10		Temperature Rating	-30°C~+105°C
11		Durability(Plug/Unplug)	3000 times
12		Waterproof Rating	IP66/67/68
13		Pins Range	2~6

Prod Model:	CYT022C
Color:	White or Customized
Number Of Electronical Contacts:	2 + PE
Durability(Plug/Unplug):	3000 Times
Current Rating:	5A
Voltage Rating:	120~250V
Insulation Resistance:	> 0.1 G Omega
Dielectric Strength:	4 Kvdc / 2.8 Kvac

We are a professional producer on waterproof cable for LED lighting goods, all kinds of lamps's cable, AC power wire, DC wire, tube wire, communication's cable, wire harness for automobile, home appliance, medical and so on, also do OEM orders for different company.

We have 13 years experiences on this industry.

And our sales volume is about 300`500 million USD in the past 10 years.

We have Injection molding machine, Automatic terminating machine, Pneumatic stripper, Automatic wire cutting machine, Testing machine more than 40 units. Currently there are over 130 employees, and a fabrication area of more than 3, 000 square meters. Technical force and produce ability is abundant.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.

We have exported large quantity to North America, Southeast Asia and European countries, Like Germany, Italy, USA, Canada and so on.

We are looking forward to building the business cooperation with all of you. Hope we can develope into a big scale company in the future.
