10g, 19'' 1u Carrier-Grade, Managed Type Multiple Protocol Media Converter
| Price: |
US $ 465-545/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
10G, 1U Carrier-Grade, Managed Type Multiple Protocol Media Converter
OverviewUC6100 is a carrier-grade, managed type of multiple protocol media converter (MC) system. With this system, service providers (SP) can offer multi-rate type of services such as SDH/Sonet, Fiber Channel and Ethernet services.UC6100 comes with configurable subsystems such as a 2-slot mini-chassis, an 1U "pizza-box", as well as a 3U shelf with related plug-in cards. - UC6100-2SFP/3SFP card supports data rate up to 3.2Gbps, including Ethernet, Fast Ethernet and Gigabit Ethernet, STM-1/4/16, FC-1/2, and OC-3/6/12/24/48.
- UC6100-2SFP+/3SFP+ card supports data rate from 8.5Gbps to 11.3Gbps, including 10G Ethernet(10.3125G), 10G Fiber Channel(10.5187G), 10G OTU(11.318G), OC-192/STM-64(9.95328G), G.709 OTU2(10.709225G) and G.709OTU2e(11.095G).
Some of its advanced features, such as Link Fault Pass-Through (LFP), Remote Fault Detection (RFD), Loopback and Dying Gasp Alarm, can reduce on-site maintenance and make troubleshooting efficient.Product Highlights
- 1U 19" 8-slot chassis with 1 slot for Network Management Card (NMC), 5 slots for Line cards and 2 slots for Power & Fan modules
- All modules and line cards are hot-swappable
- Support power redundancy with load sharing mechanism, and also AC/DC power options
- Configurable and scalable features:
- Use different SFP modules for line card, and adjust data rates as needed
- Fully 3R (Re-amplify, Re-shape and Re-clock) based design. Perform full 3R signal regeneration and is protocol transparent
- Support out-of-band management via Web-based, CLI(Local Console or Telnet ) and SNMP(V1,V2C and V3) management
- Support system log
- Support remote firmware upgrade
- Various SFP/SFP+ options support Digital Diagnostic Monitoring Interface(DDMI)
- Programmable link fault pass-through (LFP), or referred to as remote fault detection (RFD) feature
- Remote power on/off detection with dying gasp alarm
- APS line protect function with less than 50 ms switch-over time
- Loopback capability for link integrity test, support both line side loopback and client side loopback
- Support hardware management such as chassis info, system info, line card type, card version, card location, port description etc.
- Alarm for link status, card plug-in/remove and power on/off
- Various applications - media conversion, signal repeating, wavelength conversion, redundant link

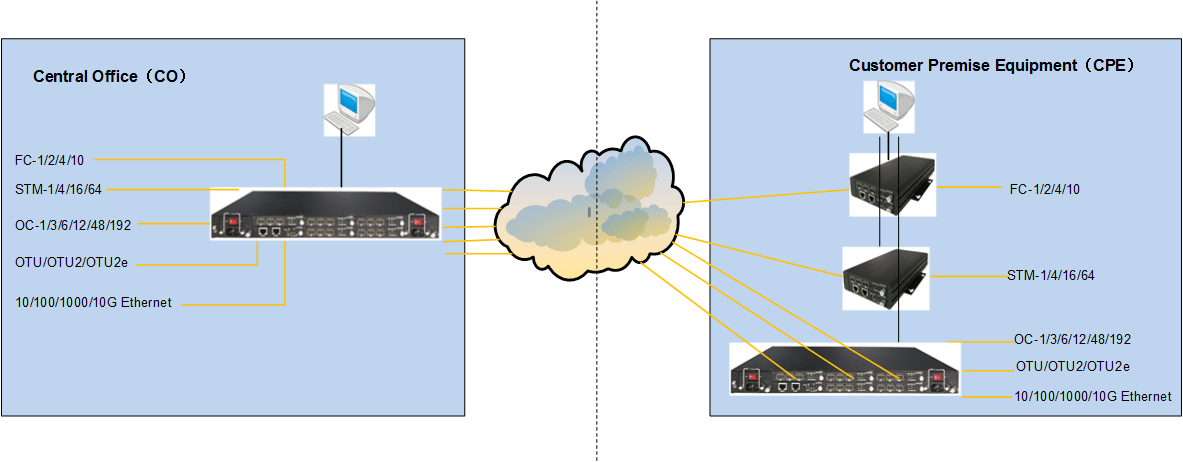

ApplicationScenario 1: P2P case

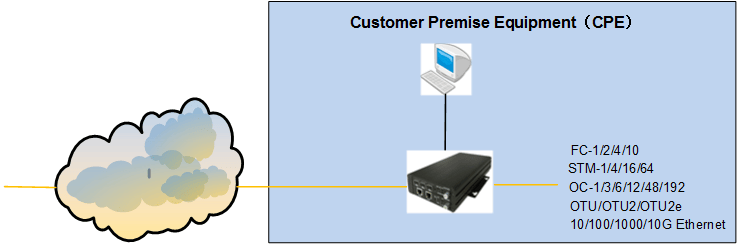

Scenario 2: Standalone case
Note:In 10M Ethernet standalone Scenario where the data rate of user side is 10Mbps, network side is 100Mbps or 1000Mbps. Network side does not support 10Base-F.Ordering Information| | Model | Description |
| Chassis | UC6100-1U | 1U 19-inch chassis with 3 slot baffles |
| Power Module | UC6100-AC-1U | AC power module for 1U chassis |
| UC6100-DC-1U | DC power module for 1U chassis |
| Management Card | UC6100-NMC | Network management card |
| Line Card | UC6100-2SFP | 2× SFP ports |
| UC6100-3SFP | 3×SFP ports with APS function |
| UC6100-2SFP+ | 2×SFP+ ports |
| UC6100-3SFP+ | 3×SFP+ ports with APS function |
| UC6100-OP | 3×Transparent LC |
| UC6100-2TSFP+ | 1×RJ45 and 1×SFP+ |
| Prod Model: |
UC6100-1U |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
Media Converter |
