Communication Module Fiber Optic Transceiver SFP+ 10g
| Price: |
US $ 355-595/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Communication Module fiber optic transceiver sfp+ 10gData Rate: 10Gbps1) Features - 1470nm to 1610nm CWDM Laser.
- Compliant with SFP+ MSA
- Compliant to 802.3ae 10GBASE-ZR
- Compliant to SFP+ SFF-8431 and SFF-8432.
- Hot-pluggable SFP footprint
- Built-in digital diagnostic functions
- Maximum Link Length of 80 km
- Single power supply 3.3V
- Class 1 laser product complies with EN 60825-1
- Case temperature range: -5ºC to 70ºC.
- Power dissipation < 1.5W
2) Application
3) Description

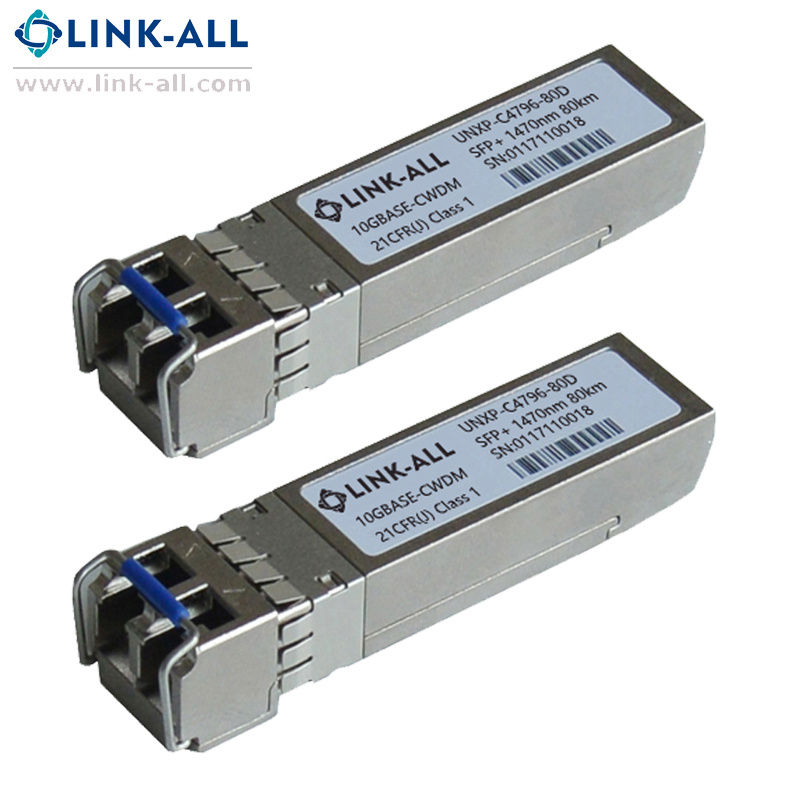

UNXP-CXX96-80D is CWDM SFP+ transceiver for long distance optical communications, the distance is up to 80km.
The transceivers include an APD diode and temperature stabilized DFB-EML transmitter. Digital diagnostic functions are
available via an I2C. This module is designed for single mode fiber.
4) Product Selection | Wavelength | xx | Wavelength | xx |
| 1470 nm | 47 | 1550 nm | 55 |
| 1490 nm | 49 | 1570 nm | 57 |
| 1510 nm | 51 | 1590 nm | 59 |
| 1530 nm | 53 | 1610 nm | 61 |
5) Specification
Absolute Maximum Ratings| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Maximum Supply Voltage | Vcc | -0.5 | | 3.6 | V | |
| Storage Temperature | TS | -40 | | 85 | °C | |
| Case Operating Temperature | Tcase | -5 | | 70 | °C | |
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V | |
| Supply Current | Icc | | 300 | 450 | mA | |
| Transmitter | | | | | | |
| Input differential impedance | Rin | | 100 | | Ω | 1 |
| Differential data input swing | Vin,pp | 180 | | 1200 | mV | |
| Transmit Disable Voltage | VD | Vcc-1.3 | | Vcc | V | |
| Transmit Enable Voltage | VEN | Vee | | Vee+ 0.8 | V | 2 |
| Transmit Disable Assert Time | | | | 10 | us | |
| Receiver | | | | | | |
| Differential data output swing | Vout,pp | 300 | | 850 | mV | 3 |
| Data output rise time | tr | 30 | | | ps | 4 |
| Data output fall time | tf | 30 | | | ps | 4 |
| LOS Fault | VLOS fault | Vcc-1.3 | | VccHOST | V | 5 |
| LOS Normal | VLOS norm | Vee | | Vee+0.8 | V | 5 |
1. Connected directly to TX data input pins. AC coupled thereafter.
2. Or open circuit.
3. Into 100 ohms differential termination.
4. These are unfiltered 20-80% values
5. Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | | | | | | |
| Output Opt. Pwr | POUT | 0 | | +5 | dBm | 1 |
| Optical Wavelength | λ | λ-6.5 | | λ+6.5 | nm | 2 |
| Wavelength Temperature Dependance | | | 0.08 | 0.125 | nm/°C | |
| Optical Extinction Ratio | ER | 6 | | | dB | |
| Transmitter and Dispersion Peanlty | TDP | | | 3.0 | dB | |
| Side mode Supression ratio | SMSR | 30 | | | dB | |
| RIN | RIN | | | -128 | dB/Hz | |
| Output Eye Mask | | Compliant with IEEE 0802.3ae | |
| Receiver | | | | | | |
| Rx Sensitivity | RSENS | | | -23 | dBm | 3 |
| Input Saturation Power (Overload) | Psat | -7 | | | dBm | |
| Wavelength Range | λC | 1270 | | 1610 | nm | |
| LOS De -Assert | LOSD | | | -26 | dBm | |
| LOS Assert | LOSA | -32 | | | dBm | |
| LOS Hysteresis | | 0.5 | | | dB | |
1. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.
2. "λ" is:1470,1490,1510,1530,1550,1570,1590,1610, please the "product selection"

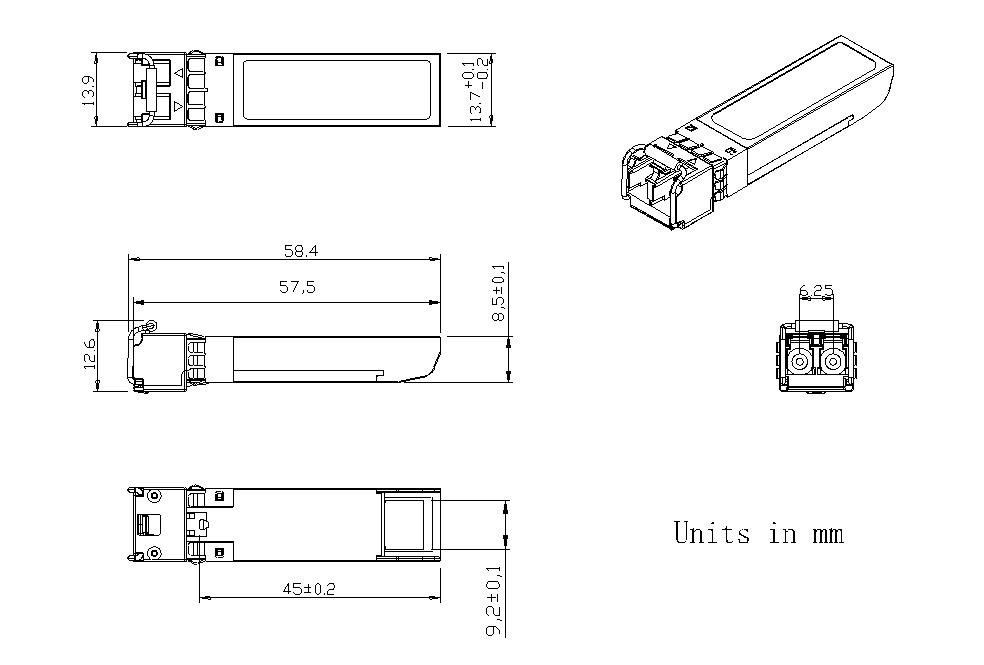

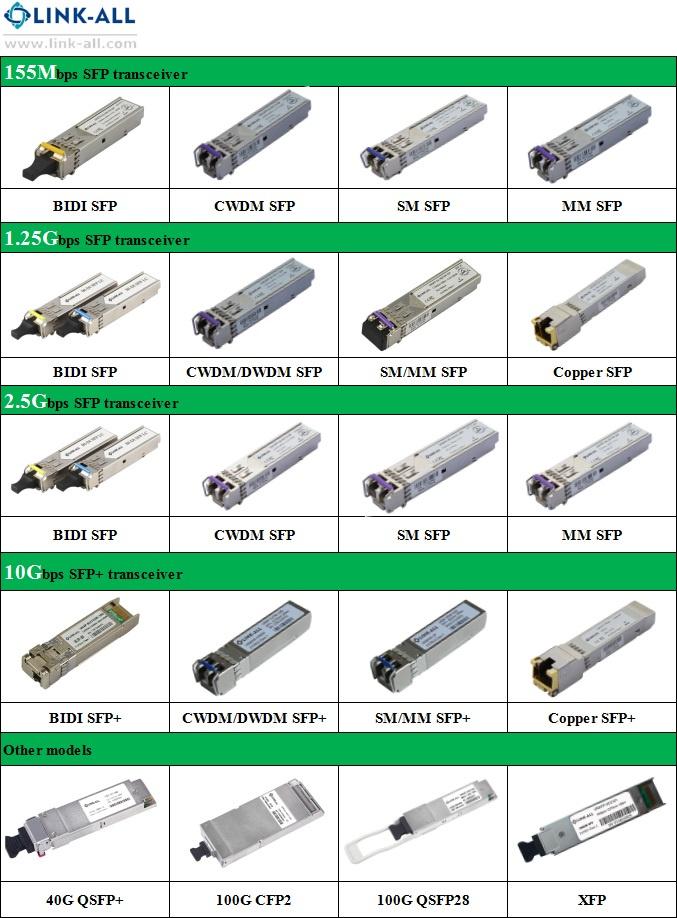

3. With worst-case extinction ratio. Measured with a PRBS 231-1 test pattern, @10.325Gb/s, BER<10-12 . 6) Other SFP Modules for choosing
For more products, please kindly check our website: www.link-all.com.
| Prod Model: |
10Gbps CWDM SFP+ transceiver |
| Package: |
SFP+ |
| Data Rate: |
10gbps |
| Wavelength: |
1470~1610nm |
| Distance: |
up to 80km |
| Output Power: |
0~5 dBm |
| Receive Sensitivity: |
-23 dBm |
| Power Supply Voltage: |
3.3V |
| Connector: |
LC Duplex |
| Fiber Type: |
SMF |
| Operating Temperature: |
0~70 Degree |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
Optic Transceiver |
