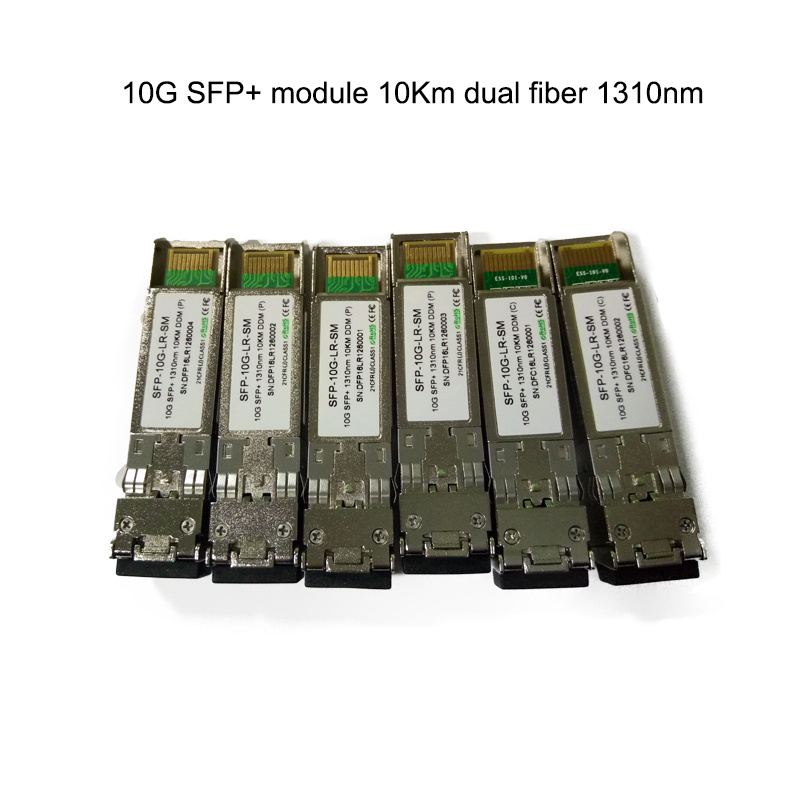

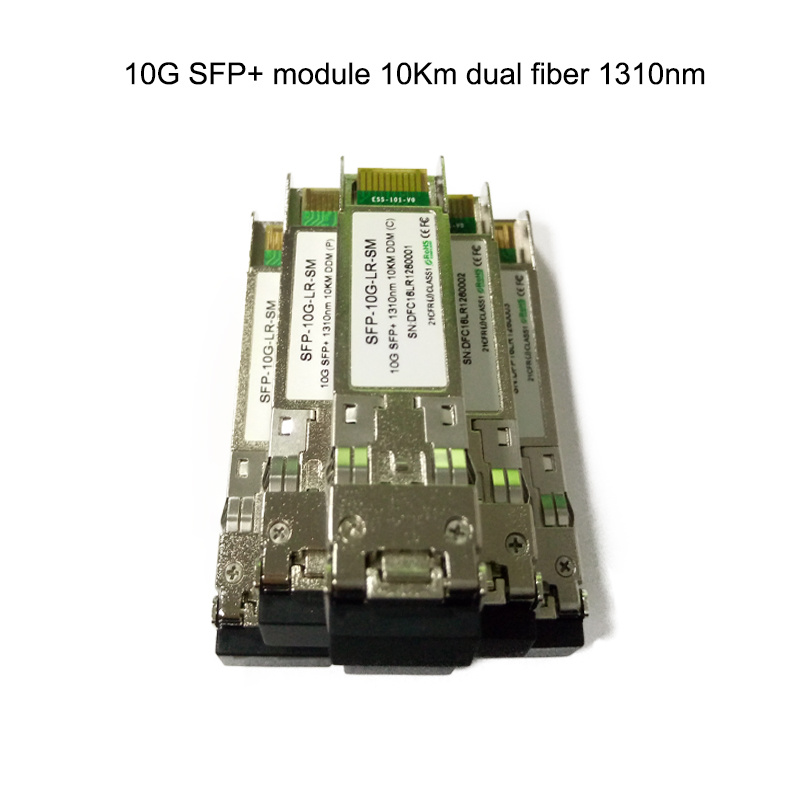

10g SFP+ Lr Cisco Compatible Optical Transceiver/SFP
| Price: |
US $ 25-80/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
10G SFP+ |
| Item Name: |
SFP+ |
| Working Rate: |
10g |
| Mode Type: |
Single Mdoe |
| Fiber Type: |
Dual Fiber |
| Interface: |
LC |
| Reach Distance: |
10km |
| Ddm: |
Available |
| Customized: |
Acceptable |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description
10g SFP+ Lr Cisco Compatible SFP Transceiver/SFPSFP Optical Transceivers are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.
Features
Optical interface compliant to IEEE 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Hot Pluggable
1310nm DFB transmitter, PIN photo-detector
Operating case temperature: 0 to 70 °C
Low power consumption
Applicable for 10km SMF connection
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other optical links
Optical characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.| | Unit | Values |
| Operating Reach | Km | 10 |
| Transmit |
| Center wavelength (range) | nm | 1260 -1355 |
| Side Mode Suppression Ratio (min) | dB | 30 |
| Launched power |
| - maximum | dBm | +0.5 |
| - minimum | dBm | -7.2 Notes1 |
| OMA | dBm | -5.2 |
| OMA-TDP (min) | dBm | -6.2 |
| Transmitter and dispersion penalty | dB | 3.2 Notes4 |
| Average launch power of OFF transmitter (max) | dBm | -30 |
| Extinction ratio (min) | dB | 3.5 Notes2 |
| RIN12 OMA (max) | dB/Hz | -128 |
| Optical Return Loss Tolerance (min) | dB | 12 |
| Receiver |
| Center wavelength (range) | nm | 1260-1355 |
| Receive overload (max) in average power1 | dBm | 0.5 |
| Receive sensitivity (min) in average power1 | dBm | -14.4 Notes3 |
| Receiver sensitivity (max) in OMA (footnote 2) | dBm | -12.6 Notes3 |
| Receiver Reflectance (max) | dB | -12 |
| Stressed receiver sensitivity (max) in OMA2 | dBm | -10.3 |
| Vertical eye closure penalty (min)3 | dB | 2.2 |
| Stressed eye jitter (min)2 | UIp-p | 0.7 |
| Receive electrical 3dB upper cutoff frequency (max) | GHz | 12.3 |
| Receiver power (damage, Max) | dBm | 1.5 |
Notes:
The optical power is launched into SMFMeasured with a PRBS 231-1 test [email protected] with a PRBS 231-1 test [email protected] BER≤10-12
4. In G.652 and G.655(NDSF) |
Electrical characteristics
The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified. | Parameter | Symbol | Min. | Typical | Max | Unit | Notes |
| Data Rate | | - | 10.3125 | - | Gbps | |
| Power Consumption | | - | 1200 | 1500 | mW | |
| Transmitter |
| Single Ended Output Voltage Tolerance | | -0.3 | - | 4.0 | V | |
| C common mode voltage tolerance | | 15 | - | - | mV | |
| Tx Input Diff Voltage | VI | 400 | | 1600 | mV | |
| Tx Fault | VoL | -0.3 | | 0.4 | V | At 0.7mA |
| Data Dependent Input Jitter | DDJ | | | 0.10 | UI | |
| Data Input Total Jitter | TJ | | | 0.28 | UI | |
| Receiver |
| Single Ended Output Voltage Tolerance | | -0.3 | - | 4.0 | V | |
| Rx Output Diff Voltage | Vo | 300 | | 850 | mV | |
| Rx Output Rise and Fall Time | Tr/Tf | 30 | | | ps | 20% to 80% |
| Total Jitter | TJ | | | 0.70 | UI | |
| Deterministic Jitter | DJ | | | 0.42 | UI | |
Our Services:
1.Order inquiry: Keep working time from 9AM to 23PM to gurantee the first reply to clients,and 24 hours
no Cellphone power off
2.Order production: Keep very close touch with production department to gurantee the right delivery time to clients
3.Before shipment: Our sales would double check the order quantity,package and strength of cartons to
avoid lost and damage
4.After shipment: Keep tracking shipping status and reporting to clients
5.Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR
Any query 10g SFP module,please leave me an inquiry or contact me directly.
