10kv 35kv 66kv 110kv Compound Electric Capacity Dry Type Transformer Bushing
| Price: |
US $ 1-2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
35kv 66kv 110kv |
| Maximum Voltage: |
10kv~110kv |
| Application: |
High-voltage |
| Material: |
Composite Polymer |
| Structure: |
Suspension Insulator |
| Size Of Bearing Capacity: |
70 |
| Color: |
Grey |
Product Description
Product Description

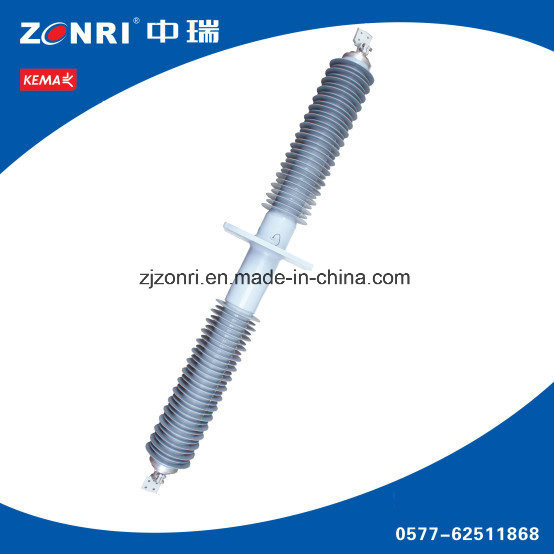

compound electric capacity dry type transformer bushing
Parameter:
Features: | (kv) | 12 | 40.5 | 72.5 | 126 | 252 |
| (kv) | 10 | 35 | 66 | 110 | 220 |
| 60s()(kv)60s power frequency withstand voltage | 42 | 95 | 147 | 230 | 460 |
| (kv)Lightning impulse withstand voltage peak (kv) | 75 | 200 | 325 | 550 | 950 |
| (N)curving load(N) | 1000 | 2000 | 2000 | 5000 | 5000 |
| (A)Rated current(A) | ≤4000 |
| (%)Dielectric loss tangent (%) | ≯0.7 |
| (PC)Partial discharge (PC) | ≯10 |
1)IEC61109, ISO Type test report, ANSI and CESI Composite Insulator
2)Top 3 and more than 17 Years' manufacturer
3) End fittings Galvanized, Variation in Design
4) Best price, best service & Quality
Material:
1. Silicon rubber, composite polymer
2. Glass-fiber reinforced epoxy resin rod
3. Hot-dip galvanized steel

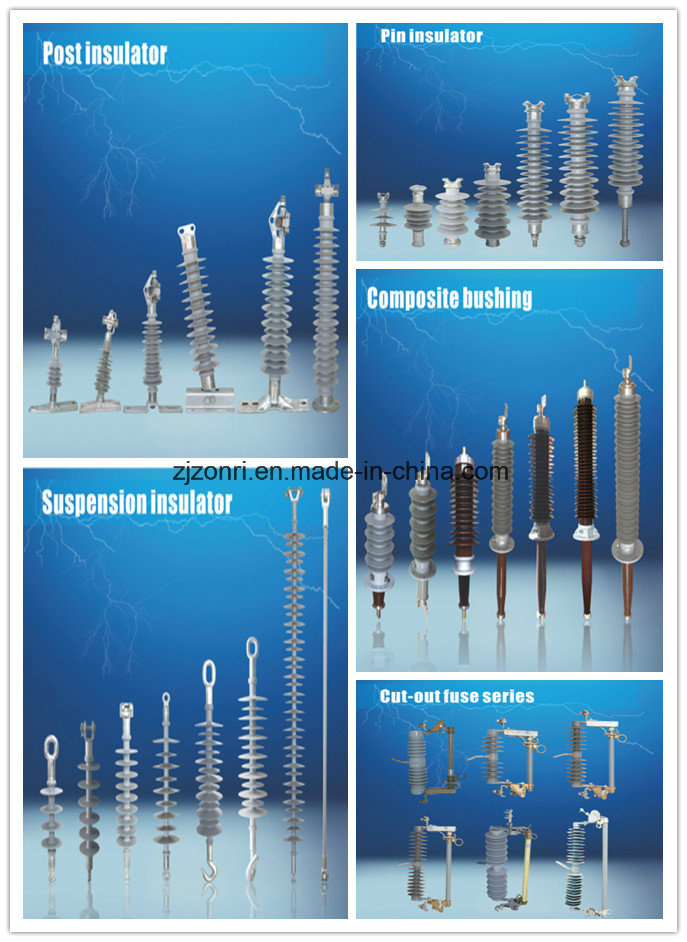

More composite Insulator, composite bushing surge arrester , cut -out fuse from us:
Produce:
Please contact us for more information. We can design and manufacture specially on your request.
Packaging & Shipping
Packing:
wooden case
Shipping:
1. DHL, EMS, TNT, Fedex, UPS and others international express for samples.
2. By air or by sea.
Our Services
Payment term:
1.Payment: 1) T/T. 2) L/C
2.Port of loading: Ningbo ,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time: 5-30 days according to order quantities.
Feedback:
FAQ
Why Us?
1. Quality assurance: All the products will go through lots of tests carefully before dispatch
2. Competitive production capacity and fast shipping
3. Factory direct sale, most competitive price.
About Composite Bushing:
Our company develops the development the Bolivian filament-epoxy resin electric capacity type compound coat drive pipe ,is profits from the domestic and foreign similar products the advanced design idea, the breakthrough traditional materials and the manufacture processing technology develops .This product besides satisfies GB4109-1999,IEC60137-1995 and the related each newest standard, because also its unique design craft has avoided in the domestic similar product a flange end easy oil leak and the long time movement lies between damages the fill -out the question. Below has the remarkable characteristic:
1,does not have the oil ,airless,does not have the filling material,does not need to maintain
2,the design insulation allowance is big,maximum limit enhancement corona voltage
3,thermostable, the electrical specification is stable , does not have burning and the explosion hazard
4,the structure is compact, the volume is small,the weight is light ,does not fear the clash, the convenient main engine factory and user's scene installs.
5, the Bolivian filament-epoxy material from inside to outside for the structure close solid state material, used the unique craft to guarantee product in under long-term movement condition itselectrical specification stable reliable ,the service life was long, achieved truly the electric power department proposed exempts the maintenance the request.
6,the production cycle was short,but also might carry on the special design according to the user request.
7, use the silicagel compound coat and according to 2level of above antifouling rank designs, may satisfy the different contaminatioin situation the operation requirement.
Company Information

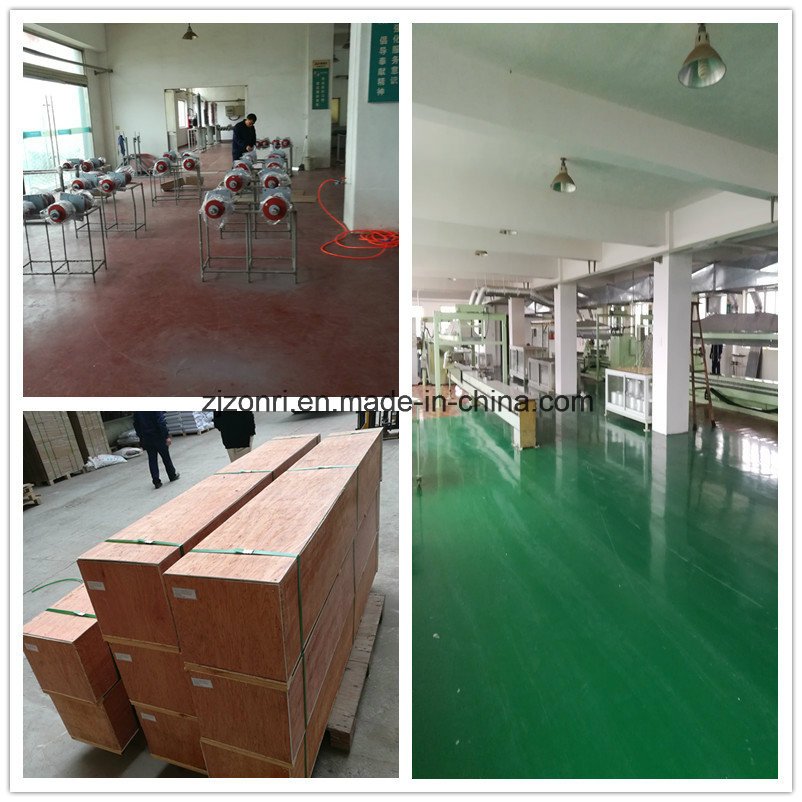

Our company Introduction:
Our insulator, composite bushing ,surge arrester, cutout fuse sell well all over the world and are exported to kenya, Congo , Greece , Middle East, South Africa, uganda , Peru ,Viet Nam, Indonesia, South America and so on. Rated voltage for our transformer mainly is from 3KV to 660KV. We have won a good reputation among customers at home and abroad. We will do our best to provide more high-quality products and services for you in the future!
1. Near 20-years experience in manufacture of composite insulators , bushing ,surge arrester ,cutout fuse, more than 15 years experience on export.
2. All of material passed ROHS and Reach certification.
3. Manufacturing process is comply with ISO9001.
4. We supply the good payment terms such as TT before shipment for our cutomers ,usually we accept L/C DA payment terms.
5. We can provide free samples for customer to test it.
6. Samples delivery time is within 24 hours. Freight cost pay by customers
7.The fast leading time is5-20 days ,most time we send a container need about1 month to produce product.
8. Factory info: Located in Yueqing Wenzhou City, Zhejiang Province.
9. OEM Service and Buyer Label Offered.
10. Above 30 production lines.
11.Including10R&D Engineers ,20QC Techinicians, 3 foreign trade colleagues ,in total 180 employees work in ZHONGRUI .
Welcome your enquiry!
We will be honored our professional service before and after sale & reasonable price. Any questions from you are welcome and will be replied in 24 hours.
Zhongrui Electric Co., Ltd. Located at Chinese Electric City'-Yueqing City, established 2000, own advanced manufacturing machines and complete measuring & testing equipments. We are a high technical enterprise that have succeed in turning produce, develop and sell together, one of the professional manufacturer for silicone rubber insulator in China, the member of Chinese Electrical Equipment Industry Association, one unit of National standard and technical committee of insulator, Yueqing city valuing contracts & promising enterprise, ISO2000: 2008 International Quality System Attestation enterprise, and established long-term cooperating relationship with the relevant scientific research institutions.

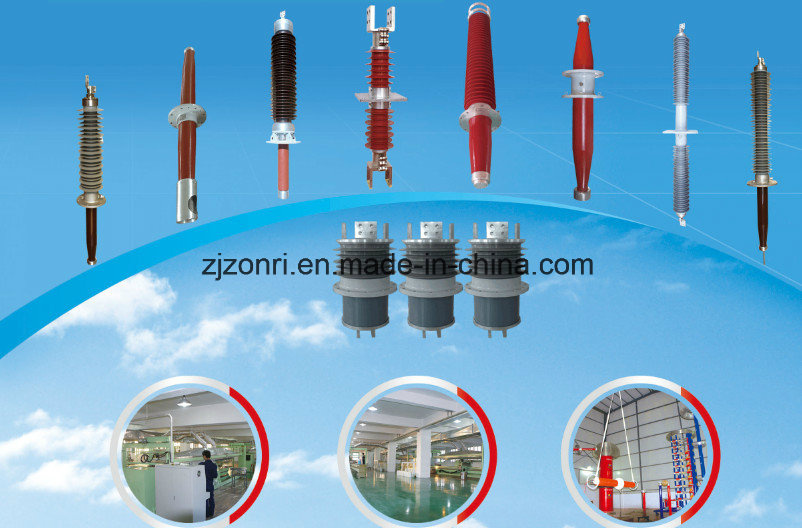

Our company specializes in the series products of composite insulator (power line, substation and electric railway series), composite dry wall bushing, lightning arrester and fuse cutout etc. All products are qualified by Ministry of Power Industry electric equipment quality inspection center and National Insulator & Lightning Arrester quality control test of inspection center, agreed with National industrial, IEC AND ANSI standard, and accreditation through State Power Corporation and China Machinery Industry Federation 'Two Ministry' new product and Zhejiang Province Scientific & Technological Hall, Province Electric Power Industry Bureau, Province Mechanical Industry Bureau federation authentication of new products of scientific & technical results. Product quality is insured by People's Insurance Company of China. Series of composite insulators and Zinc Oxide Arrester manufactured by our company, sharing the features of advanced design, reasonable structure, reliable performance, that achieve to the national leading level. Our silicone Rubber insulator used on high-voltage line had been placed 'National Star plan' by Chinese Technical department, Composite Cross-arm Insulator had been honored City Technical Metal; And we are the first private enterprise that got KEMA test report for Composite Insulator and Arrester in China. Our products sell well through all parts of the country, as well as finding good markets in Iran, Indonesia, Vietnam, Kampuchea, Syrian, Korean, Canada etc., gaining favorable comments of domestic and abroad users.
