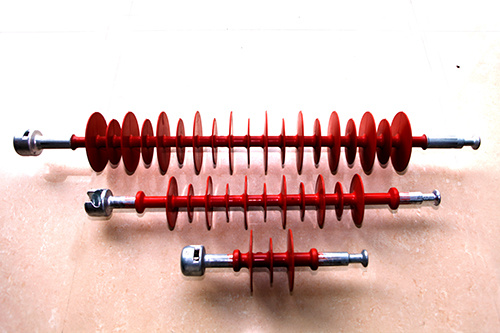

10kv ~ 66kv AC Suspension Composite Insulator
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
List of Main Size and Property
| NO. | Product Mode
| Figure No. | Nominal voltage
kV | Rated mechanical tension load
kN | Connecting structure sign | Mm
Structure height
H
mm | Minimal arc distance
h mm | Creepage distance
mm | Lightening full-wave impulse withstanding voltage
kV(maximum)
no less than | Switching impulse withstanding voltage
kV(maximum)
no less than | 1 min power frequency wet withstanding voltage kV(effective value)no less than |
| 1 | FXBW-10/70 | Figure 1 | 10 | 70 | 16 | 310 | 135 | 330 | 110 | -- | 40 |
| 2 | FXBW-10/120 | Figure 1 | 10 | 120 | 16 | 370 | 160 | 400 | 110 | -- | 40 |
| 3 | FXBW-35/70 | Figure 2 | 35 | 70 | 16 | 610 | 450 | 1090 | 230 | -- | 95 |
| 4 | FXBW-35/70 | Figure 2 | 35 | 70 | 16 | 650 | 480 | 1100 | 230 | -- | 95 |
| 5 | FXBW-35/120 | Figure 3 | 35 | 120 | 16 | 650 | 460 | 1300 | 230 | -- | 95 |
| 6 | FXBW-66/70 | Figure 4 | 66 | 70 | 16 | 870 | 680 | 2000 | 410 | -- | 185 |
| 7 | FXBW-66/70 | Figure 4 | 66 | 70 | 16 | 940 | 750 | 2200 | 410 | -- | 185 |
| 8 | FXBW-66/120 | Figure 4 | 66 | 120 | 16 | 870 | 680 | 2000 | 410 | -- | 185 |
| 9 | FXBW-66/120 | Figure 4 | 66 | 120 | 16 | 940 | 750 | 2200 | 410 | -- | 185 |
| Prod Model: |
FXBW-10/70, 120; FXBW-35/70, 120; FXBW-66/70, 120 |
| Application: |
High-voltage |
| Material: |
Composite Polymer |
| Structure: |
Suspension Insulator |
| Type: |
Long Rod |
| Connection Method: |
Socket-Ball; Y-Ball; Eye-Eye; C-T |
| Size Of Bearing Capacity: |
70kn~120kn |
| Color: |
Grey |
| Brand: |
Mpc |
