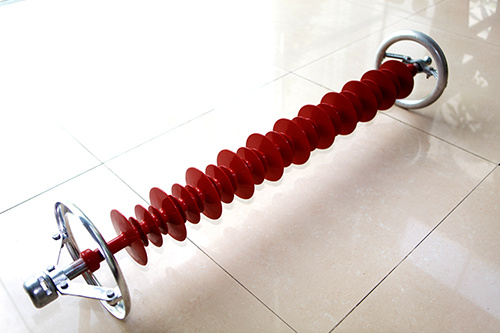

110kv~220kv Suspension Composite Insulator
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
List of Main Size and Property
| No. | Product
Mode | Figure No. | Nominal voltage
kV | SML
kN | Coupling
sign | Section length
H (mm) | Arc
distance
h (mm) | Creepage distance
mm | Lightening impulse withstand voltage
(≥) kV | Switch impulse withstand voltage
(≥) kV | Power frequency withstand voltage (≥) kV |
| 1 | FXBW-110/70 | Figure 5 | 110 | 70 | 16 | 1190 | 1000 | 3350 | 550 | -- | 300 |
| 2 | FXBW-110/70 | Figure 5 | 110 | 70 | 16 | 1240 | 1020 | 3450 | 550 | -- | 300 |
| 3 | FXBW-110/120 | Figure 5 | 110 | 120 | 16 | 1190 | 1000 | 3350 | 550 | -- | 300 |
| 4 | FXBW-110/120 | Figure 5 | 110 | 120 | 16 | 1240 | 1020 | 3300 | 550 | -- | 300 |
| 5 | FXBW-110/120 | Figure 5 | 110 | 120 | 16 | 1440 | 1220 | 3800 | 550 | -- | 300 |
| 6 | FXBW-220/120 | Figure 6 | 220 | 120 | 16 | 2150 | 1900 | 6400 | 1175 | -- | 540 |
| 7 | FXBW-220/120 | Figure 6 | 220 | 120 | 16 | 2240 | 2000 | 6500 | 1175 | -- | 540 |
| 8 | FXBW-220/120 | Figure 6 | 220 | 120 | 16 | 2350 | 2100 | 7000 | 1175 | -- | 540 |
| 9 | FXBW-220/160 | Figure 6 | 220 | 160 | 20 | 2240 | 1900 | 6600 | 1175 | -- | 540 |
| 10 | FXBW-220/160 | Figure 6 | 220 | 160 | 20 | 2350 | 2000 | 6750 | 1175 | -- | 540 |
| 11 | FXBW-220/210 | Figure 6 | 220 | 210 | 20 | 2350 | 1950 | 6750 | 1175 | -- | 540 |
| Prod Model: |
FXBW-110kV/70kN-160kN; FXBW-220kV/70kN-160kN |
| Application: |
High-voltage |
| Material: |
Composite Polymer |
| Structure: |
Suspension Insulator |
| Type: |
Long Rod |
| Connection Method: |
Socket-Ball; C-T; Y-B |
| Size Of Bearing Capacity: |
70kn~160kn |
| Color: |
Grey & Red |
| Brand: |
Mpc |
