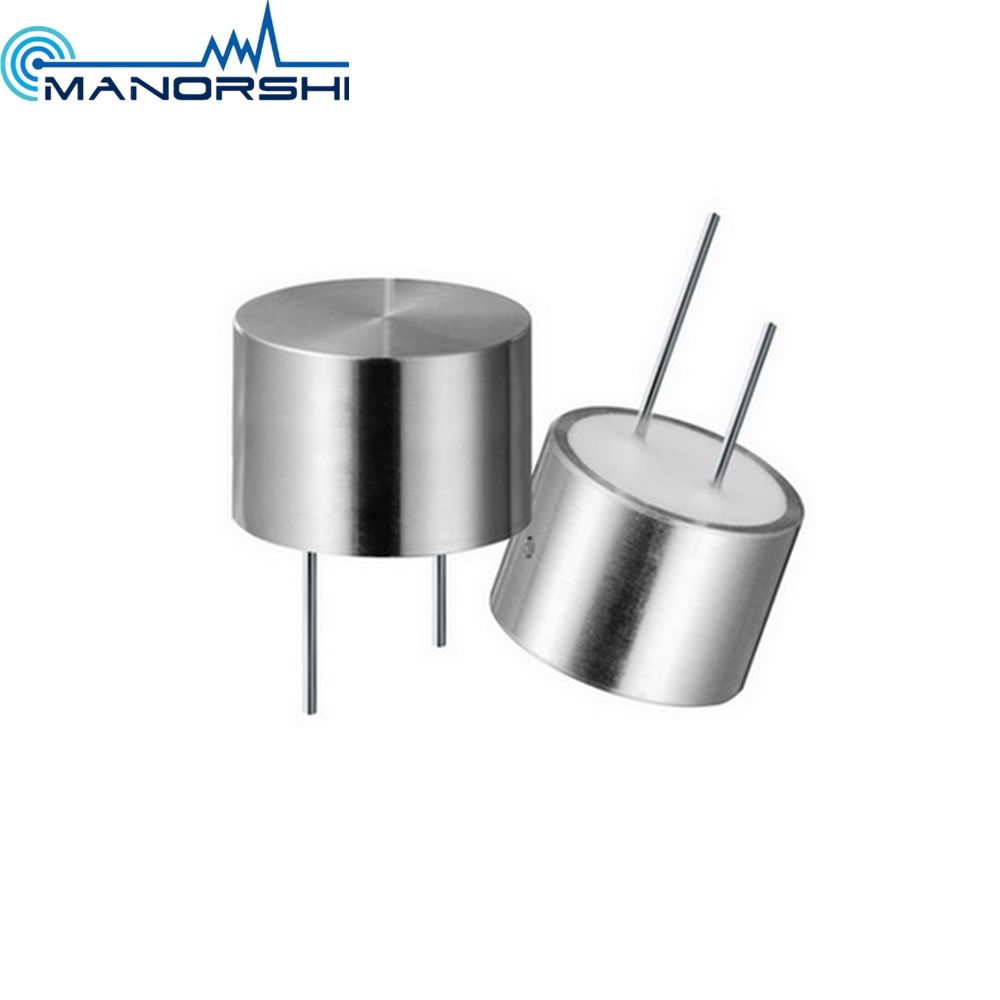

10mm 40kHz Waterproof Ultrasonic Sensor Transmitter and Receiver

Name: 10mm 40kHz Waterproof Ultrasonic Sensor Transmitter and Receiver
Brand: all-electronics-online.com
SKU: 838136465
Availability: InStock
Rating: 4.9 (30 reviews)

Price:	US $ 0.97-1.29/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

10mm 40khz waterproof ultrasonic sensor transmitter and receiver

Specification

Construction	Water proof
Using Method	Dual use
Center Frequency	40KHz
Output Sound Pressure	>=100dB
Sensitivity	>= -84dB
Directivity	70°
Capacitance	2000±20%pF at 1KHz
Operating Tem Range	-30 to 85 degress Celsius
Max.Input Voltage	20/ pulse with 0.4ms
Detectable Range	0.2 to 4m
Housing Material	Aluminium

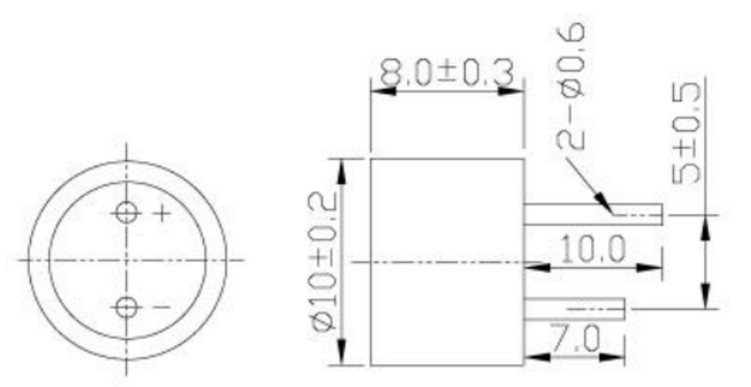

Dimension

Application



Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Trade show & Certification

FAQ

1.What's your MOQ?

MOQ depends of different series of products, pls contact with us.

2.Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.

3.How about freight fee?

We cooperate with different express companies, enjoy the lowest discount.

4.Do you support after sales service?

The professional after-sales service team will solve all problems for you.

Prod Model:	MSW-A1040H08TR
Product Name:	10mm Ultrasonic Sensor
Center Frequency:	40±1.0kHz
Output Sound Pressure:	>=100dB
Directivity:	70°
Capacitance:	2000±20%PF at 1kHz
Operating Tem Range:	-30 to 85 Degress Celsius
Detectable Range:	0.2 to 4m
Housing Material:	Aluminium
RoHS:	Yes

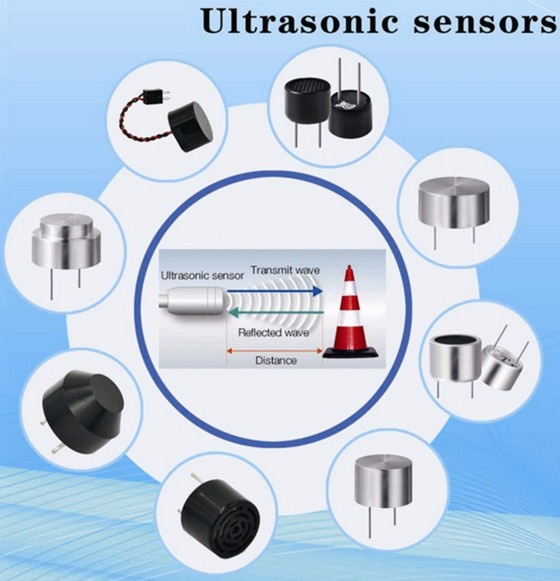

Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
