40kHz Ultrasonic Acoustic Distance Sensor

Name: 40kHz Ultrasonic Acoustic Distance Sensor
Brand: all-electronics-online.com
SKU: 835363905
Availability: InStock
Rating: 5 (68 reviews)

Price:	US $ 0.2-0.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

40KHz Ultrasonic Acoustic Distance Sensor

Specification

Dimension	16mm(D)*10mm(H)
Center frequency	40.0±1.0KHz
Using Method	Separate transmitter or receiver.
Construction	open structure type
Directivity Deg	60°±15° (-6dB)
Sensitivity	-68dB min
Capacitance	2500±20%pF
Sound Pressure Level	114dB min
Max.Input Voltage	80Vp-p
Typical Sensing Range	0.2~15m
Operating Temperature	-20ºC ~+70ºC
Storage Temperature	-40ºC ~+85ºC

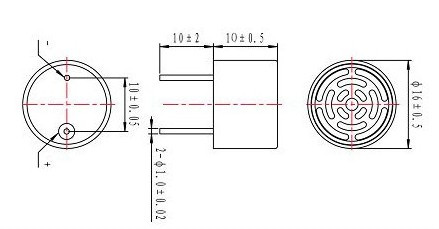

Dimension

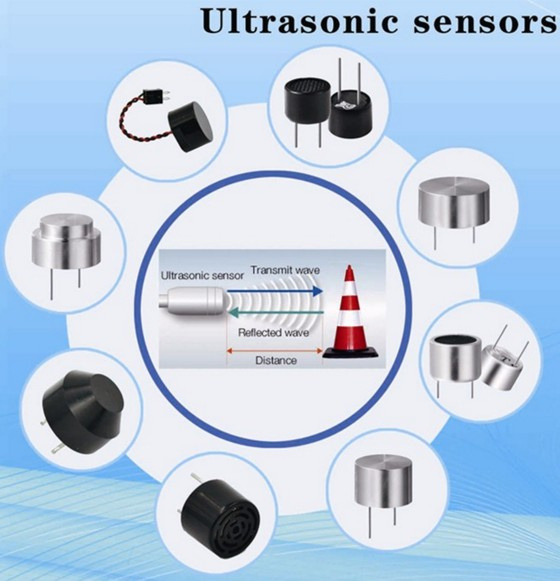

Application


Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Trade show & Certification

FAQ

1.What's your MOQ?

MOQ depends of different series of products, pls contact with us.

2.Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.

3.How about freight fee?

We cooperate with different express companies, enjoy the lowest discount.

4.Do you support after sales service?

The professional after-sales service team will solve all problems for you.

Prod Model:	MSO-PT1640H10R
Product Name:	40kHz Ultrasonic Acoustic Distance Sensor
Frequency:	40.0±1.0kHz
Spl:	≥114dB
Directivity:	80°±5
Capacitance:	2500±20%PF
Housing Material:	Aluminum(ABS)
Input Directivity:	80vp-P Max
Color:	Black or Sliver Ultrasonic Sensor

Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
