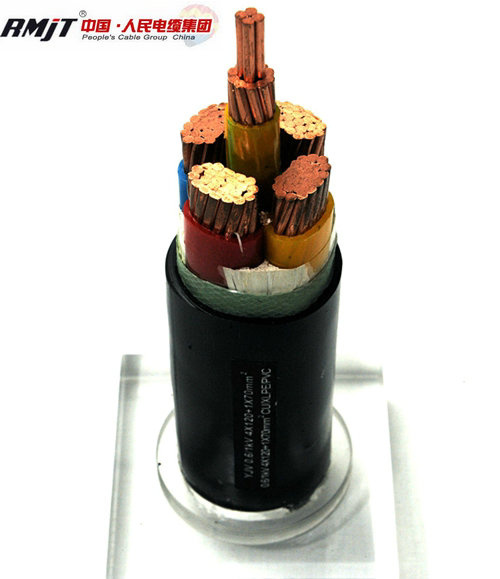

11kv 1kv Copper Conductor PVC XLPE Cable
| Price: |
US $ 5/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T |
11kv 1kv Copper Conductor PVC XLPE CableWe can customize various types of cable in accordance with your requirements
XLPE /PVC insulated power cable
Power cable
| Model | Name |
YJV
YJLV | CU or AL conductor ,XLPE/pvc insulated PVC sheathed electric cable |
YJV22
YJLV32 | Cu or Al conductor XLPE /pvc insulated steel tape armoured ,steel wire armor
pvc sheathed electric cable |
We can produce 1kv up to 35kv power cable | XLPE insulated power cable 0.6/1kv |
| norminalsectional area | insulati-on thicknes | sheath thickness(mm) | overal diameter
of cable (mm) | D.C resistance of conductor(km) | current rating |
| in air(A) | direct in soil(A) |
| cu | Al | cu | Al | cu | Al |
| 1×1.5 | 0.7 | 1.5 | 6 | <=12.1 | <=12.1 | 30 | 25 | 45 | 35 |
| 1×4 | 0.7 | 1.5 | 7 | <=7.41 | <=7.41 | 45 | 35 | 60 | 50 |
| 1×6 | 0.7 | 1.5 | 7 | <=3.08 | <=4.61 | 55 | 45 | 70 | 55 |
| 1×35 | 0.9 | 1.5 | 12 | <=0.524 | <=0.868 | 175 | 140 | 190 | 150 |
| 1×50 | 1 | 1.5 | 13 | <=0.387 | <=0.641 | 210 | 170 | 225 | 180 |
| 1×70 | 1.1 | 1.5 | 14 | <=0.268 | <=0.443 | 270 | 215 | 280 | 225 |
| 1×95 | 1.1 | 1.5 | 16 | <=0.193 | <=0.320 | 340 | 275 | 335 | 270 |
| 1×120 | 1.2 | 1.5 | 18 | <=0.153 | <=0.253 | 400 | 320 | 380 | 305 |
| 1×150 | 1.4 | 2 | 21 | <=0.124 | <=0.206 | 460 | 370 | 425 | 340 |
| 1×185 | 1.6 | 2 | 23 | <=0.0991 | <=0.164 | 530 | 415 | 480 | 375 |
| 1×240 | 1.7 | 2 | 25 | <=0.0754 | <=0.125 | 625 | 490 | 555 | 435 |
| … | | | | | | | | | |
| 3×1.5 | 0.7 | 1.5 | 10 | <=12.1 | <=12.1 | 25 | 25 | 30 | 30 |
| 3×2.5 | 0.7 | 1.5 | 11 | <=7.41 | <=12.1 | 30 | 25 | 35 | 30 |
| 3×4 | 0.7 | 1.5 | 12 | <=4.61 | <=7.41 | 40 | 30 | 50 | 40 |
| … | | | | | | | | |
| Attention: We can provide more info than above data, if needed.The above are just some examples. |

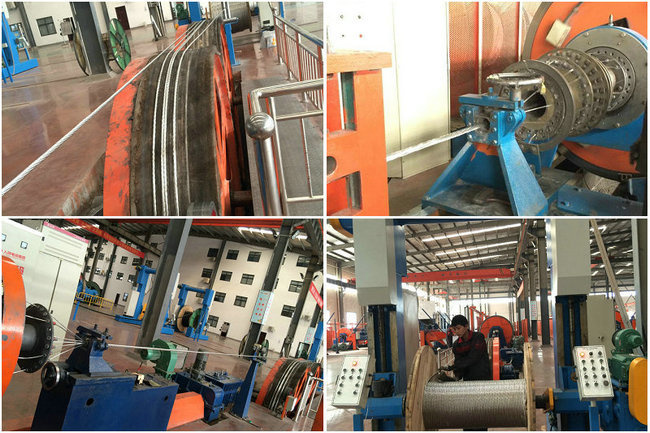

5.Production ProgressOur factory possess 2 subsidiaries, Zhitian factory is professional abc cable workshop with 20 production line.
6.About usPeople's Cable Group Co.,Ltd was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
7.CertificateAs first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer visit We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
9.Contact usFactory Add: No. 13
th, Yongding Road, Gongyi, Zhengzhou city, Henan province, China.
Tel: +86-371-55632896
Fax: +86-371-55632837
Mobile: +86-15236188462
| Prod Model: |
power cable |
| Standard: |
IEC 60502 |
| Material: |
Copper/Aluminum |
| Sheath Matieral: |
PVC/XLPE |
| Core: |
1~5 |
| Insulation: |
PVC/XLPE |
| Delievry Time: |
7~20 Days |
| MOQ: |
500 Meters |
| Payment: |
20%~30% Advanced |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Brand: |
Rmjt |
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
