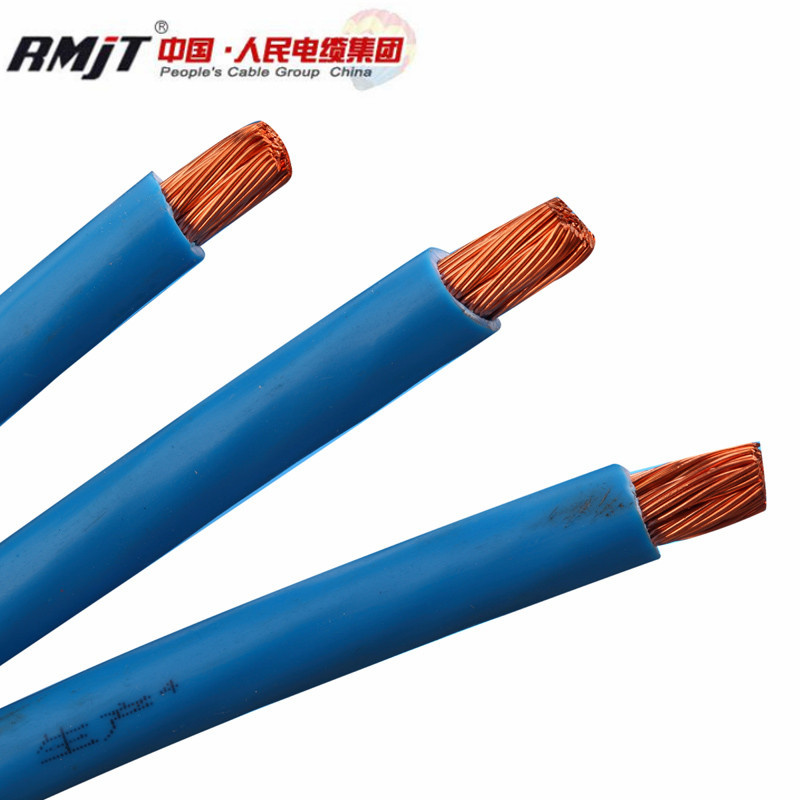

Copper Conductor Tw Thw Building House Wire
| Price: |
US $ 0.02-19.8/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Copper Conductor Tw Thw Building House Wire
TW THWTW THW 600V 60ºC
UL 83 UL 1581
Type TW and THW may be used for general purpose wiring for power and lighting, for insulation in air, conduit, duct or other recognized raceways, in wet or dry locations. Maximum voltage rating= 600 V |
|
|
|
| MAXIMUM CONDUCTOR TEMPERATURE |
| type | oil | wet | dry |
| TW | 60ºC | 60ºC | 60ºC |
| THW | 75ºC | 75ºC | 75ºC |
| MTW* | 60ºC | 60ºC | 90ºC |
| * 1AWG AND LARGER ONLY | |
| AWG/MCM | mm2 | Conductor | Conductor | Insulation | Total Weight |
| Type | Single Wire | OD. | PVC | kg/km |
| | No. | Dia. | Thick | mm | Thick | min | OD. | |
| | mils | |
| 18 | 0.82 | solid | 1 | 1.02 | 1.02 | 30 | 0.76 | 0.89 | 0.7 | 2.54 | 14.82 |
| 16 | 1.31 | solid | 1 | 1.29 | 1.29 | 30 | 0.76 | 0.89 | 0.7 | 2.81 | 20.27 |
| 14 | 2.09 | solid | 1 | 1.63 | 1.63 | 30 | 0.76 | 0.89 | 0.7 | 3.15 | 28.6 |
| 12 | 3.33 | solid | 1 | 2.06 | 2.06 | 30 | 0.76 | 0.89 | 0.7 | 3.58 | 41.48 |
| 10 | 5.27 | solid | 1 | 2.59 | 2.59 | 30 | 0.76 | 0.89 | 0.7 | 4.11 | 60.93 |
| 8 | 8.35 | solid | 1 | 3.26 | 3.26 | 45 | 1.14 | 1.22 | 1 | 5.54 | 98.99 |
| 6 | 13.33 | solid | 1 | 4.12 | 4.12 | 60 | 1.52 | 1.67 | 1.4 | 7.16 | 162.23 |
| 4 | 21.16 | solid | 1 | 5.19 | 5.19 | 60 | 1.52 | 1.67 | 1.4 | 8.23 | 240.34 |
| 18 | 0.82 | B | 7 | 0.386 | 1.158 | 30 | 0.76 | 0.89 | 0.7 | 2.678 | 15.65 |
| 16 | 1.31 | B | 7 | 0.488 | 1.464 | 30 | 0.76 | 0.89 | 0.7 | 2.984 | 21.43 |
| 14 | 2.08 | B | 7 | 0.615 | 1.845 | 30 | 0.76 | 0.89 | 0.7 | 3.365 | 30.1 |
| 12 | 3.30 | B | 7 | 0.775 | 2.325 | 30 | 0.76 | 0.89 | 0.7 | 3.845 | 43.38 |
| 10 | 5.26 | B | 7 | 0.978 | 2.934 | 30 | 0.76 | 0.89 | 0.7 | 4.454 | 64.02 |
| 8 | 8.32 | B | 7 | 1.23 | 3.69 | 45 | 1.14 | 1.22 | 1 | 5.97 | 103.92 |
| 6 | 13.21 | B | 7 | 1.55 | 4.65 | 60 | 1.52 | 1.67 | 1.4 | 7.69 | 169.62 |
| 4 | 21.12 | B | 7 | 1.96 | 5.88 | 60 | 1.52 | 1.67 | 1.4 | 8.92 | 252.44 |
| 2 | 33.54 | B | 7 | 2.47 | 7.41 | 60 | 1.52 | 1.67 | 1.4 | 10.45 | 379.53 |
| 1 | 42.62 | B | 19 | 1.69 | 8.18 | 80 | 2.03 | 2.11 | 1.8 | 12.24 | 480.75 |
| 1/0 | 53.30 | B | 19 | 1.89 | 9.19 | 80 | 2.03 | 2.11 | 1.8 | 13.25 | 586.71 |
| 2/0 | 67.70 | B | 19 | 2.13 | 10.34 | 80 | 2.03 | 2.11 | 1.8 | 14.4 | 727.52 |
| 3/0 | 85.24 | B | 19 | 2.39 | 11.61 | 80 | 2.03 | 2.11 | 1.8 | 15.67 | 897.84 |
| 4/0 | 107.18 | B | 19 | 2.68 | 13 | 80 | 1.52 | 1.67 | 1.4 | 16.44 | 1097.15 |
| 250 | 126.94 | B | 37 | 2.09 | 14.2 | 95 | 2.41 | 2.56 | 2.2 | 19.02 | 1340.08 |
| 300 | 152.39 | B | 37 | 2.29 | 15.54 | 95 | 2.41 | 2.56 | 2.2 | 20.36 | 1586.07 |
| 350 | 177.29 | B | 37 | 2.47 | 16.79 | 95 | 2.41 | 2.56 | 2.2 | 21.61 | 1825.98 |
| 400 | 202.53 | B | 37 | 2.64 | 17.96 | 95 | 2.41 | 2.56 | 2.2 | 22.78 | 2068.12 |
| 500 | 252.89 | B | 37 | 2.95 | 20.04 | 95 | 2.41 | 2.56 | 2.2 | 24.86 | 2548.31 |
| 600 | 304.24 | B | 61 | 2.52 | 22 | 110 | 2.79 | 2.89 | 2.5 | 27.58 | 3084.92 |
| 750 | 380.99 | B | 61 | 2.82 | 24.64 | 110 | 2.79 | 2.89 | 2.5 | 30.22 | 3816.9 |
| 1000 | 506.04 | B | 61 | 3.25 | 28.4 | 110 | 2.79 | 2.89 | 2.5 | 33.98 | 5002.6 |
We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.
ISO9001:2008, OHSAS, CCC, TUV Certifications.
Packing and Delivery:

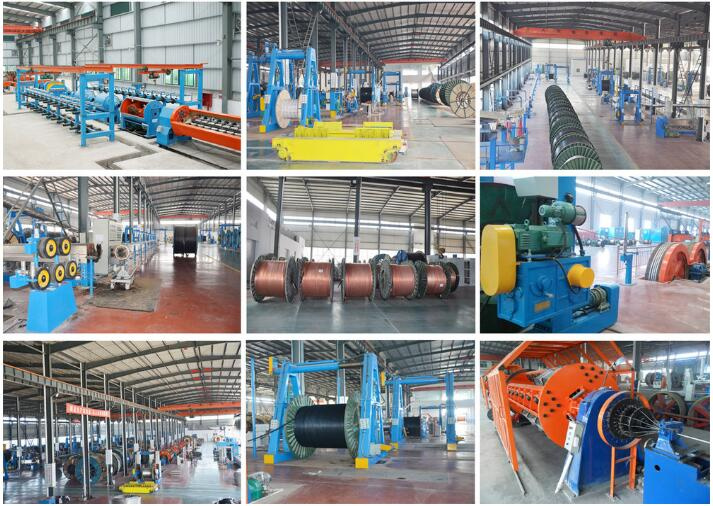

Production Line:

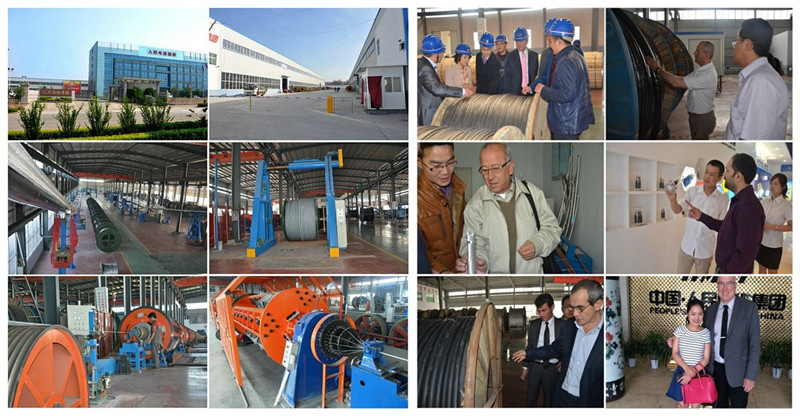

Our Company:
People's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
FAQ:
Q: Do you accept customize?
A: Yes, we have our own factory, all communication cables are customized.
Q: Can you print our logo or company name?
A: Yes, we could print your logo or company name on our products.
Q: Can you design for us?
A: Yes, we have professional designer, please tell us your requirement, let us do it for you.
Q: Is it possible to get a free sample?
A: Yes, stock samples are free, but shipping cost you collect. We could also customize sample for you,the specific price will be confirmed according to the sample's workmanship.If we have a further cooperation in the future, the sample fee will be returned.
Q: What is your MOQ?
A: Usually, MOQ of communication cable is 1,000 meter, MOQ of rf connector is 500 pcs. But depend on the different material, size and workmanship, the MOQ will be changed.
Q: How long can we receive your quotation?
A: If your information is very detail, quotation will be offered within 6 hours. In order to receive our quotation as soon as possible, please give us following information:
1) Type; 2) Size; 3) Specification; 4) Quantity.
If it is possible, please also provide with pictures or design for checking. Sample will be best for clarifying.
Q: Do you have a range of stock items for sale?
A: We have enough neutral storage for hot-selling items.
Q: What is your delivery time?
A: Usually 7-10 days. According to the product and quantity, delivery time will have different.
Contact information:
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
Fax: 86-371-55632837
Web: www.renmincable.com.cn & www.rmcable.com
For more information, please kindly contact us freely!
Welcome your inquiry of houseing wires, please kindly inform us the section area, material, application, quantity you needed, so that we could quote accordingly.
| Prod Model: |
house wire |
| Product Name: |
Copper Conductor Tw Thw Building House Wire |
| Type Of Comanpy: |
Manufacturer |
| Standard: |
GB 5023.1~7-1997 IEC 60227 |
| Certificate: |
ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc |
| Product Model: |
BV, Blv, BVV, Blvv, BVVB, Blvvb, RV, Rvb, Rvs, Rvv |
| Rated Voltage: |
300/300V, 450/750V |
| Core Number: |
Single, 2, 3 or 4 Cores |
| Package: |
Packing in Rolls or as Your Requirement |
| Country Of Origin: |
Professional Manufacturer of 25 Years in China |
| Advantages: |
High Quality, Competitive Price, Fast Delivery |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Rmjt |
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
