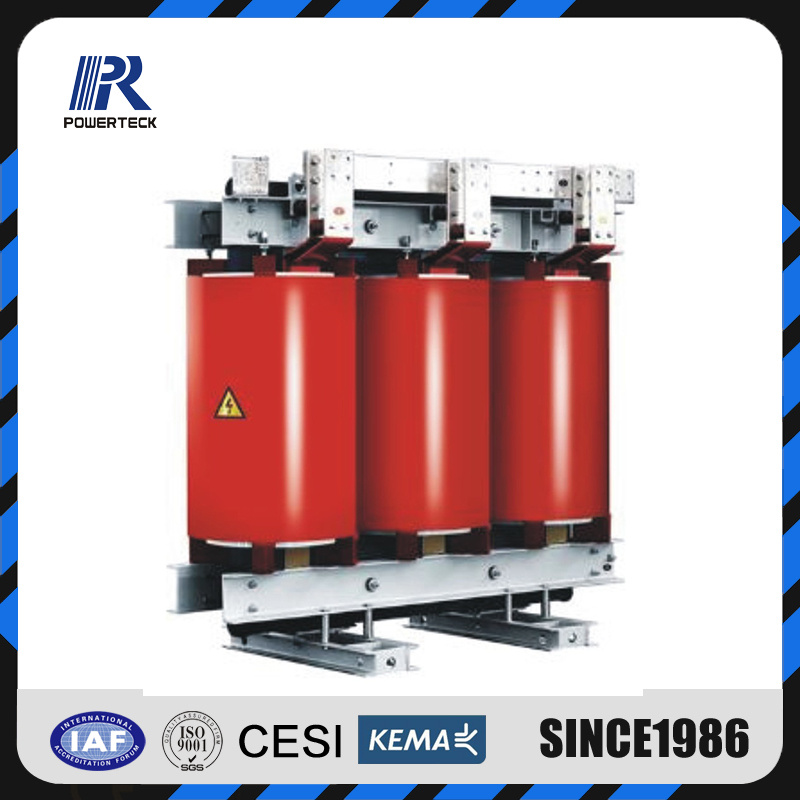

11kv 22kv 33kv 400kVA Cast Resin Dry Type Transformer
| Price: |
US $ 1500-100000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
SC(B)type epoxy series casting dry type transformer
Product description
Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically. The core is made of high-permeable grain-orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials, scientific management, and perfect inspection means, our products have the following features:
The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life.
The high and low voltage systems are cast under vacuum, thus the coil will not absorb moisture; the clamps of core are subjected to corrosion resistant treatment and it may run under high temperature or other serious environments.
Main technical data for 10kV SC(B)-30-2500 dry type transformer | Rated power (kVA) | High voltage
(kV) | H.V.Tap
(kVA) | Low
Voltage
(kV) | Vector group |
Short circuit impedance | No-load loss
(W) | On-load loss
(W) | No-load
Current
(%) | Insulation
class | Noise
(dB) |
| SC(B)9 | SC(B)10 | SC(B)9 | SC(B)10 |
| 30 | 6
6.3
10
10.5
11 | ±5%
+2×2.5% | 0.4 | Yyn0
Dyn11 | 4 | 220 | 1901 | 750 | 710 | 2.3 | F | 40 |
| 50 | 310 | 270 | 1060 | 1000 | 2.2 | 40 |
| 80 | 420 | 370 | 1460 | 1380 | 1.7 | 40 |
| 100 | 450 | 400 | 1670 | 1570 | 1.7 | 40 |
| 125 | 530 | 470 | 1960 | 1850 | 1.5 | 41 |
| 160 | 610 | 540 | 2250 | 2130 | 1.3 | 42 |
| 200 | 700 | 620 | 2680 | 2530 | 1.3 | 42 |
| 250 | 810 | 720 | 2920 | 2760 | 1.1 | 44 |
| 315 | 990 | 880 | 3670 | 3470 | 1.1 | 46 |
| 400 | 1100 | 980 | 4220 | 3990 | 1.1 | 46 |
| 500 | 1310 | 1160 | 5170 | 4880 | 0.9 | 47 |
| 630 | 1510 | 1340 | 6220 | 5880 | 0.9 | 47 |
| 630 | 6 | 1460 | 1300 | 6310 | 5960 | 0.9 | 47 |
| 800 | 1710 | 1520 | 7360 | 6960 | 0.9 | 48 |
| 1000 | 1990 | 1770 | 8610 | 8130 | 0.9 | 48 |
| 1250 | 2350 | 2090 | 10260 | 9690 | 0.9 | 49 |
| 1600 | 2760 | 2450 | 12400 | 11730 | 0.9 | 50 |
| 2000 | 3400 | 3050 | 15300 | 14450 | 0.7 | 52 |
| 2500 | 4000 | 3600 | 18180 | 17170 | 0.7 | 55 |
Main technical data for 35 kV SCB(B)-50~2500 dry type transformer | Rated power (kVA) | High voltage
(kV) | H.V.Tap
(kVA) |
Low
Voltage
(kV) | Vector group |
Short circuit impedance | No-load loss
(W) | On-load loss
(W) | No-load
Current
(%) | Insulation
class | Noise
(dB) |
| SC(B)9 | SC(B)10 | SC(B)9 | SC(B)10 |
| 50 | 35
38.5 | ±5%
+2×2.5% | 0.4 | Yyn0
Dyn11 | 6 | 500 | 450 | 1500 | 1430 | 2.8 | F | 53 |
| 100 | 700 | 630 | 2200 | 2090 | 2.4 | 56 |
| 160 | 880 | 790 | 2960 | 2810 | 1.8 | 58 |
| 200 | 980 | 880 | 3500 | 3330 | 1.8 | 59 |
| 250 | 1100 | 990 | 4000 | 3800 | 1.6 | 60 |
| 315 | 1310 | 1180 | 4750 | 4510 | 1.6 | 61 |
| 400 | 1530 | 1380 | 5700 | 5420 | 1.4 | 62 |
| 500 | 1800 | 1620 | 7000 | 6650 | 1.4 | 63 |
| 630 | 2070 | 1860 | 8100 | 7700 | 1.2 | 63 |
| 800 | 2400 | 2160 | 9600 | 9120 | 1.2 | 66 |
| 1000 | 2700 | 2430 | 11000 | 10450 | 1.0 | 66 |
| 1250 | 3150 | 2840 | 13400 | 12730 | 0.9 | 67 |
| 1600 | 3600 | 3240 | 16300 | 15490 | 0.9 | 68 |
| 2000 | 4250 | 3830 | 19200 | 18240 | 0.9 | 69 |
| 2500 | 4950 | 4460 | 23000 | 21850 | 0.9 | 73 |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE POWERTECH:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-570-5657760
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
| Prod Model: |
SCB |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Powertech |
