33kVA Automatic Step Voltage Regulator
| Price: |
US $ 10000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SVR-3 |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Frequency: |
Industrial Frequency |
| Usage: |
SVR |
| Brand: |
Powertech |
Product Description

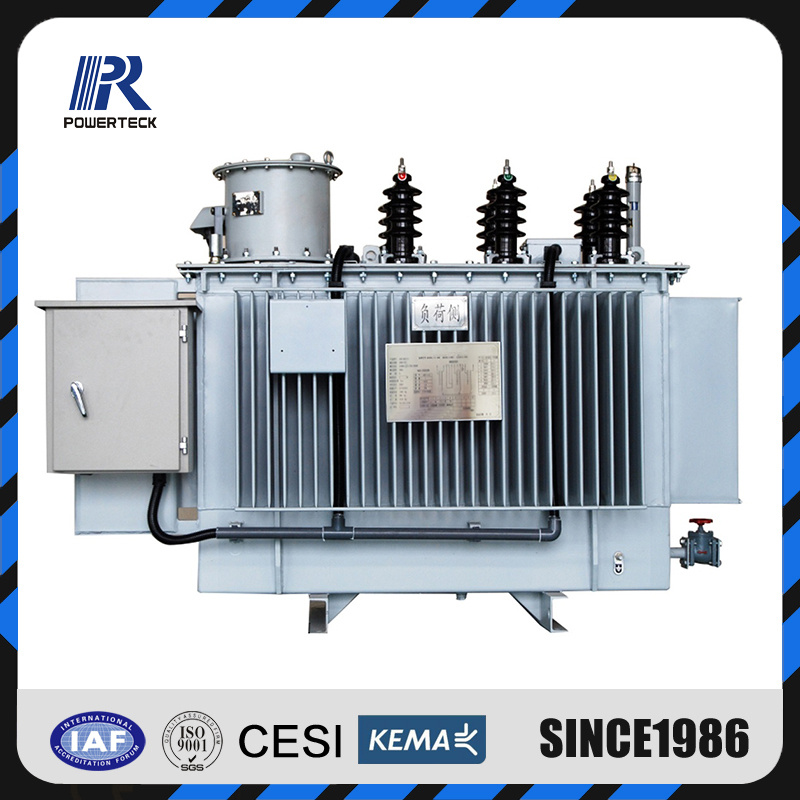

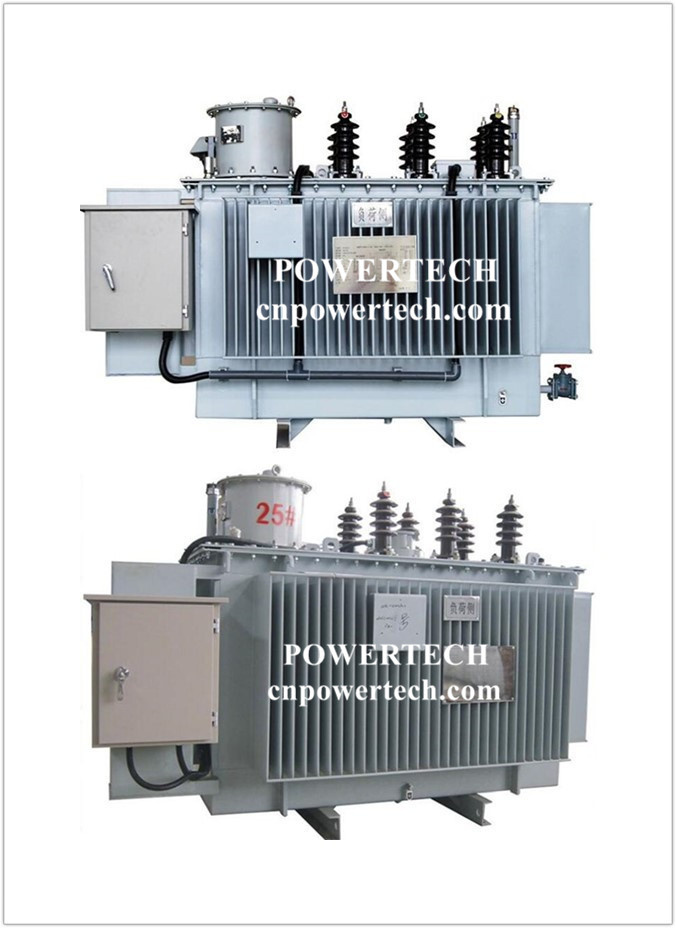

SVR-3 type Three phase Automatic Step voltage regulator
1.General
The SVR-3 type feeder automatic step voltage regulator is actually a three phase oil immersed auto-transformer with SVR controller and gathering sampling of voltage ¤t signal, on load tap charger controlling device to achieve gird more efficient from adjust the load character by increase and decrease the voltage.
So This SVR is eqv. To a transformer equipped with on load tap charger with SVR controller sampling voltage and current data and on load tap charger steps from current transformer and voltage transformer and limit switches.
2.Main features
+High breaking capacity tap charger from self-developed technology, More reliable and more steps 2.5% each by Max 16 steps( totally 40%);
+With SVR type Smart controller, a self-developed technology, GPRS/GSM, Blue-tooth.
+With self-protection LOCK-OUT functions: Line fault, Overload, Over Current/ Under-voltage
+With adjustable voltage datum and step scope limit, step draw delay, data setting.
3.Main technical parameter| Item | Parameter |
| Rated voltage | Under 6.9kV | 10kV up to 22kV | Under 35kV |
| Rated capacity | Less than 4000kVA | Less than 12500kVA | Less than 24000kVA |
| No of phases | Three phase |
| Cooling method | ONAN |
| Vector group | Ya0 |
| Steps | 7/9/16* steps |
| Mechanical life | 1000,000 times |
| Electrical life | 50,000times |
| Voltage scope | 20%, 30%,40% |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
