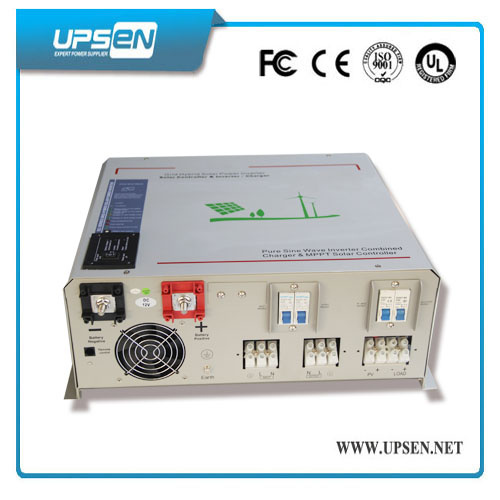

12/24/48V off Grid Low Frequency Inveter with LCD Display
Model: Solar Inverter Controller All in one Cosmos Star Series 1000W-6000W (1ph in/1ph out)
Key Features:
1: LCD&LED Screen for option

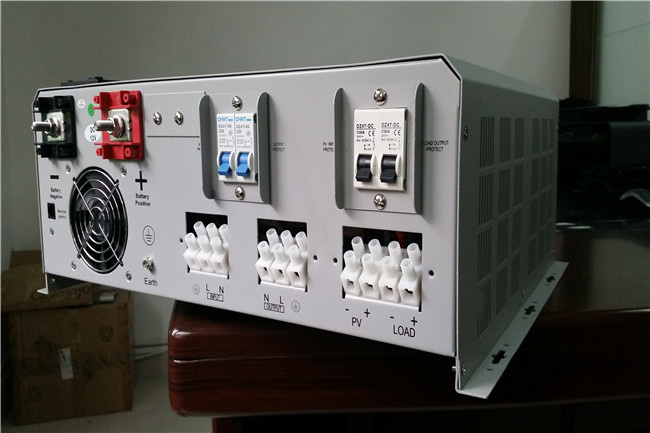

2: Manual control input&output breakers
3: AC Grid priority & battery priority working mode as selectable
4: Inbuilt MPPT 20/30/40/50/60A, with DC Voltage 12/24/48VDC
5: Remote control & RS232 communication port for the Inverter 6000w
6: Four stages smart charging, charging current adjusted automatically
7: DIP switch optional: Selectable charging voltage for Various battery type
8: off grid solar system solutotion,which is a combination of big power inverter and controller
9: AC grid mode: AC Bypass supplies load when AC is normal, battery invert AC supplies load when AC is off
10: Working modes switches automatically-AC Grid bypass mode, Inverter mode,AC charging mode,solar charging mode
Technical Specification
| Mode NO. |
CS600 |
CS1000 |
CS2000 |
CS3000 |
CS4000 |
CS5000 |
CS6000 |
Rated Power |
600W |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
AC INPUT |
Phase&Waveform |
Single pahse&Pure Sine Wave |
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
Fequency |
50HZ/60HZ(Auto adjust) |
Voltage range |
95-127VAC/194-253VAC |
Frequency range |
48-54HZ/58-64HZ |
AC Output |
Waveform |
Pure Sine wave and single phase |
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
Frequency |
50HZ/60HZ |
Peak Power |
1800W |
3000W |
6000W |
9000W |
12000W |
15000W |
18000W |
Battery | |
Battery DC |
12/24VDC |
12/24VDC |
12/24/48VDC |
24/48VDC |
MAX charging cunrrent |
20A-75A |
Battery type |
GEL,AGM,Sealed lead acid |
MPPT Controller | |
PV Input |
15-30VDC For 12VDC/30-55VDC For 24VDC |
MAX charging cunrrent |
20/30/40/50/60AMP |
MAX Ouput current |
15A |
for DC laod |
Transfer efficiency | |
MPPT efficiency |
more than 95% |
Line Mode |
more than 95% |
Battery Mode |
more than 85% |
Power Saver |
Available when load is less than 50A |
Transfer time |
10ms |
Indicator | |
7-LED Indicators |
Left to right:1.Line Mode(Green),2.Inverter Mode(Green),Charging Mode(Yellow),4.Full Charged(Green), |
5.Over Temp(Red),6.Over Load(Red),7.Saving Mode(Green) |
2-LED Indicators on MPPT |
Power/CHG Mode |
Dimension |
486*400*181mm |
486*432*181mm |
Weight |
22KG |
26KG |
28KG |
33KG |
45KG |
52KG |
56KG |
Competitive Advantages:
1: Three Years' warranty for pure sinewave inverter, and 1% free Set or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
