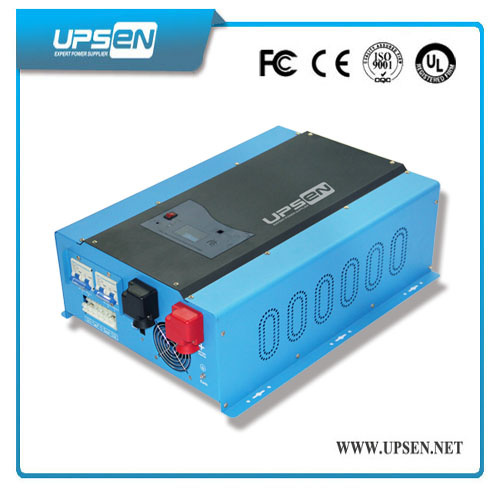

Pure Sine Wave Inverter Home Inverter Power Inverter with UPS Function for TV, Light, AC, Fan, Bulb and Fridge Use
| Price: |
US $ 80/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
DC AC Home Inverter / Power Inverter Quick View
1: With 12V 24V 48Vdc to 220V 230V 240Vac or 110V 115V 120Vac
2: Inverter Inbuilt Battery Charger 35 - 100Amp
3: Pure Sine Wave Output
4: Low Frequency Inverter Model inbuilt copper isolation transformer
Power Inverter Features- Pure sine wave output (THD<3%), available for sensitive loads.
- High efficiency up to 95% under line mode, and 88% for Battery Mode.
- Fast and powerful charger with 35A - 100A.
- 4-step progressive charging, 7 battery type selector.
- Accept generator's energy output.
- Automatically transfer between battery and line modes.
- Microprocessor control guarantees high reliability.
- Bypass without battery connected.
- Remote control function.
- Protection against:Over load, over temperature, over charging, low battery.
- Reverse connection(optional by hard connector) .
- Blackouts.
Technical Specification| Power Star Series |
| Model No. | PS Series |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| AC Input |
| AVR Function | Available for Option |
| Waveform | Pure Sine Wave |
| Voltage | 120VAC/230VAC |
| Acceptable Voltage | 194-243VAC\164-243VAC(wide mode) | 154VAC~273VAC |
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | 154Vac±4% |
| Line Low Return | 95V±4%/194(164 wide mode±4%) | 164Vac±4% |
| Line high Transfer | 135V±4%/253±4% | 273Vac±4% |
| Line high Return | 127V±4%/243±4% | 263Vac±4% |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | 40Hz±0.3 for 50Hz |
| Line high Transfer | 55Hz for 50Hz, 65Hz for 60Hz | 80Hz±0.3 for 50Hz |
| AC Output |
| Waveform | Pure Sine Wave(bypass mode sync to input) |
| Voltage | 120/220/230/240VAC(bypass mode sync to input) | 230VAC(bypass mode sync to input) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) |
| Peak Power | 3 times of rating power |
| Short Circuit Protection | Yes,shutdown after 10ms | Yes,shutdown after 10s |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | 48V |
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | 40Vdc |
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | 44Vdc±1.2Vdc |
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | 40Vdc±1.2Vdc |
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | 64Vdc±1.2Vdc |
| Max Charging Current | 35A/70A | 70A | 85A | 100A |
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | 62.8V |
| Transfer Efficiency |
| Line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 25 Watts | <75W |
| Indicators |
| 7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode |
| (green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged |
| (green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded |
| shutdown(red lighting),LED7 Saving Mode(green lighting) |
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting),Alarm(red lighting) |
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horizontal is turning the inverter off. |
|
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS-232/USB(custom-made) |
| Enviromental |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 18 | 20 | 22 | 35 | 38 | 40 | 60 | 66 | 70 |
| Dimension L*W*H | 442*218*179mm | 598*218*179mm | 750*520*310mm |
| *Specification is subject to change without prior notice. |
| Prod Model: |
PS Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection: |
Short Circuit |
| Color: |
Blue |
| Capacity: |
1kw-12kw |
| DC Voltage: |
12/24/48VDC |
