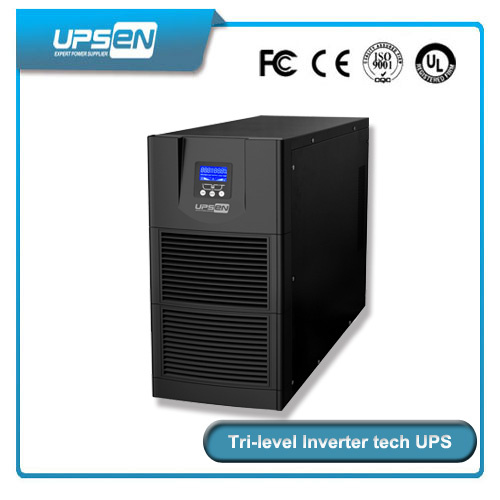

High Frequency Online UPS Queen Star Series 1K-3Kva (1ph in/1ph out) - Latest Three level inverter control tech

UPS Advantages:

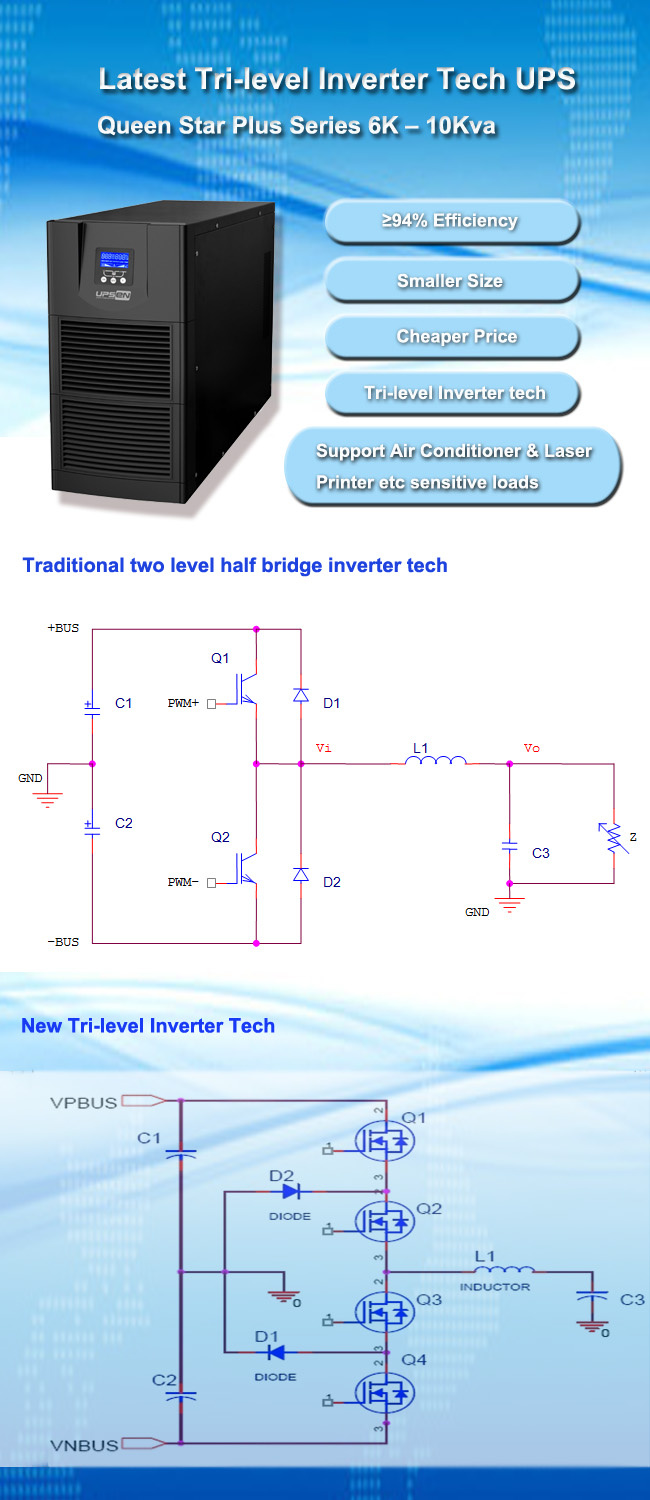

1: Latest Tri-level inverter control tech, makes UPS whole efficiency ≥94%, and improve UPS load capacity to support Air Conditioner, Laser Printer etc sensitive loads.

2: Latest soft switch tech in the boost PFC, enable to reduce the PFC IGBT's Voltage spike and switch loss, and improve the UPS capability to resist lighting and Instantaneous over-voltage.

3: Frequency multiplication controlled PFC circuit to reduce the volume of magnetic components, and makes UPS more smart and efficient.

4: PFC and INV adopts hardware current limit design, effectively accelerate the response time of current limit and improve the reliability of UPS

5: More optimized structure layout, makes the UPS size smaller.
6: More cost-save price

UPS Main Features

1: Latest Tri-level inverter control tech, whole UPS high efficiency ≥94% Support sensitive loads like Air Conditioner, Laser Printer etc 2: True online double conversion technology, Pure Sine Wave Output.

3: 0.8 Output Power Factor, Digital LCD Screen, Zero transfer time.

4: DSP Technology, compact design, cost-save price

5: Active input power factor correction (PFC).

6: Protection against all types of power problems.

7: Wide range of input voltage and frequency.

8: Active Load Management, cold start function.

9: Sufficient Expansion Slots for USB,AS400,CMC monitoring,SNMP,RS485 and EMD
environmen monitoring .

10: Equipped with maintenance bypass switch.

11: Generator Supportable.

12: Sealed lead acid, maintenance free battery.

Technical Specification

Queen Star Plus Series 6K - 10K Technical Specification
Index	Q6K Plus	Q6KL Plus	Q10K Plus	Q10KL Plus	Comments
Input
Input voltage
Rated voltage	220VAC
Phase	Single phase with ground
Turn on voltage range	(120±5~274±5)VAC
Bypass voltage range	(60±5~300±5)VAC				Could be adjusted by software.
Bypass low loss	60VAC~220VAC(default 60VAC)
Bypass low comeback	Low loss +5VAC
Bypass high loss	220VAC~300VAC(default 300VAC)
Bypass high comeback	High loss -5VAC
Line low loss /comeback	(120±5) VAC /(140±5) VAC				load≤50%
	(150±5) VAC /(165±5) VAC				50%
	(160±5) VAC /(175±5) VAC				80%
Line high loss/comeback	(274±5)VAC/(260±5)VAC
Input frequency
Rated frequency	50Hz
Frequency low loss	(40~49) ±0.2Hz(default:46Hz)				Could be adjusted by software.
Frequency low comeback	Frequency low loss +0.5Hz
Frequency high loss	(51~60)±0.2Hz(default:54Hz)
Frequency high comeback	Frequency high loss -0.5Hz
Input power factor
It power factornpu	> 0.99				Q6K Plus & Q6KL Plus: 220VAC, full R load Q10K Plus & Q10KL Plus: full R load
Generator	Support generator input				Generator rating ≥2*UPS rating
Input current
Rated current	25A	27A	41A	43A
Input THDI	10%
Output protection
Rating protection	32A Breaker		50A Breaker
Output power
VA/watt	6000/4800		10000/8000
Rated voltage	220VAC				Sine wave
Voltage range	200/208/220/230/240VAC				Q6K Plus & Q6KL Plus: Could be adjusted by software. 10% derating for 208VAC/200VAC.
Voltage regulation	±1%
Voltage distortion	≤6%				Full RCD load
	≤2%				Full R load
DC offset	≤200mV
Transient response	≤9%				R load 0%~100%~0%
	≤6%				R load 20%~100%~20%
Transient recovery	≤60ms voltage recovery to 90%				Full RCD load
Bypass output before turn-on	YES
Crest ration	3:1
Output frequency range
Normal mode	1,Same as input frequency(46Hz~54Hz) 2,50Hz(Input frequency>54Hz or Input frequency<46Hz)
Battery mode	(50+0.1) Hz
Slew rate	1 Hz/Sec
Efficiency
Normal mode	> 93%
Battery mode	> 91%
Overload
Normal mode/ battery mode	Overload warning only				105%±5%≤load
	1min,then transfer to bypass and alarm.				105%±5%125%±5%
	30S,then transfer to bypass and alarm.				125%±5%135%±5%
	100mS, then transfer to bypass and alarm.				load>135%±5%
Automatically retransfer	YES
Short protection
Normal/ battery mode	YES
Transfer time
Normal to battery mode	0mS		0mS
Battery to normal mode	0mS		0mS
Normal to bypass mode	<4mS		0mS		Q6K Plus & Q6KL Plus: 0mS (option)with load
Bypass to normal mode	<4mS		0mS
Battery and charger
Battery
Rated voltage	192VDC
Type/Rating	Sunshine 7AH/12V		Sunshine 9AH/12V
Battery quantity	16 PCS		16 PCS
Backup time	> 14min		>8min		Half load
Protection
Low alarm voltage/ comeback voltage	(180.8V±4V)/ (188.8V±4V)
Shutdown voltage/ comeback voltage	(176V±4V)/ (184V±4V)	(176V±4V)/ (184V±4V)	(176V±4V)/ (184V±4V)	(176V±4V)/ (184V±4V)	Load < 1000W
	(152V±4V)/ (160V±4V)	(160V±4V)/ (168V±4V)	(152V±4V)/ (160V±4V)	(160V±4V)/ (168V±4V)	Load>= 1000W
DC protection
Overcharge protection/ comeback voltage	(249.6V±4V) / (216V±4V)
Leakage current	< 500uA
Over discharge protection	14.5h				Could be set by software
Battery test
Battery weak	YES
Battery fault	YES
Charger
Output voltage	(219.2±3)VDC
Charge time	7 hours to 90% capacity
Charge current	1A	5.5A	1A	5.5A
Interface
Alarm silence	YES
DC power turn-on	YES
Automatically retransfer	YES
Audio alarm
Battery mode	Beep/4s
Battery low/ charger fault	Beep/1s
UPS fault	Continue beep
Overload	Beep/1s
Bypass mode	Beep/2Min
L/N inverse	Beep/2Min
Communication
RS232 interface	YES
Intelligent slot	YES
Monitor software	Appending with UPS
Cooling
Force air cooling
Display
LCD/LED displays UPS status
Environment
Work temperature	0ºC~40ºC
Altitude	<1000m
Audible noise	≤55dB		≤60dB
Storage temperature	-15ºC~45ºC
Work humidity	20%~95%
Standard
EMS
ESD	IEC61000-4-2				Level4
RS	IEC61000-4-3				Level3
EFT	IEC61000-4-4				Level4
Surge	IEC61000-4-5				Level4
EMI
Conducted	EN55022				Class B
Radiated	EN55022				Class B
Safety
Safety	GB4943-2001/IEC62040-1
Transportation
Drop test	GB-T4857-18
Vibration test	B-WR1-129(GB-T14715-93)
Machinery features
Size
Outline dimension and net weight
LWH(mm)	533260560	425190328	533260560	533260501
Net weight (Kg)	55kg	12.2kg	62kg	21kg
Optional functions
60Hz	Optional				Set by software
Converter mode	Optional				Set by software
ECO	Optional				Available and set by software
EPO	Optional
LCD display	Optional

Prod Model:	Queen Star Plus Series
Efficiency:	94%
Tech:	Tri-Level Inverter Tech
Display:	Digital LCD Display
Advantages:	Cheaper Price and Smaller Size
Phase:	Single Phase
Type:	On-line
Protection:	Over Voltage, Over Current, Short Circuit
Application:	Home, Office, Communication, Data Rooms, Computers
Standby Time:	Both
Equipment Mode:	Both
Brand:	Upsen
