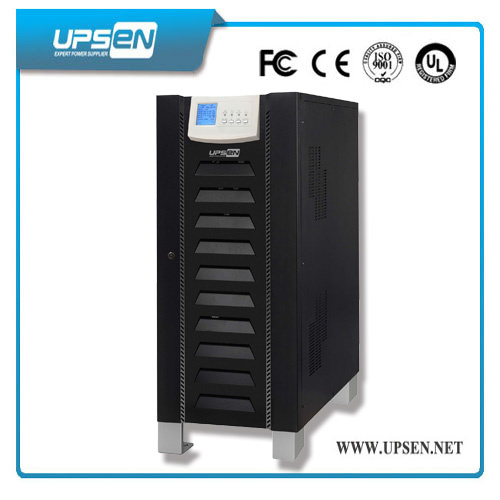

Three Phase 380V 400V 415VAC Low Frequency Online UPS (10K-200kVA)1: UPS with Three Phase 380/400/415VAC or 190/208/220VAC Input/Output
2: Low Frequency UPS with IGBT inverter technology
2: Advanced digital circuit UPS Power system
3: EPO function for UPS
UPS ApplicationLarge-medium computer data center, industrial process and other mission-critical equipment
UPS Key Features - Online double-conversion.
- DSP technology guarantees high reliability.

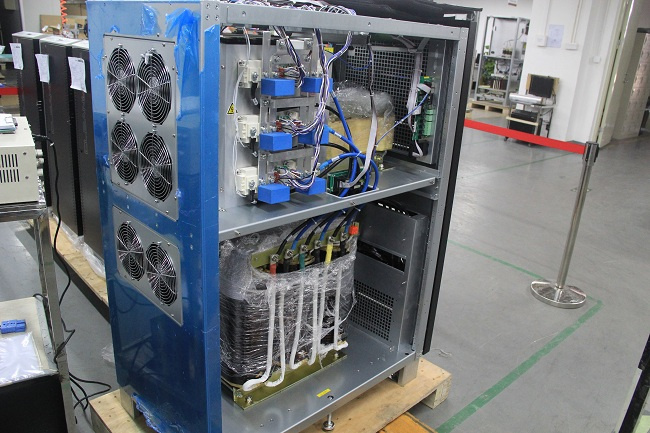

- True galvanic isolation transformer design.
- Control designed to withstand all kinds of loads.
- Intelligent battery management to prolong battery lifecycle.
- Redundant fan design and independent ventilation enhance durable operation under harsh environment.
- Adjustable battery numbers.
- Accept dual-mains input.
- Parallel operation with up to 4 units (option).
- Variety of communication options available.
| LS33 Series 10K - 200kVA |
| MODEL | LS33 10K | LS33 20K | LS33 30K | LS33 40K | LS33 60K | LS33 80K | LS33 100K | LS33 120K | LS33 160K | LS33 200K |
| CAPACITY | 10kVA /8KW | 20kVA /16KW | 30kVA /24KW | 40kVA /32KW | 60kVA /48KW | 80kVA /64KW | 100kVA /80KW | 120kVA /96KW | 160kVA /128KW | 200kVA /160KW |
| INPUT |
| Nominal Voltage | 3 X 380VAC/400VAC (3pH + N) |
| Acceptable Voltage Range | 305VAC ~ 460VAC |
| Frequency | 46-54Hz or 56-64Hz |
| INVERTER |
| Nominal Voltage | 3 * 380VAC/400VAC (3pH + N) |
| Precision | Stationary: ±1%
Transitory: ±5% (load variations 100-0-100%) |
|
| Frequency | 50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz |
| Max. Synchronisation Speed | ±1 Hz/s |
| Waveform | Pure Sinewave |
| Total Harmonic Distortion (THDv) | <2% (Linear Load)
<5% (Non-linear Load) |
| Phase Displacement | 120o ±1% (balanced load)
120o ±2% (imbalances 50% of the load) |
| Dynamic Recovery Time | 1 cycle at 98 % of the static value |
| Admissible Overload | 110% for 10min; 150% for 60sec; >160% for 200ms |
| Admissible Crest Factor | 3: 1 |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |
| Imbalance Output Voltage @ 100% Unbalanced Load | <1% |
| Current Limit | High overload, short-circuit: RMS Voltage Limit
High Crest-Factor current: Peak Voltage Limit |
| STATIC BYPASS |
| Type | Solid state |
| Voltage | 3 X 380VAC/400VAC (3pH + N) |
| Frequency | 50/60 Hz |
| Activation Criterion | Microprocessor control |
| Transfer Time | Zero |
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms |
| Transfer to Bypass | Immediate, for overloads above 160% |
| Retransfer | Automatic after alarm clear |
| MAINTENANCE BYPASS |
| Type | Without interruption |
| Voltage | 3 * 400V (3pH + N) |
| Frequency | 50/60 Hz |
| Overall Efficiency | Line Mode | 90% | 91% | 92% | 93% |
| Battery Mode | 90% | 91% | 93% | 93% |
| BATTERY & CHARGER |
| Battery Type and Numbers | 12VDC* 16 PCS | 12VDC * 32 PCS (29~32 PCS adjustable) |
| Nominal Battery Voltage | 192 VDC | 384 VDC (Based on 32PCS batteries) |
| Charging Method | CC/CV |
| Precision | ±1% |
| Charging Current | Max.: 40 A |
| Charging Voltage | 216 VDC | 432 VDC (Based on 32PCS batteries) |
| PHYSICAL |
| Dimensions, D*W*H(mm) | 656*405*817 | 656*405*941 | 840*432*1140 | 975 *554 *1286 | 1200 *910 *1680 | 1500 *1140 *1800 |
| Net Weight (Kgs) | 180 | 205 | 295 | 330 | 451 | 519 | 950 | 1350 |
| * Product specifications are subject to change without further notice |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
