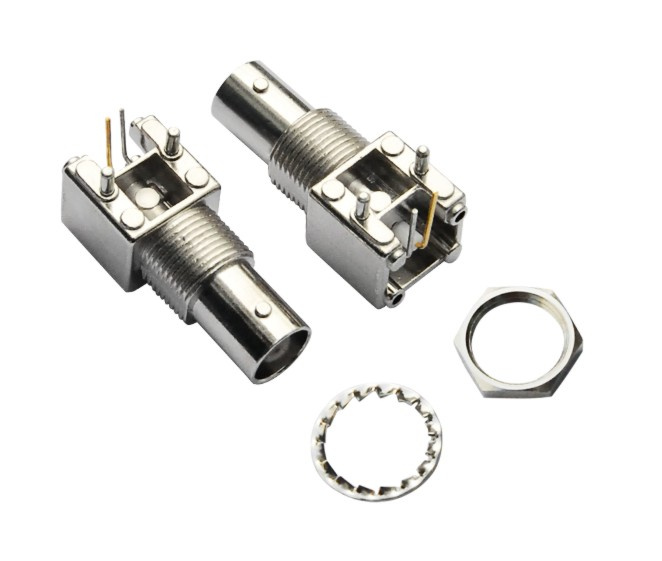

12.8 Mm 15.8 Mm Metal Sdi BNC Connectors

Name: 12.8 Mm 15.8 Mm Metal Sdi BNC Connectors
Brand: all-electronics-online.com
SKU: 724286355
Availability: InStock
Rating: 4.4 (52 reviews)

Price:	US $ 1.2/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Specifications
As a major enterprise of RF products in China, our company manufactures a full range of RF connectors and cable assembly.
Contact:
MOBIL: 13925799591
As a major enterprise of RF products in China, our company manufactures a full range
Of products, including:
1) MMCX RF coaxial connectors
2) MCX RF coaxial connectors
3) SMA RF coaxial connectors
4) SMB RF coaxial connectors
5) SMC RF coaxial connectors
6) SSMA RF coaxial connectors
7) SSMB RF coaxial connectors
8) SSMC RF coaxial connectors
9) TNC RF coaxial connectors
10) BNC RF coaxial connectors
11) N RF coaxial connectors
12) 7/16 (L29) RF coaxial connectors
13) 1.6/5.6 (L9) RF coaxial connectors
14) F RF coaxial connectors
15) 1.0/2.3 (CC4) RF coaxial connectors
16) UHF RF coaxial connectors
17) MINI UHF RF coaxial connectors
18) FME RF coaxial connectors
19) TAC RF coaxial connectors
20) Reverse polarity connectors
21) Plug for cell-phones and special purpose connectors
22) Coaxial terminations
23) Lightning arresters
24) Jumper cables
25) Inter-type adaptors
MAJOR TECHNICAL CHARACTERISTICS
Temperature Range
-55 to +155° C (PE Cable -40 to 85° C)
Vibration
100m/s (10-500Hz), 10g
Impedance
75 Ω
Frequency
DC to 11GHz
Working Voltage
1000V r. M. S at sea level
Withstanding Voltage
2500V r. M. S at sea level
Contact Resistance
Center contact
≤ 1m Ω
Outer contact
≤ 1m Ω
Insertion Loss
≤ 0.24dB(6GHz)
Insulation resistance
≥ 5000M Ω
Center Conductor Retention Force
≥ 0.56N
Voltage Standing Wave Ratio
Straight
≤ 1.15/6GHz
Right angle
≤ 1.25/6GHz
Durability(mating)
≥ 500cycles
MATERIAL AND PLATING
Body
Brass
Nickel plated
Pin Contact
Brass
Gold plated
Socket Contact
Beryllium or tin bronze
Gold plated
Resilient Contact
Beryllium-copper
Gold plated
Insulator
PTFE
Crimp Ferrule
Copper alloy
Nickel or gold plated
O-ring Sealing
6146 silicon rubber
APPLICABLE STANDARD
MIL=C-39012
CECC 22210
IEC 60169-16

Prod Model:	RH-801-0030
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	PCB Coaxial Connector
Coupling Mechanism:	Clamping Type
Brand:	Dosin

RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.

Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.

Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.

Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.

Our managing principles:Good quality, loyalty and common prosperity.
