CSPOWER BATTERY TECHNOLOGY LIMITED >> 120ah Battery Gel SLA 12 Volt Deep Cycle Solar Battery

120ah Battery Gel SLA 12 Volt Deep Cycle Solar Battery

120ah Battery Gel SLA 12 Volt Deep Cycle Solar Battery
Price: US $ 1-113/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
120AH AMP HOUR BATTERY gel SLA 12 VOLT 12V DEEP CYCLE SOLAR Battery


>  CSPOWER GEL Battery Characteristics

CG SERIES LONG LIFE DEEP CYCLE GEL BATTERY
Voltage: 12V
Capacity: upto 12V300Ah
Designed floating service life: 10~15 years @ 25 °C/77 °F.




>  SUMMARY FOR  SMF GEL BATTERY

CSPOWER deep cycle GEL battery is designed for frequent cyclic charge and discharge applications under extreme environments. By combining the newly developed Nano Silicone Gel electrolyte with high density paste, the Solar range offers high recharge efficiency at very low charge current. The acid stratification is highly reduced by adding Nano Gel.


>   Specification of 12V Sealed lead gel battery


CSPOWER MODEL
VoltageCapacityBattery Dimension (mm)Weight (kg)TerminalBolt
(V)(Ah)LengthWidthHeightTotal Height(±3%)
CG12-33123319613015516710.5T2M6×14
CG12-38123819816617217212.8T2M6×14
CG12-42/451242/4519816617417413.5T2M6×14
CG12-50125022913820821216T3M6×16
CG12-55125522913820821216.7T3M6×16
CG12-65126535016717817821T3M6×16
CG12-70127035016717817822T3M6×16
CG12-75127526016921121522.5T3M6×16
CG12-80128026016921121524T3M6×16
CG12-85/901285/9033117421421925.5T3M6×16
CG12-1001210030716921121627.5T4M8×18
CG12-100A1210033117421421929.5T4M8×18
CG12-1201212040717321023333.5T5M8×18
CG12-120A1212040717321023334.5T5M8×18
CG12-1351213534117328328841.5T5M8×18
CG12-150A1215048417124124141.5T4M8×18
CG12-1501215048417124124144.5T4M8×18
CG12-1601216053220621622249T4M8×18
CG12-1801218053220621622253.5T4M8×18
CG12-2001220052224021922556.5T5M8×18
CG12-200A1220052224021922558.7T5M8×18
CG12-2301223052224021922561.5T5M8×18
CG12-2501225052226822022570.5T5M8×18
Products will be improved without notice, please contact sales for specification in kind prevail.


>  CSPOWER CHARGING VOLTAGE AND SETTINGS

1. Constant voltage charging is recommended
2. Recommended float charge voltage: 2.27V/cell @20~25°C
3. Float voltage temperature compensation: -3mV/°C/cel l
4. Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
5. Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C
6.  Max. charge current allowable : 0.25C



>  Application for CSPOWER gel battery

1,Solar & Wind power systems
2,UPS system
3,Uninterruptible power supplies
4,Golf cart, Electric vehicle
5,Electric powered bicycle and wheelchairs
6,Marine equipment
7,Communication equipment
8,Power tools
9,Telecommunication systems
10,Fire & security systems






>  COMPLIED STANDARDS -- GEL battery 12V

1. IEC 60896-21/22
2. IEC 61427
3. ISO9001/14001/18001
4. Eurobat guide, long life
5. BS6290 part 4
6. GB/T 22473
7. CE
8. IATA and IMDG

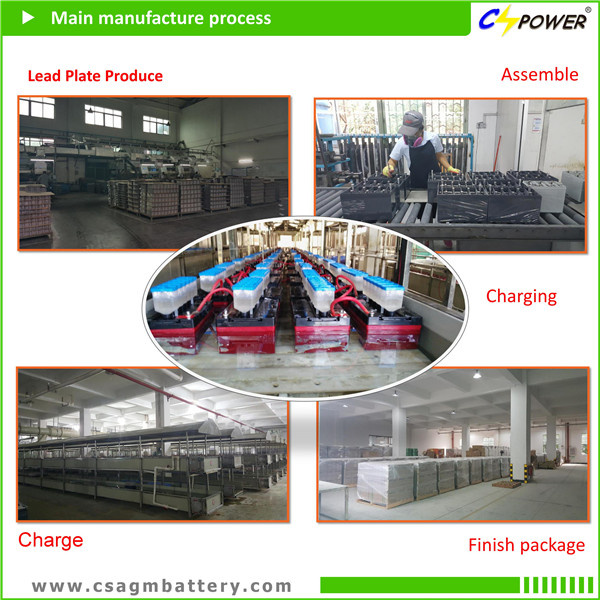

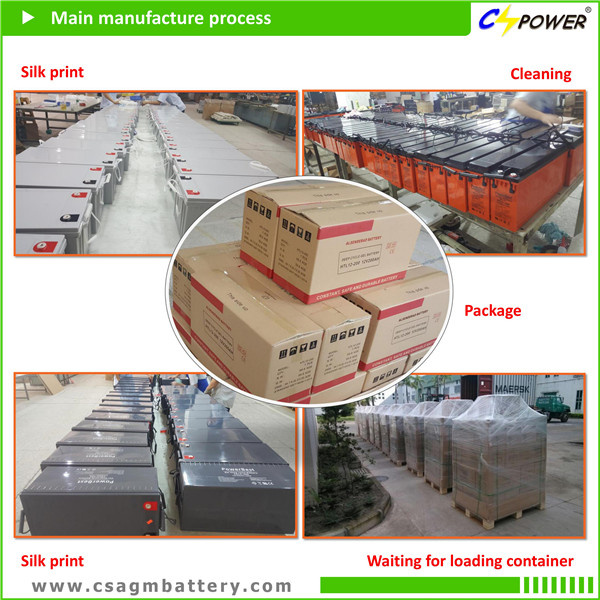

>  CSPOWER battery Factory






>  CSPOWER Battery Package






>  Why choose Cspower?

1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter
2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 & ISO
14001, products with CE/RoHS/TLC etc approval.
3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.
4) Competitive price help you  to occupy more market share
5) 20000KWH production capacity to guarantee the best deliver time
6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.



>  CSPOWER Battery Tags:
  • lead acid battery, AGM battery, GEL battery, valve regulated lead acid battery,VRLA battery, SLA battery,Maintenance free battery,sealed lead acid battery,rechargeable lead acid battery,lithium-ion battery, LiFePO4 Battery
  • 2V battery,long life gel battery,battery pack ,12V battery, battery for 48v system,6V solar ups battery
  • deep cycle deep acid battery, backup energy battery, deep cycle solar battery,solar panel battery,solar power storage battery,solar battery,home use storage battery
  • marine battery,telecom battery, UPS battery,industrial battery,automotive battery, spiral lead acid battery,starting lead acid battery, forklift battery,emergency lighting battery,Electric Vehicle batteries,Electric Wheel Chair battery, Power Tools battery

For more information,please kindly visit our website: http://www.csagmbattery.com. Or Contact with us directly :
Attn: Jessy
Cell: +8613613021776

120AH AMP HOUR BATTERY gel SLA 12 VOLT 12V DEEP CYCLE SOLAR Battery
Prod Model: CG12-120A
Battery Name: 120ah AMP Hour Battery Gel SLA 12 Volt 12V
Size: 407*174*210*233mm
Weight: 33kg
Color: Black / Dark Gray
Warranty: 3years
Material: 99.99% Pure Lead
Depth Of Discharge: 50% Dod Arrive 1200 Cycles
Expected Cycle Years: 15~20years
Terminal: M8
Certificates: Ce, IEC, ISO
Type: Lead-Acid Batteries
Usage: Boat
Nominal Voltage: 12V
Discharge Rate: Low Discharge Rate
Rechargeable: Chargeable
Shape: Sealed Mf Gel Battery 12V
Electrolyte: Gel
