121kwh Smart Lithium Battery Pack for Electric Bus
| Price: |
US $ 35500-48790/Set |
| Min Order: |
100/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
EV05S |
| Energy Density (Wh/Kg): |
121 |
| Working Voltage Range(V): |
350~511 |
| Thermal Management: |
Natural Cooling |
| Standard Battery Box Size: |
1030*630*240 (L*W*H) (mm) |
| (BMS) Operating Voltage: |
24VDC |
| Battery Box Quantities: |
5PCS |
| Cycle Life (Times): |
>2000(80% Dod) |
| Soc Estimation Accuracy: |
<5% |
| Thermal Management Methods: |
Natural Cooling |
| Application: |
Electric Bus, Electric Vehicles |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Rated Capacity: |
121kwh (Customized) |
| Standard Voltage: |
448V (Customized) |
| Usage: |
Pure Electric Bus |
Product Description
Customized High Power12V/24V/48V/60V/72V/96V/100V/120V/144V/....40AH/50AH/60ah/100AH/180AH/200AH .......Lithium ion Type car battery, Lithium Battery for EV Bus Hello. This is Benson from E-POW. E-POW is a pioneer in the lithium battery market and a unique lithium battery solution company. LiFePo4 and NMC(Li(NiCoMn)O2) are the major material which are good used in EV and ESS. In BMS fileds, E-POW market share is first in China.Lithium polymer battery modules in parallel or in series, can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools, unmanned airplane, golf cart, fork lift, cleaning car, electric wheelchair, etc. Product specification| EV BUS -- Solution Suggestion |
| Voltage(V) | Series and Parallel(S) | Capacity(kWh) | Battery pack box Combination | Box QTY | Energy Density | Cell QTY | Working voltage range(V) |
| 8m ~ 8.5m EV Bus priority recommended suggestion |
| 563.2 | 2P176S | 101.4 | 4A1 | 4 | 122 | 352 | 440~642.4 |
| 550.4 | 2P172S | 99 | 3A1+1A2 | 4 | 119 | 344 | 430~627.8 |
| 537.6 | 2P168S | 96.8 | 2A1+2A2 | 4 | 119 | 336 | 420~613.2 |
| 524.8 | 2P164S | 94.5 | 1A1+3A2 | 4 | 119 | 328 | 410~598.6 |
| 512 | 2P160S | 92.2 | 4A2 | 4 | 119 | 320 | 400~584 |
| >10m EV Bus priority recommended suggestion |
| 537.6 | 3P168S | 145.2 | 6A3 | 6 | 121 | 504 | 420~613.2 |
| 448 | 3P140S | 121 | 5A3 | 5 | 121 | 420 | 350~511 |
Box size: A1#box: 1030*630*240mm; A2#box: 1030*630*240mm; A3#box: 1030*630*240mm |

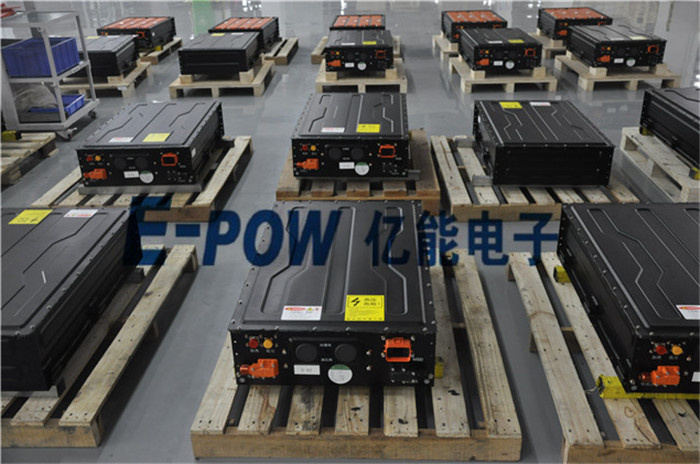

Product show

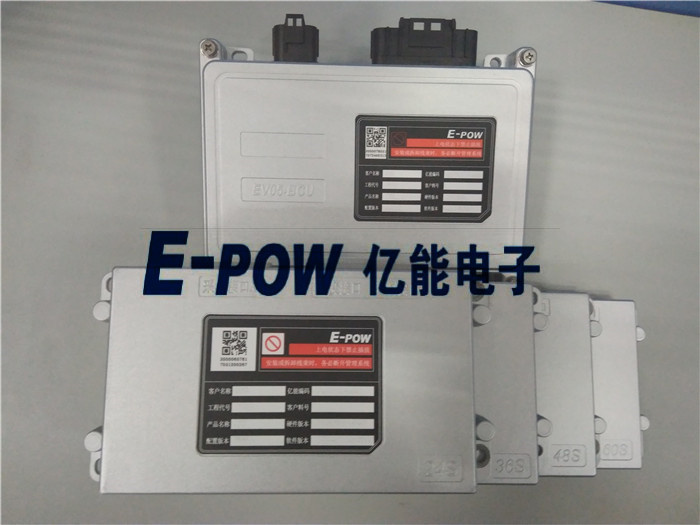

Battery quality control for after-saleAll of E-POW battery cells in a pack are with very high consistency.In a pack, each cell has its ownsole electronic code(ID number) for quality control after-sale. Assume one cell in a pack is damaged in any reason after several years later, we could provide a exactly same cell to the client to replace this damaged one(same voltage, capacity, impedance,etc.), in order to make sure all of the cells in this pack with very high consistency. E-POW has a strong system working for this. About E-POWHuizhou Epower electronics co., ltd (E-POW) was founded in 2006, mainly engaged in Electronic Vehicle and ESS product development, production, sales and services, is a leading provider of battery management system(BMS) with high tech and high market share. With high performance and high reliability, our BMS has been mass produced and widely used in Electronic Bus for many major international events , as well as commercial vehicles and passenger cars.E-POW has conducted a wide range of cooperation with many well-known companies. The produced BMS has passed strict testing and trial use of car manufacturers, batch supply realized.E-POW E-Power have total 800 staffs, including more than 230 research and develop staffs, and has strong technical strength, a number of employees with doctor and master degrees form a professionally technical team, also builds strong cooperation relationship with famous BMS institutes such as Beijing Jiaotong University, South China University of Technology. The products have won Software Products certification. E-POW has owned more than 100 patents about BMS and passed TS16949, ISO 90001, OHSAS18001, ISO14001 ,IRIS (rail transact certification) etc. quality management system, and obtained the title of China High-Tech enterprise. FAQQ What is the MOQ ?A 100pcs, because we are professional manufaturer.Q Can I mix different designs? A Sure!Q Can I get a lower price if I order large quantities?A Yes, cheaper prices with more bigger size orders.Q Can I add or delete items from my order if I change my mind ?A Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.Q Can I get the pre-production sample ?A Yes, we will send you pp sample, after you confirm, then we will start production.Q When you ship my order?A Normally 30 days after receiving your payment, but it can be negotiated based on order qty and production schedule. If special requirement, we can negotiate.Q How about the quality guarantee period?A three year! If special requirement, we can negotiate.Q How can you guarantee the production quality ?A Our production quality follow ISO9001, ISO16949, ISO 90001, OHSAS18001, ISO14001 ,IRIS, SGS, etc. standard . We have 10 years experience of QC team. We have strictly quality control system in our production process. We have many times inspection for each finished product before package,and Third party inspection acceptable.
Huizhou E-POWER electronics Co., Ltd was founded in 2006, advocating green, energy -saving and environmental protection as the future development concept, With R&D sales, manufacturing and services as a set, E-POWER is a professional supplier od battery management system and battery system assembly, Leading and with high market share in domestic. E-POWER moved to the new factory in Zhongkai that covers an area of 40000 square meters, equipped with advanced SMT production lines, automatic module lines, at the same time, including advanced test platforms such as charge and discharge, waterproof and dustproof, shock, extrusion, salt fog and so on to meet the production capacity and high quality products output. E-POWER successfully passed the TS16949, ISO14001 and OHSAS18001 certification, more than 400 patents have been applied and more than 300 patents have been authorized. E-POWER has strong technical strength, a number of employees with doctor and master degrees form a professionally technical team, obtained the tile of state High-Tech enterprise, With leading technology and high reliability team, our BMS have been widely used in Electric Bus for many maior international events like the Olympics Games(Beijing 2008), World Expo(Shanghai 2010), Asian Games ( Guangzhou 2010), World Ecomomic Forum Summer Davos(Tianjing2010 ).
As well as commercial vehicles and passenger cars of Changan, Great Wall, JAC, Beijing Automotive, GAC, Kinglong, Dongfeng, Foton, and so on. E-POWER has a conducted a wide range of cooperation with many well-know battery companies, such as Samsung, Toshiba, CALE, Guoxuan High-Tech, Lishen and so on.
