12kv Contact Box/Contact Box for ABB Switchgear/Spout

Name: 12kv Contact Box/Contact Box for ABB Switchgear/Spout
Brand: all-electronics-online.com
SKU: 835694395
Availability: InStock
Rating: 4.9 (96 reviews)

Price:	US $ 50-500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Application:	High-voltage
Brand:	Joyelectric
Material:	Epoxy Resin

Product Description

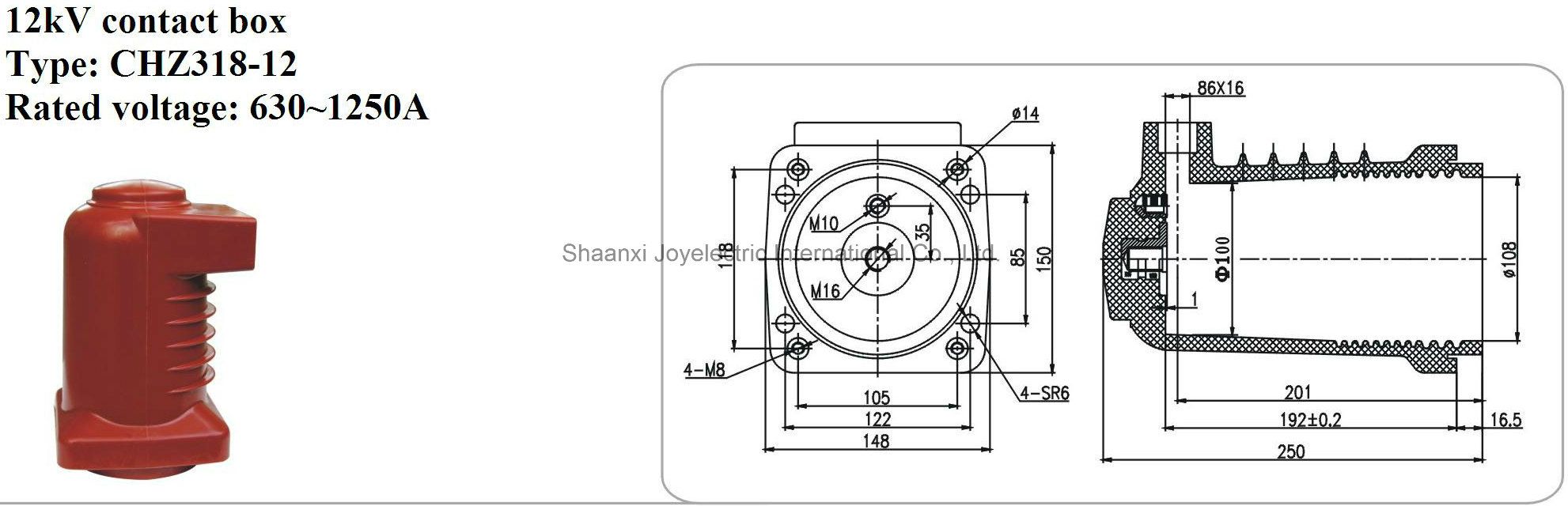

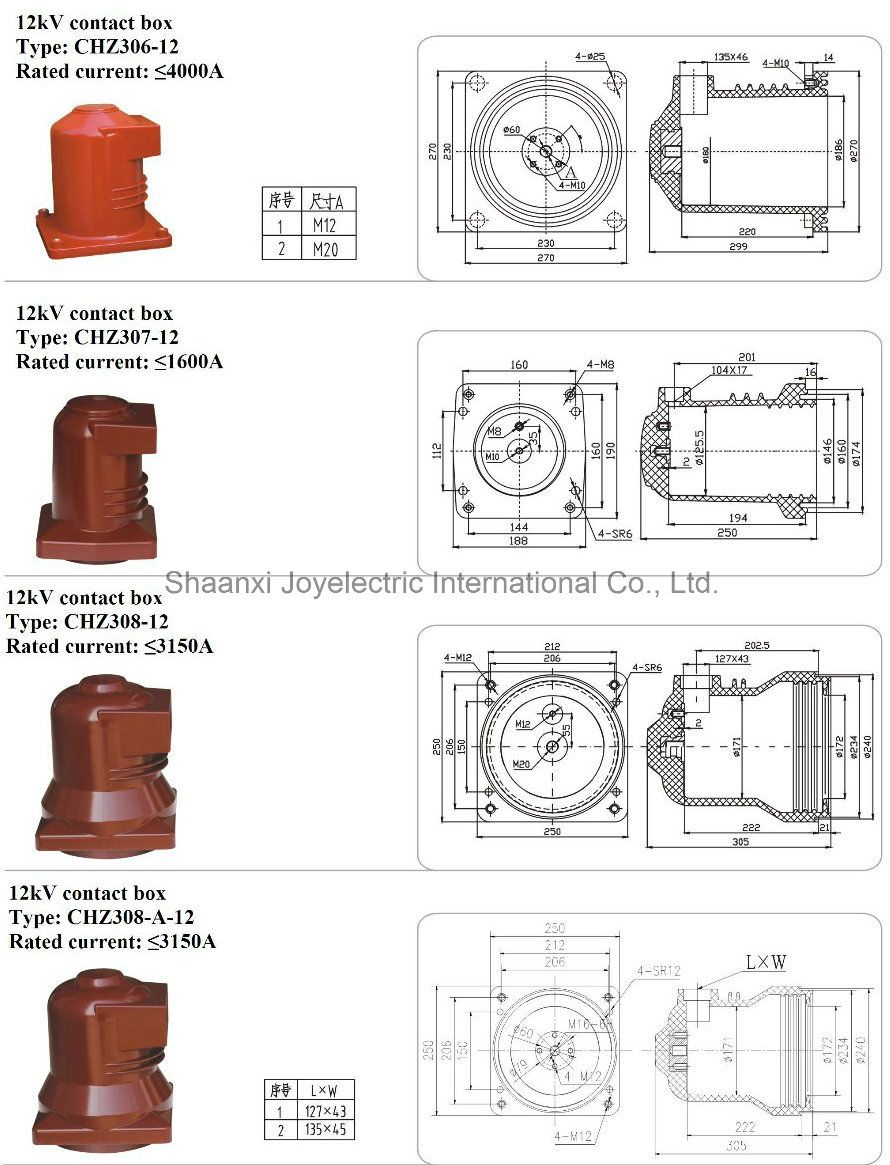

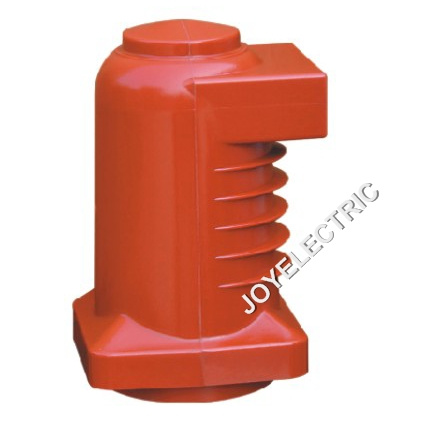

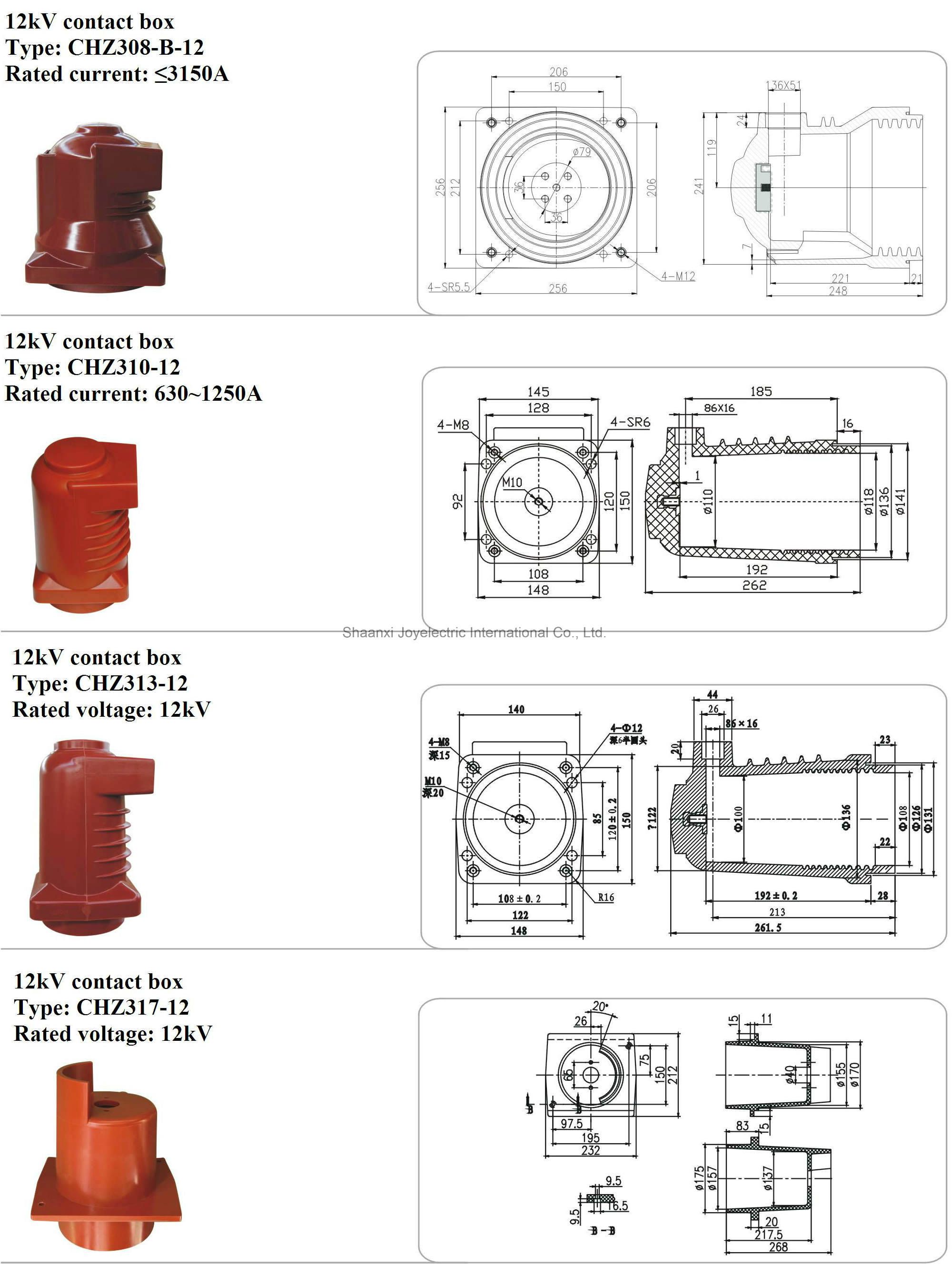

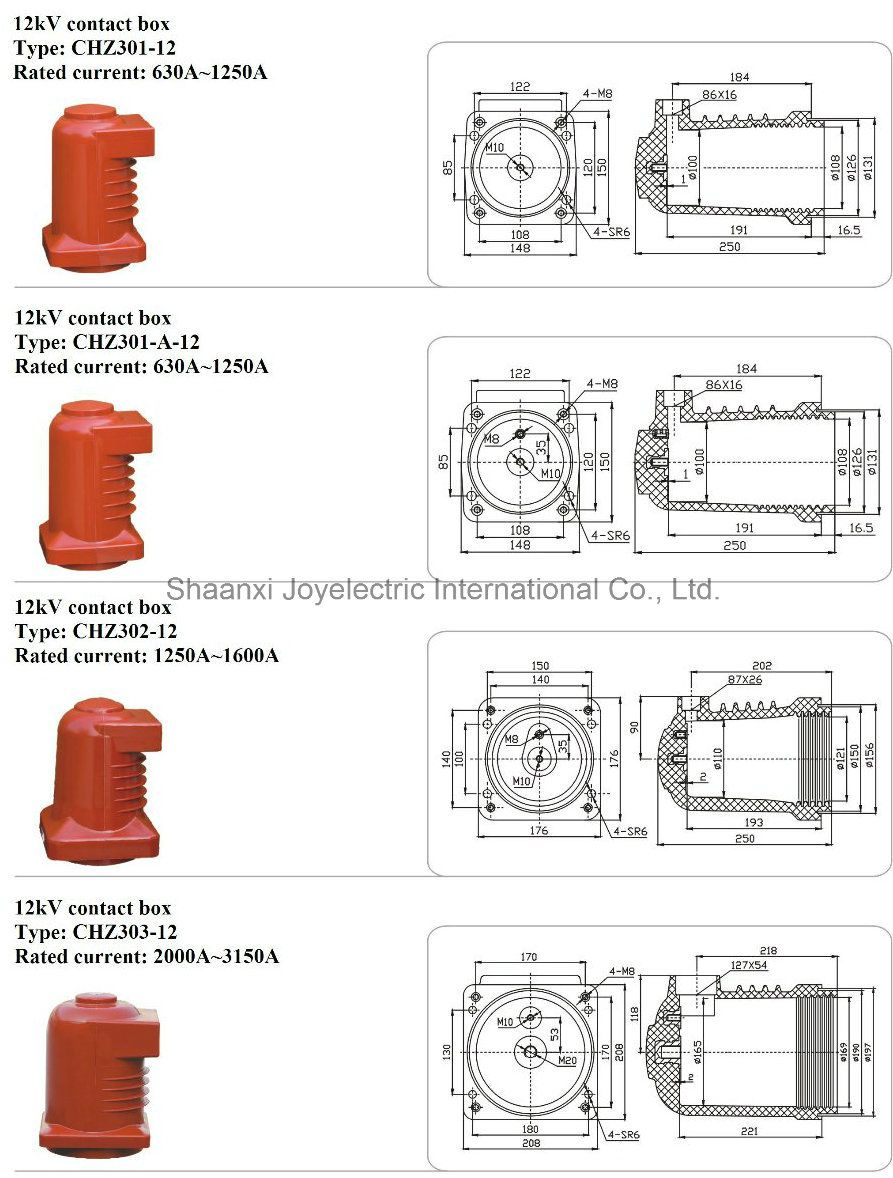

12KV insulation contact box series

1.Epoxy resin contact box is mainly used in the switch gear for insulation

2. Made of epoxy resin, which is more steady and safe than the one of porcelain

3. It adopts of automatic pressure gel craft that be APG craft skills

4. Variety usage in nowadays, from the family distribution to low and high voltage electric transaction equipment.

5. Features: long term insulating points, it always keep a good electric insulate performance under wet work environment

6. Material: epoxy resin

Technical parameters:

Power frequency withstand voltage: 42kv/min

Partial discharge: ≤10pc

Lightning impulse voltage: 75kV

Our packing
