40.5kv Contact Box/Match with ABB Switchgear/Vcb Spout

Name: 40.5kv Contact Box/Match with ABB Switchgear/Vcb Spout
Brand: all-electronics-online.com
SKU: 794236375
Availability: InStock
Rating: 4.5 (87 reviews)

Price:	US $ 50-200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

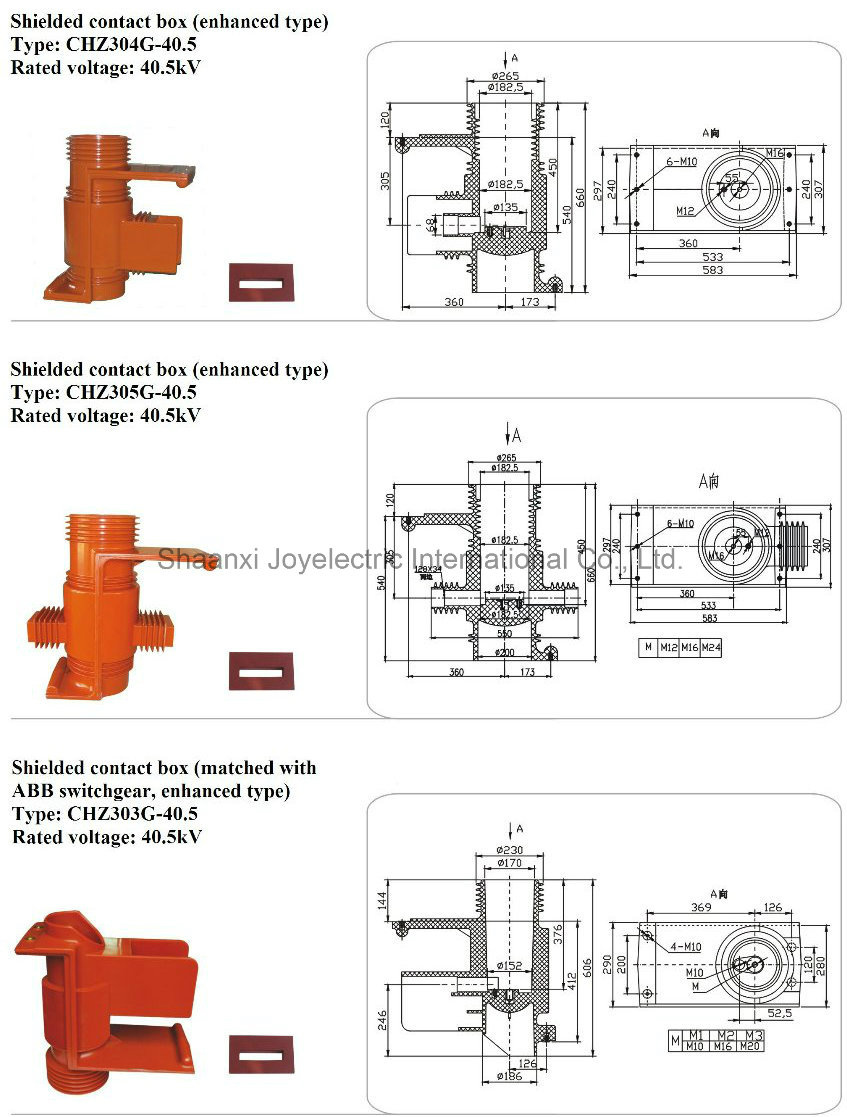

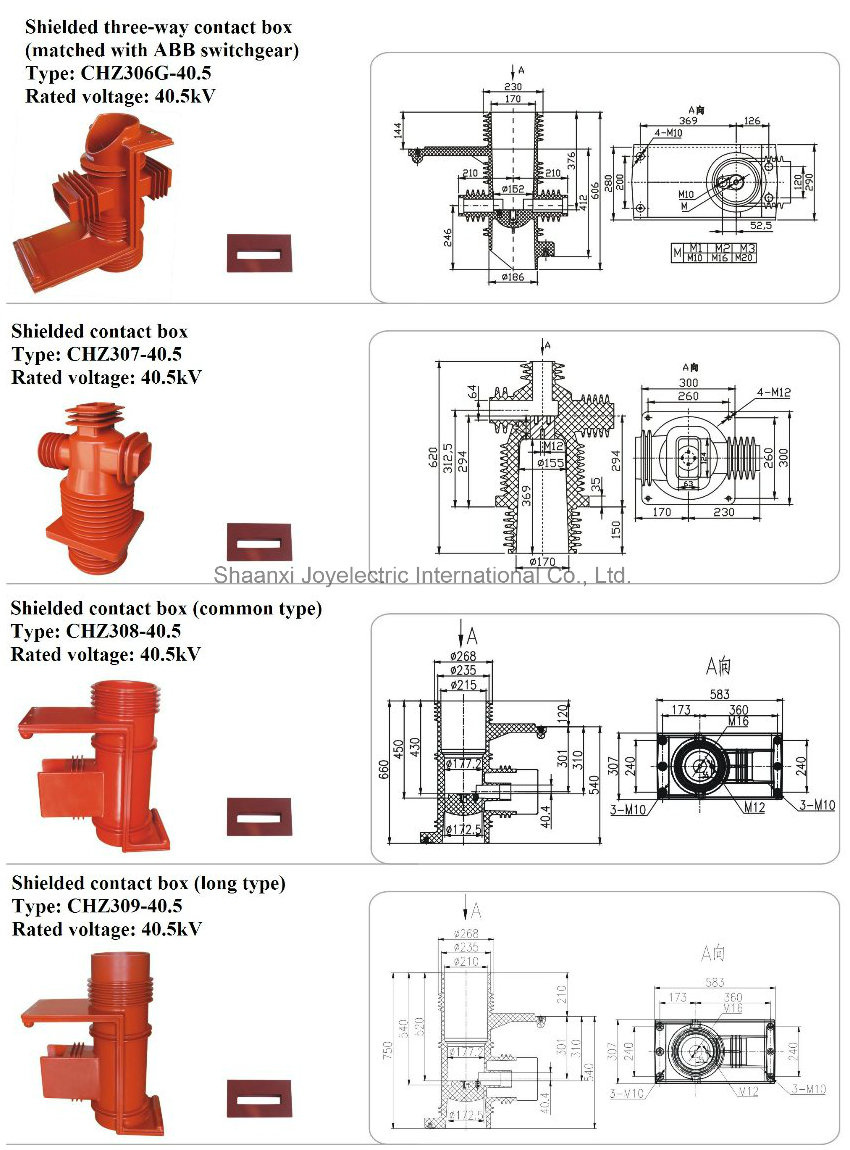

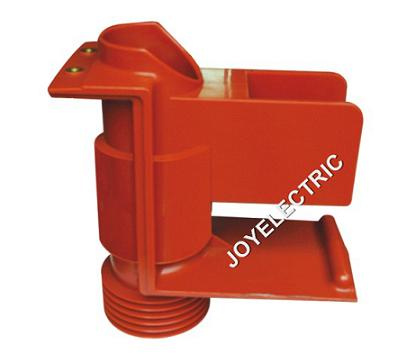

40.5kV Contact Box/Insulation Spout/40.5KV insulation contact box series
1.Epoxy resin contact box is mainly used in the switch gear for insulation
2. Made of epoxy resin, which is more steady and safe than the one of porcelain
3. It adopts of automatic pressure gel craft that be APG craft skills
4. Variety usage in nowadays, from the family distribution to low and high voltage electric transaction equipment.
5. Features: long term insulating points, it always keep a good electric insulate performance under wet work environment
Material: epoxy resin
Technical parameters:
Power frequency withstand voltage: 95kv/min
Partial discharge: 44.6kv<5pc
Lightning impulse voltage: 185kV
Creepage distance: >810mm
Glass transition temperature: ≥105ºC

Our packing

If you would like a quotation or further information on the products, please fill in the form below and we will reply to you within 1 working day. Thank you for your interest to our products.

Prod Model:	CHZ
Application:	High-voltage
Brand:	Joyelectric
Material:	Epoxy Resin

Shaanxi Joyelectric International Co., Ltd. is a specialized company which is dealing with international business mainly covering electric and energy system, supplying products, design & service as well as production/test equipment in the field of power transmission and distribution.

With more than 20 years experiences in this fields, our main products include 12kV-24kV-36kV/40.5kV vacuum circuit breaker, switchgear & SF6 RMU as well as relative main components and accessories. With business development and meet requirement from customers, we also agent and distribute relative production/test equipment.

We had established close long-term cooperation with 10 more overseas customers from Europe, South American, Middle East and Asia due to our professional quality, excellent service and competitive prices.

We are not only your supplier, but also your purchasing consult as well as solution provider.
