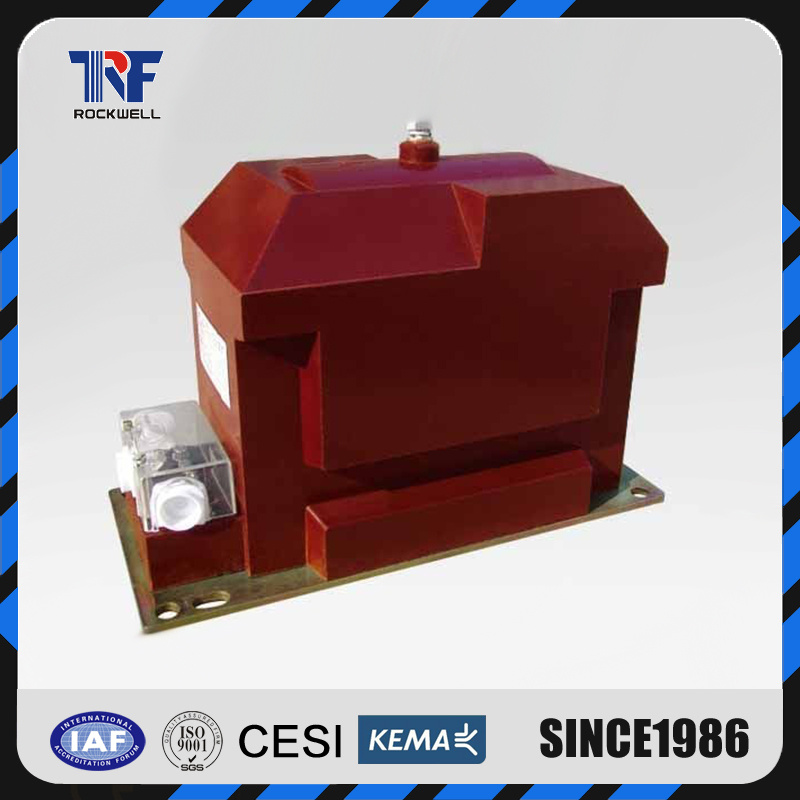

12kv Indoor Voltage Transformer (phase-phase, double-pole) PT
| Price: |
US $ 430-900/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
JDZX23 |
| Application: |
Electronic |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description
JDZX23 12kV 24kV 36kV indoor Potential transformer
Technical Parameters Example
Rated voltage ratio(KV) |
Combined accuracy classes |
Rated output(VA) |
Thermal limit output (VA) |
| 10/\0.1/\0.1/ | 0.2/3P,0.5/3P,1.0/3P | 60/100,120/100,250/100 | 500VA |
| 10/0.1/\0.1/0.1/ | 0.2/0.2/3P,0.2/0.5/3P | 25/25/100,50/50/100 |
| 0.2/1.0/3P,0.5/0.5/3P | 50/50/100,75/75/100 |
| 0.5/1.0/3P,1.0/1.0/3P | 75/75/100,100/100/100 |
Note: 1. The products meet the standards GB1208, GB 20840.1, GB 20840.2, IEC 60044-1, IEC 61869-1, IEC 61869-2.
2. The key components: core, epoxy resin, enameled wire.
3. CE certification by European companies foundry.
4. The user if there are special requirements can be determined in consultation with the Division I after.
5. The table above is not final as the technology promises to please our engineering and technical personnel confirmation.
Product Manual
JDZX23-10C1-voltage transformer is casting resin and fully enclosed indoor opposite type, and below for 12 kV AC 50/60 Hz line voltage measurement and relay protection .
· suitable for air-insulated switchgear.
· Applicable altitude 2000 meters.
· equipment maximum operating voltage of 12 kV (greater than 12 kV to please our confirmation).
· This model is a total of 12 secondary terminals can support up to six windings (depending on parameters).

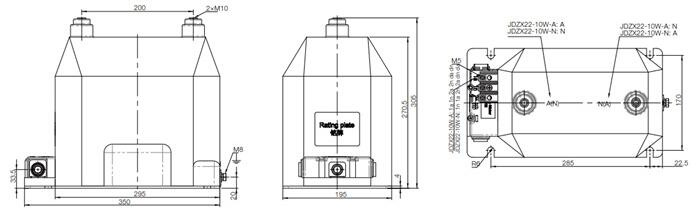

Shape and installation dimensions

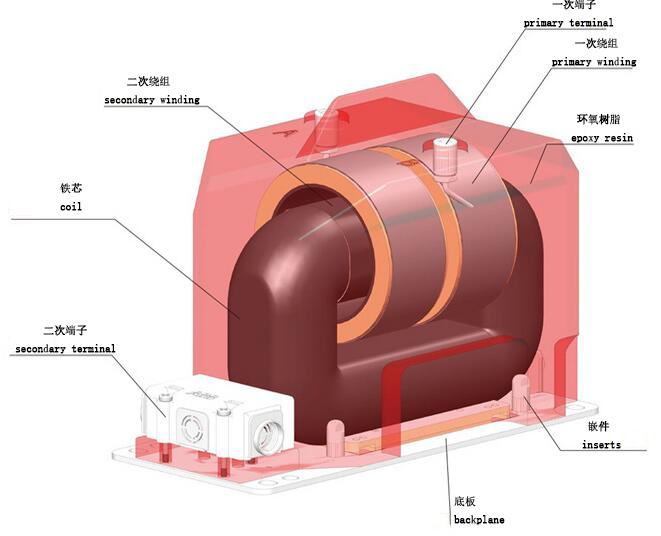

PT perspective view
