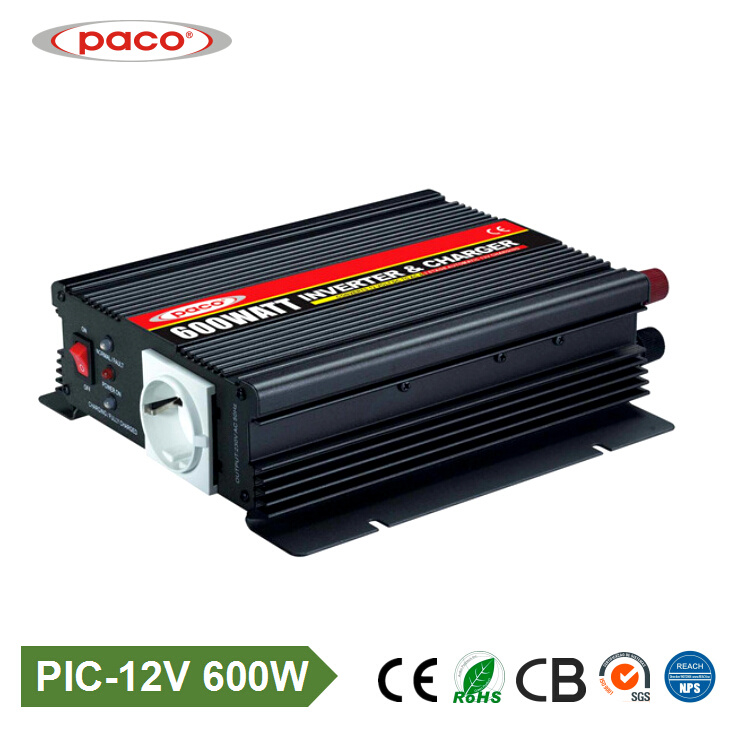

12V 220V 600W DC AC Hybrid Generator Power Inverter with Charger

Name: 12V 220V 600W DC AC Hybrid Generator Power Inverter with Charger
Brand: all-electronics-online.com
SKU: 242278
Availability: InStock
Rating: 4.3 (143 reviews)

Price:	US $ 38.00-43.00/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PIC600W-12V05A
Warranty:	1 Year

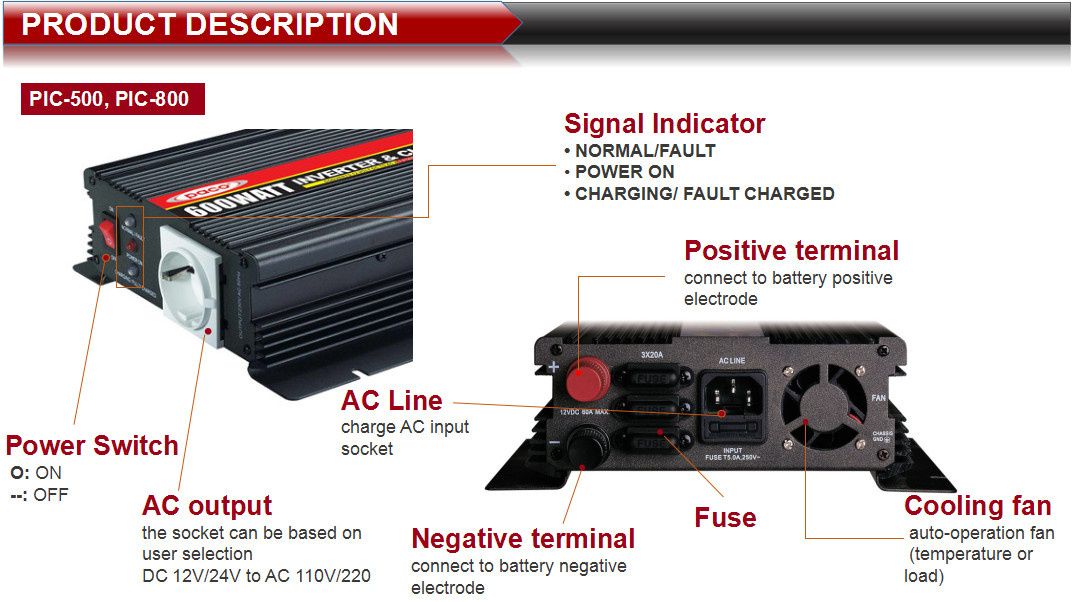

Product Description

INVERTER:
DC input voltage: 12V DC, 55A, (10-15V)
Input standby current (12V DC, +/-5%): ≤ 0.6A
AC output voltage: 230V AC / 110V AC, +/-8%
Output power: 600W, 2.7A
Output power (peak watts): 1200W
Output frequency: 50 or 60Hz
Output waveform: Modified sine wave
Low-battery voltage alarm: 10.5V DC, +/-0.5V
Low-battery voltage shutdown: 10.0V DC, +/-0.5V
Fuse quantity and size: 25A x 3, standard auto blade fuse (external)
Efficiency: 85 to 90%
Thermal shutdown: 65C+/-5C
Cooling fan: Yes auto-operation fan (temperature or load)

CHARGER:
Rated input voltage: 230V AC, (160-270V), 50Hz / 110V AC, (80-130V), 60Hz
Input power: 0.72A
Rated output: 12V DC, 5000mA
Minimum start voltage: 4.5V
Current fuse rating: 250V AC, F2.5A, (Internal*), T10A, (External), 5 x 20mm
Type: 3 stage automatic
Charge control: Bulk 5000mA (up to 14.7V), Absorption 14.4V, Float 13.8V
Battery range: 50-130Ah
Battery type: For charging 12V lead acid batteries only
Thermal protect (fan on): 65C+/-5C
Performance: Micro-processing switching mode
Efficiency: App. 85%
Machine size (mm): 255 x 212 x 67
N. W. (Kgs): 2.3Kg

FAQ

.What is an inverter?

Inverter is an electrical device that converting direct current (DC) to alternating current (AC), the resulting AC (AC) may at any required voltage and frequency with the use of appropriate transformers, switching and control circuits. Inverters are commonly used to supply AC power from DC sources such as solar panels or batteries.

.If the inverter which contains a charger, then can I use the power inverter and charger (PIC) the function ofinvert and charge both at the same time?

No. If the inverter has a charging function, it the switching from the charger to the inverter can be manually controlled orautomatically controlled. In both controlling modes, you cannot operate the charger and the inverter at the same time.

.Does Ligao inverters work on solar panels?

In the current range of inverters we offer, they do not work directly with the solar panels. However, if the solar panel is being connected with a solar charge controller and then to the battery, the inverter can be used in this application.

.When the inverter is connected to the battery and switched on, and why the inverter does not work?

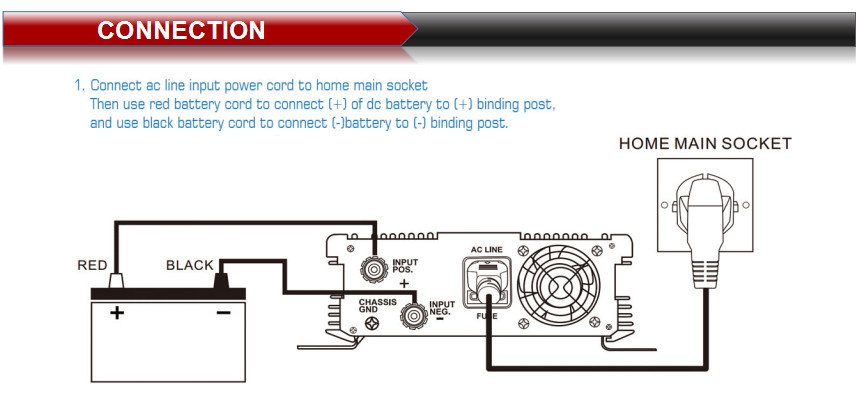

In order to ensure the normal operation of the inverter, you must be sure of: 1) the battery is fully charged or at least not inlow battery voltage conditions; 2) the polarity connection from the battery to the inverter is correct, i.e. The positive polarity from the inverter terminal to the positive terminal on the battery and the same for the negative polarity, do not ever reverse the polarity connection.

.When the power inverter and charger (PIC) power switch is in "Charge" status, but the "Charge" LED indicator does not show and the fan doesn't run at the same time?

This may be because the utility power and the inverter power plug is not properly connected, or a blown up fuse of the inverter, check the connection of the utility power supply and replace the fuse with a new one with same rating.

.How do I check or change the fuses?

Ligao Inverters contain internal or external fuses and should only be checked or replaced by a qualified electrical appliance repairer.

.When the inverter is connected to the battery and switched on, and why the inverter does not work?

.Why does the fan only operate sometimes?

Ligao inverters feature a temperature controlled automatic cooling fan that only operates when needed. This allows the inverter to run very quietly for most of the time. If the fan doesn't work, it might be a loose contact of the fan cables to the main PCB or a defective fan or a failure PCB. You are advised to submit it to the service center.

Ligao (Zhongshan) Electrical Appliance Co., Ltd has over 20 years of experience in design, manufacturing and marketing of solar supply products and electrical appliances. Conducted by ISO 9001: 2008, with CE, CB, RoHS approvals from SGS, we only provide high quality products.

Our products include:

Power inverter
Battery charger
Automatic voltage regulator (stabilizer)
Uninterrupted power supply (UPS)
Car cooler and warmer
Wireless digital doorbell
TV antenna

Covering an area of 40, 000m², with over 500 workers, our factory is capable of providing OEM and ODM services adequately. With our quality products, competitive prices and excellent services, we win trusts from our clients from the EU, the US, the Middle East, Africa, Asia, and South America. To learn more about us, contact us now.
