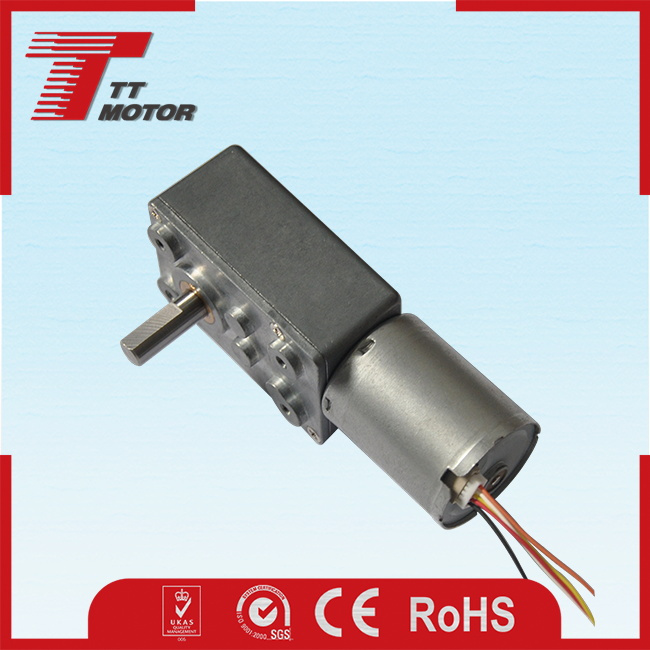

12V brushless DC worm geared motor for automation equipment

Prod Model:	DC Brushless Gear Motor TWG3246-TEC2430
Product Name:	DC Brushless Gear Motor TWG3246-TEC2430
Rated Voltage:	6-24V
Protect Feature:	Totally Enclosed
Output Power:	0.1-50W
Life Expectency:	500hours
Efficiency:	80%-90%
Directions:	CW/CCW
Gearbox Material:	metal
Shaft Type:	D-cut, round or with hole
Shaft Diameter:	6-8mm
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Permanent Magnet
Function:	Totally Enclosed
Type:	DC Brushless Gear Motor
Certification:	RoHS CE
Brand:	TT Motor

Product Description

12V brushless dc worm geared motor for automation equipment

DC motor Main Features
1.OEM/ODM 32*46mm morn gearbox plus 370 permanent magnet DC motor and 24mm brushless motor.
2.Small size dc gear motor with low speed and big torque
3.32*46mm gear motor provide 1.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:146,188,300,438,563,700,900,1020,1313,1688,2700


Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TEC2430-0645	6.0	4500	180	3500	62	570	2.2	120	1.4
TEC2430-1260	12.0	6000	180	4600	84	800	4.6	140	1.6
TEC2430-2490	24.0	9000	180	7200	90	500	6.7	180	1.9


Gearbox with motor   TWG3246-TEC2430-0645-xxx

Reduction ratio	146	188	300	438	563	700	900	1020	1313	1688
Length mm	46	46	46	46	46	46	46	46	46	46
No-load speed rpm	30	23	15	12	8	6	5	4	3	3
Rated speed rpm	24	18	12	10	6	5	4	4	3	3
Rated torque kg.cm	6	7	10	10	10	10	10	10	10	10
Max.momentary tolerance torque kg.cm	14	15	15	15	15	15	15	15	15	15


Gearbox with motor   TWG3246-TEC2430-1260-xxx

Reduction ratio	146	188	300	438	563	700	900	1020	1313	1688
Length mm	46	46	46	46	46	46	46	46	46	46
No-load speed rpm	40	30	20	13	10	8	6	5	4	3
Rated speed rpm	31	25	16	11	9	7	5	5	4	3
Rated torque kg.cm	8	10	10	10	10	10	10	10	10	10
Max.momentary tolerance torque kg.cm	14	15	15	15	15	15	15	15	15	15

Gearbox with motor   TWG3246-TEC2430-2490-xxx

Reduction ratio	146	188	300	438	563	700	900	1020	1313	1688
Length mm	46	46	46	46	46	46	46	46	46	46
No-load speed rpm	60	47	30	20	16	12	10	8	7	5
Rated speed rpm	49	38	25	17	14	11	9	7	7	5
Rated torque kg.cm	9	10	10	10	10	10	10	10	10	10
Max.momentary tolerance torque kg.cm	15	15	15	15	15	15	15	15	15	15


Product Application
Label printers, label stripping machine, bar code printers, robots, electronic door locks, printer, electronic monitor, beauty equipment, display shelves, counters, vending machines,etc.


Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.
