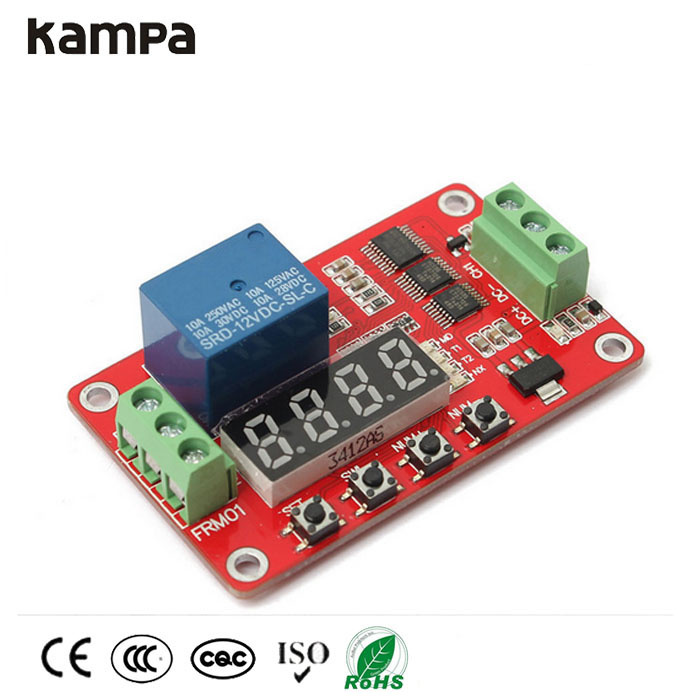

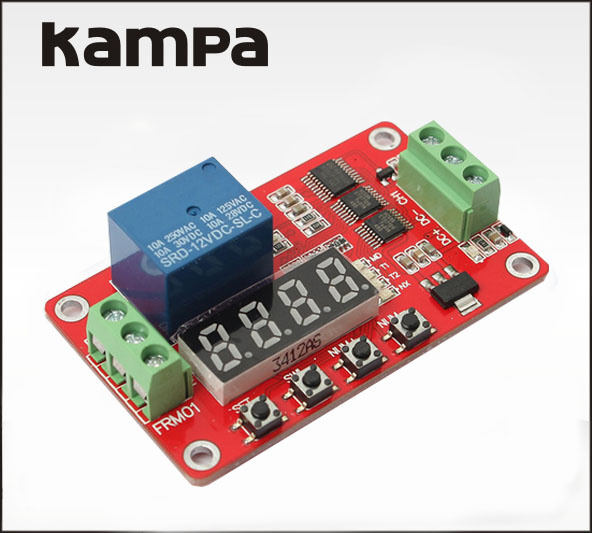

12V DC Multifunction Self-Lock Relay PLC Repeat Cycle Time Timer Switch Module

Description:

This multifunction relay control module , designed specifically for a variety of users with different needs, the use of micro-controller as the master unit, preset 18 kinds if functions, and can be based on user needs,customize and add other specific functions

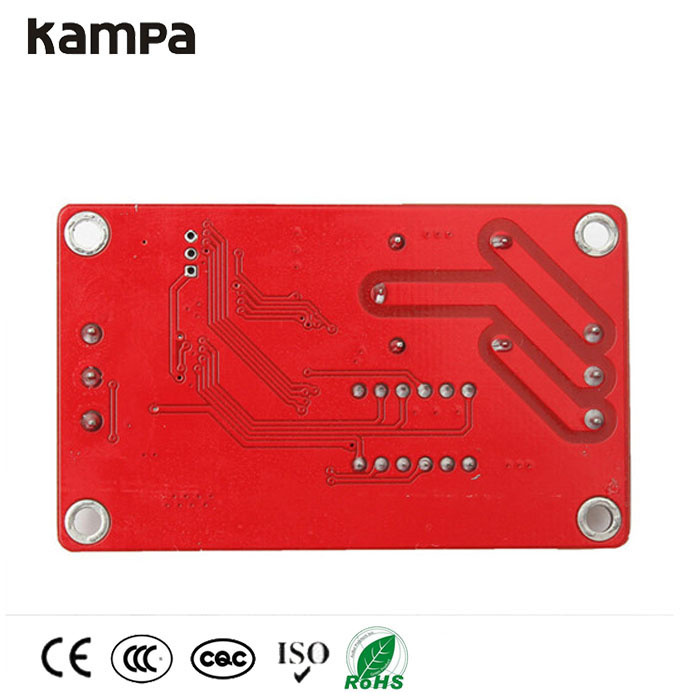

Power relay module using high quality, high-voltage power transistor, red, blue signal lights, double-sided PCB board,cloth board to consider a comprehensive, stable performance, can be widely used in a variety or power control types of occasions
Features:
New upgrade to version 2.0, the module features the eight kinds before, increased to 18 kinds, to meet the needs of more applications
Increase the supply anti-reverse function, and does not take the wrong power supply is damaged module
The use of top-quality high-voltage power supply modules, discrete power supply before replacing the system more stable and reliable;

Increased 0.1 seconds timing, timing accuracy from the previous 0.1 seconds, upgrade to 0.01 seconds

Increase automatic power saving feature, users can independently set
1)The module function:
Users can display the key and select the following 18 kinds of functions in one, you can set and save function parameters, you can also view the parameters of the current function of the time parameter sets the minimum 0.1 seconds adjustable accuracy better than 0.01 seconds, with regard to the specific Set operating instructions, can be obtained from vendors.

Specification:
Operating Voltage: 12V
Working Current: 12V/less than 50mA(When the relay is not operating less then 15mA, turn off the dsiplay less then 3mA)
Working Temperature:-20-60degree(Limit range -30-70degree)

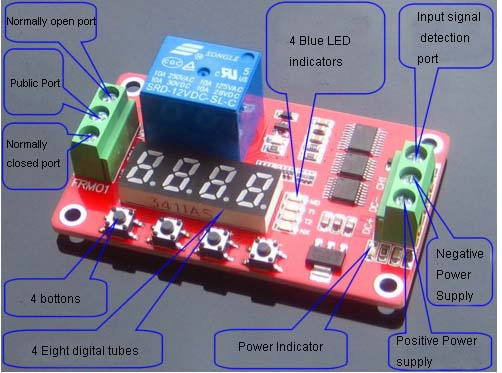

Load capacity:
the module normally open nterface maximum load capacity: DC 0-30V/10A,AC0-250V/10A
the module normally closed nterface maximum load capacity: DC 0-28V/10A,AC0-125V/10
