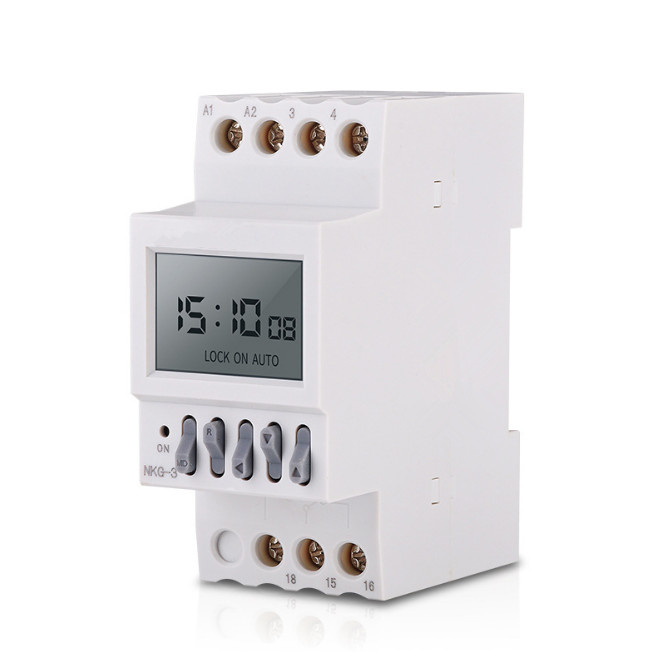

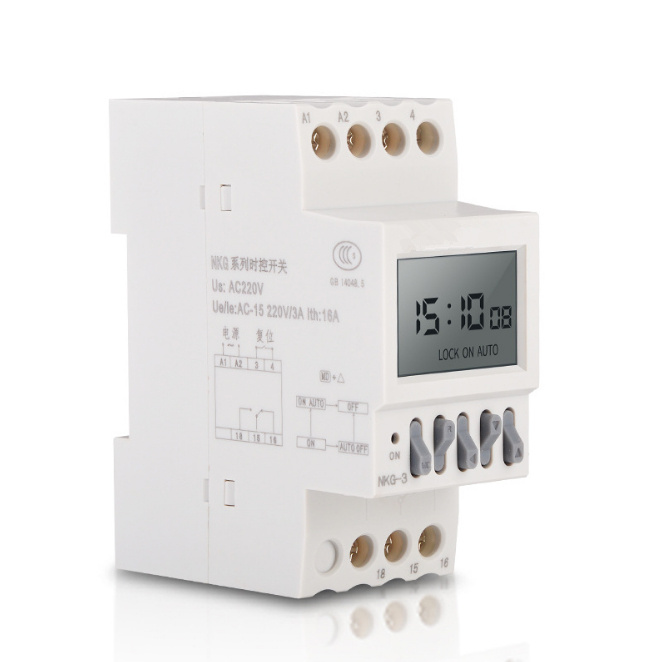

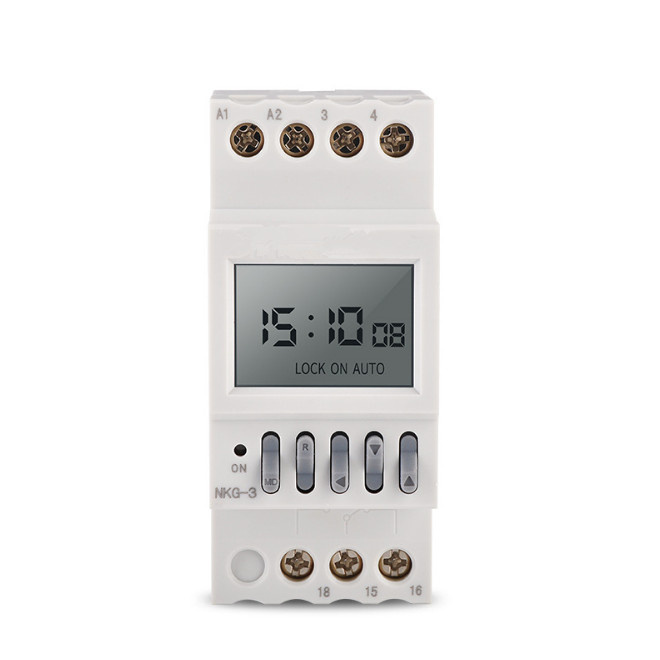

Nkg3 Nkg-3 LCD Microcomputer Astro Time Switch 220V 16A

Name: Nkg3 Nkg-3 LCD Microcomputer Astro Time Switch 220V 16A
Brand: all-electronics-online.com
SKU: 839149385
Availability: InStock
Rating: 5 (117 reviews)

Price:	US $ 8.4-9.3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

NKG3 NKG-3 LCD Microcomputer astro Time Switch 220V 16A

Features:

NKG-3 time switch (hereinafter referred to as "time switch"is applicable for controlling switch-on and off of switch lamps,advertising light boxes and other quipments in automatic control circuit with AC frequency of 50HZ,rated control power voltage of 220V at most and rated working current of 16A most,the product may be used to adjust the switch-on and off time everyday according to the latitude.

The product complies with the requiremenrs of standard GB 14048.5 and IEC 60947-5-1.

Transport and storage condistions:-25ºC to +55ºC

Power voltage change scope:85% ~110% rated operated voltage

Protection grade:IP20

Rated control power voltage:50HZ AC220V

Conventional thermal current:Ith 16A

Categary of the control circuit:AC-15

Rated working current:AC-15,220V 3V,AC-1 220V 16A

Timing error:≤1s/d

Time control scope:1min~168h

Dimension setting time:N/S-62°~+62°

Mechanical life:≥30.000times

Eletric endurance:≥10.000 times

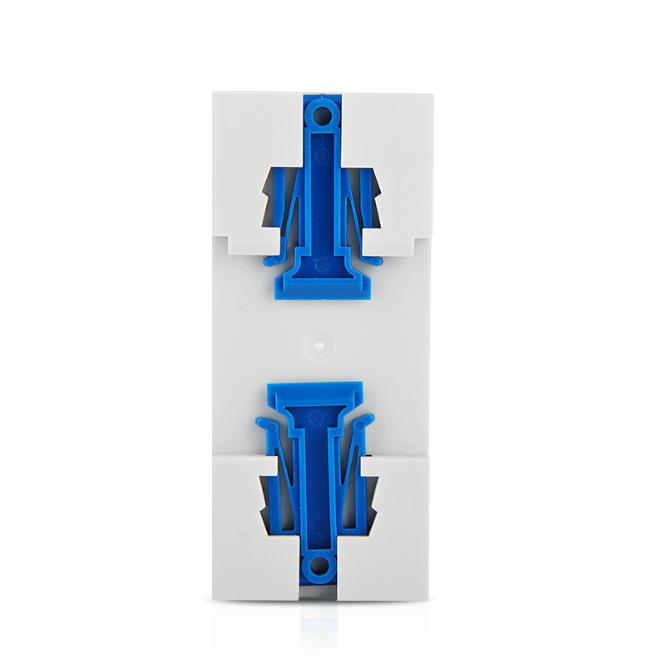

Installation method:Device installed,guide traked

Prod Model:	NKG3/NKG-3
Working Voltage:	220V 50Hz
Rated Current:	16A
Latitude Function:	Latitude,Date Automatic Adjust
Time Control Range:	1min-168h
Timing Error:	Less Than 1 Second/Day
