High Quality 100A 3P NSX100N MCCB Moulded Case Circuit Breaker
APPLICATION
KPCM3 Series moulded case circuit breaker is suitable for AC 59Hz, rated insulation voltage 690V, Rated working voltage 660V(690V) or below. DC 250V or below. Rated current 12.5A 800A. Used to allocate power. In the normal condition, it's used to make non-closed and disconnected infrequently, protecting the electric equipment from overload, shot circuit and under voltage.
1, the installation altitude less than 2000m
2, the surrounding temperature from -5°C ~ +40°C
3, in the non-explosive condition. Or without adequate erosion and destruction of gas and dust conductive area
4, without rain and snow invade
5, pollution level 3
6, install type 3
Circuit breaker installation
The basic installtion of circuit breakers in mounted vertically, also can be cross-loaded
Specification of MCCB
Type | Rate Current(A) | KPCM3-125E(S1)/3P | 12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125A | KPCM3-125S(S1)/3P | KPCM3-125M(S1)/3P | KPCM3-125(S1)/4P | KPCM3-160S(S2)/3P | 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160A | KPCM3-160M(S2)/3P | KPCM3-160H(S2)/3P | KPCM3-160(S2)/4P | KPCM3-250S(S3)/3P | 100, 125, 160, 180, 200, 225, 250A | KPCM3-250M(S3)/3P | KPCM3-250H(S3)/3P | KPCM3-250(S3)/4P | KPCM3-400S(S3)/3P | 200, 225, 250, 315, 350, 400A | KPCM3-400M(S5)/3P | KPCM3-400H(S5)/3P | KPCM3-400(S5)/4P | KPCM3-400/3P | KPCM3-630(S6)/3P | 400, 500, 630A | KPCM3-630M(S6)/3P | KPCM3-630H(S6)/3P | KPCM3-630(S6)/4P | KPCM3-630/3P | KPCM3-800S(S6)/3P | 500, 630, 700, 800A | KPCM3-800M(S6)/3P | KPCM3-800H(S6)/3P | KPCM3-800(S6)/4P | KPCM3-800/3P |
|

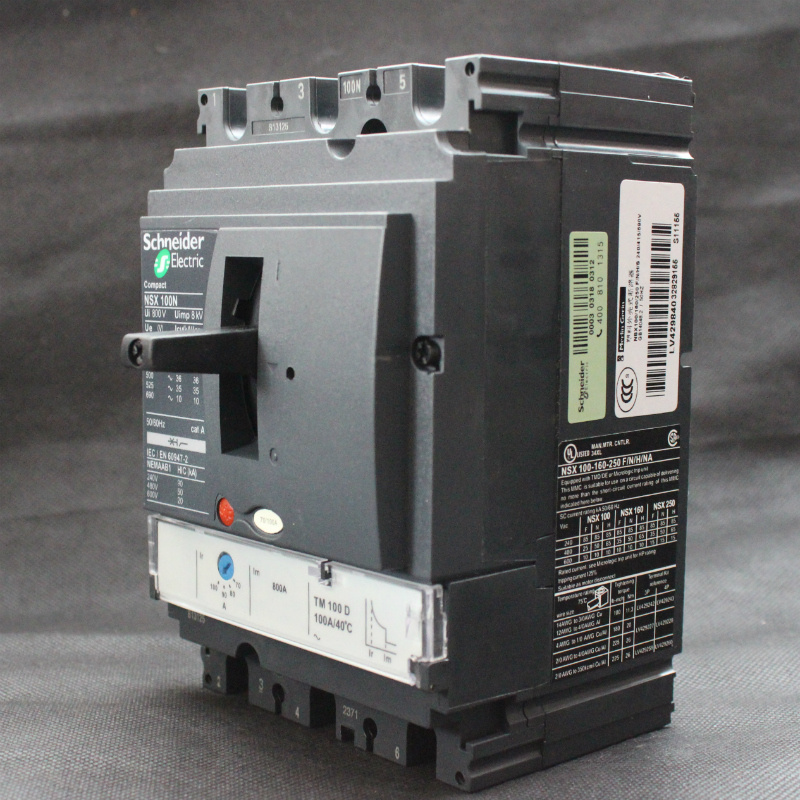

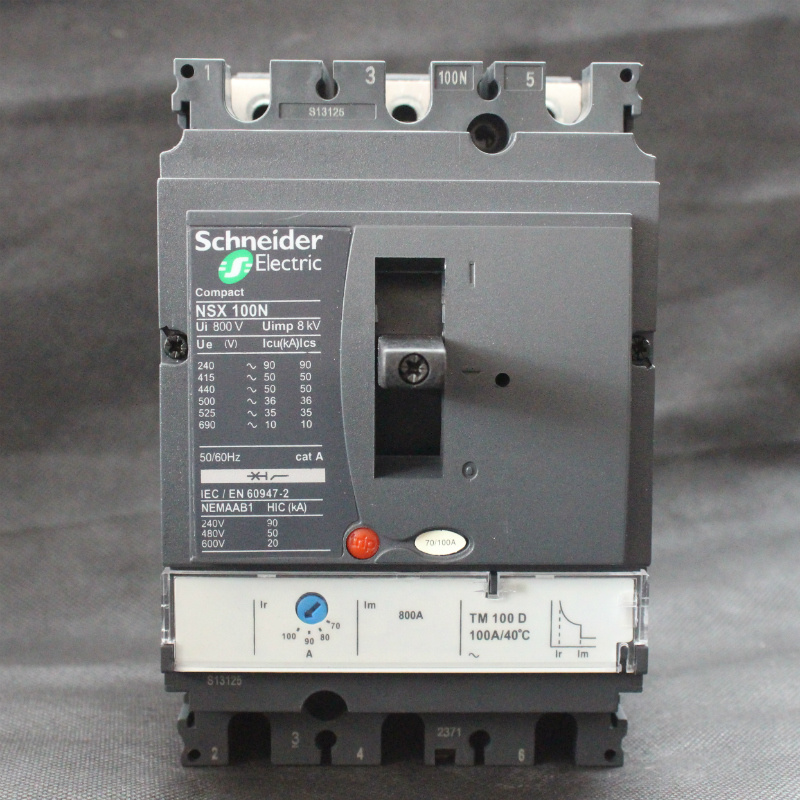

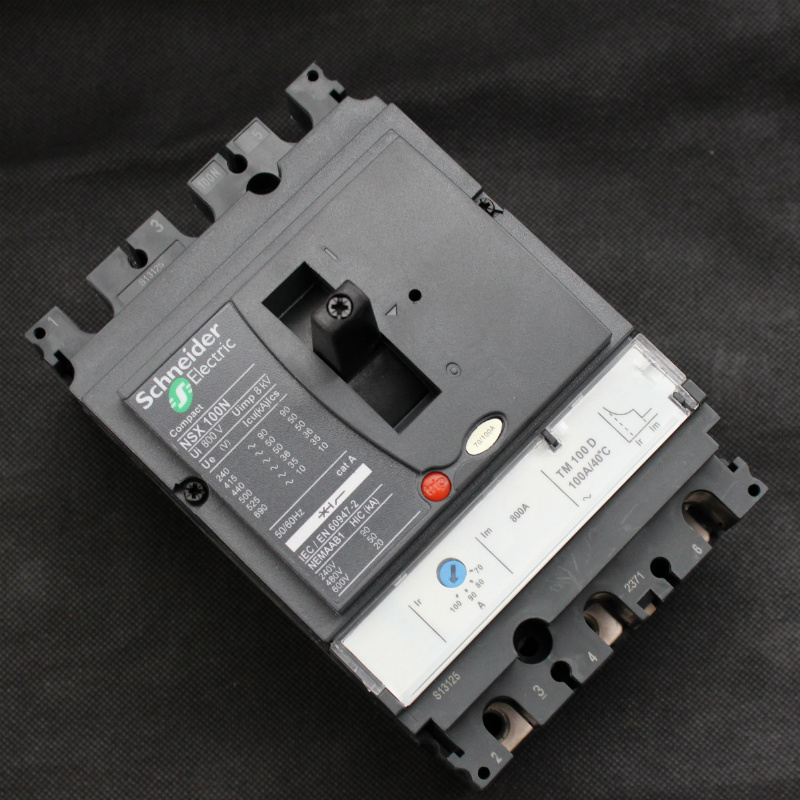

Product Photoes:
CERTIFICATES
Comply with IE60947-2, GB14048.2, GB14048.4, 3C. CE, ISO9001. etc
Advantages
1, Competive price and high quality
2, timely delivery after get the payment
3, it can be printed the shiper mark on the outside cartons, same can be on the circuit breakers
4, we can manufactured according each customer's design. Drawings will be welcome
Yueqing Kampa Electric Co., Ltd. is Established in 2009. Has variety of goods, such as Relay, Circuit breaker, Switches, Thermocouple, Thermostat, Temperature controller, Switch power supply, AVS, Heat sink, Heater, Distribution box, Junction box and so on. We are manufacturer and have ten years experience in Electrical industry. |
A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.

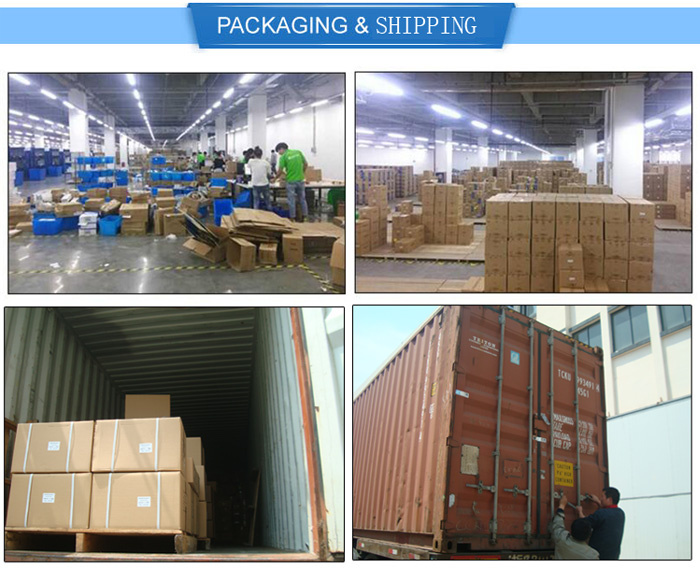

Shipping notice and photos sent to you as soon as your order is shipped.
B. After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

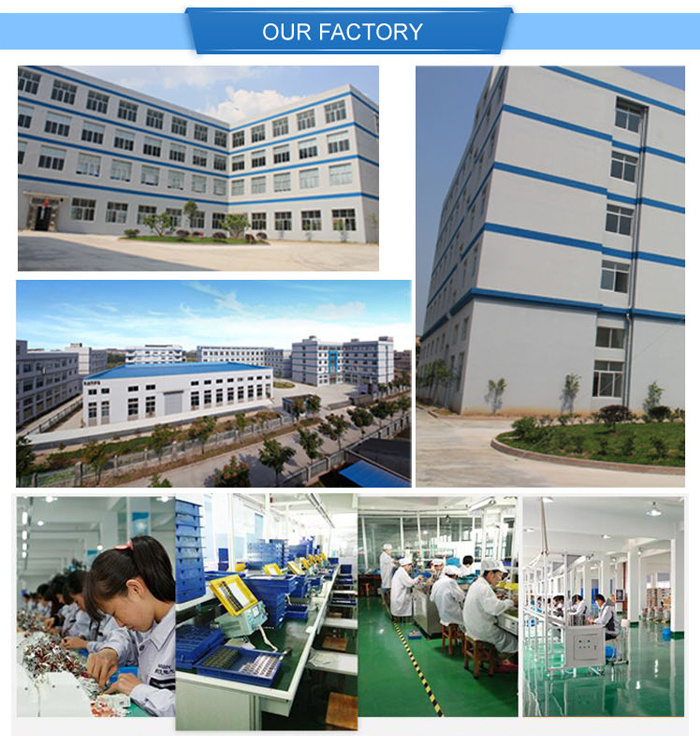

Kama Electric Co., Ltd.
Established in 2009, Occupies 12000m2.
Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.
Established in 2009, Occupies 12000m2.
Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.
As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...
Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.
Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.
It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.
Welcome to visit us for cooperation!
Kampa - will create a magnificent tomorrow together with you!
