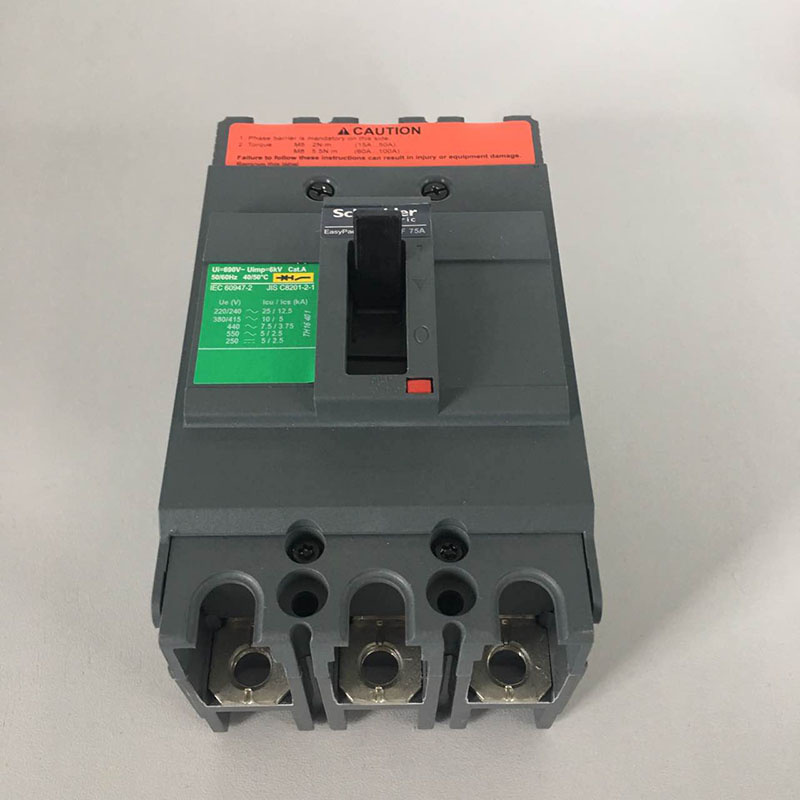

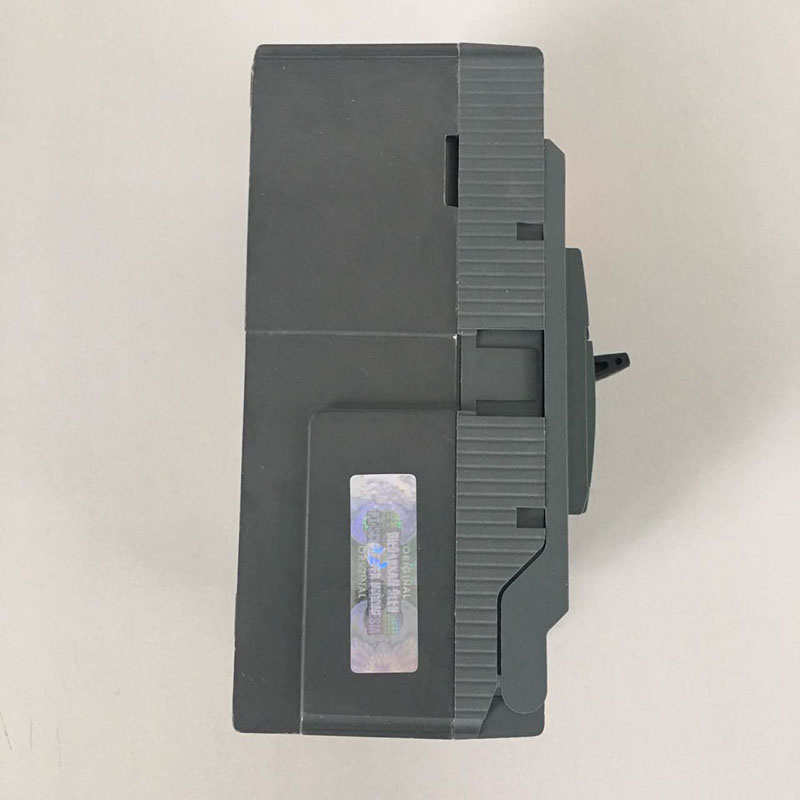

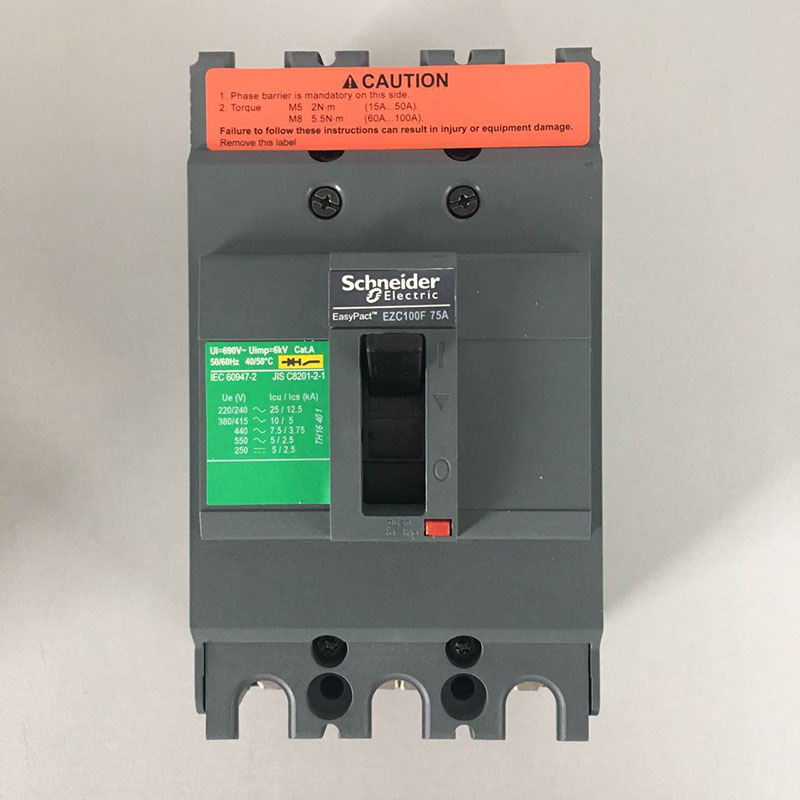

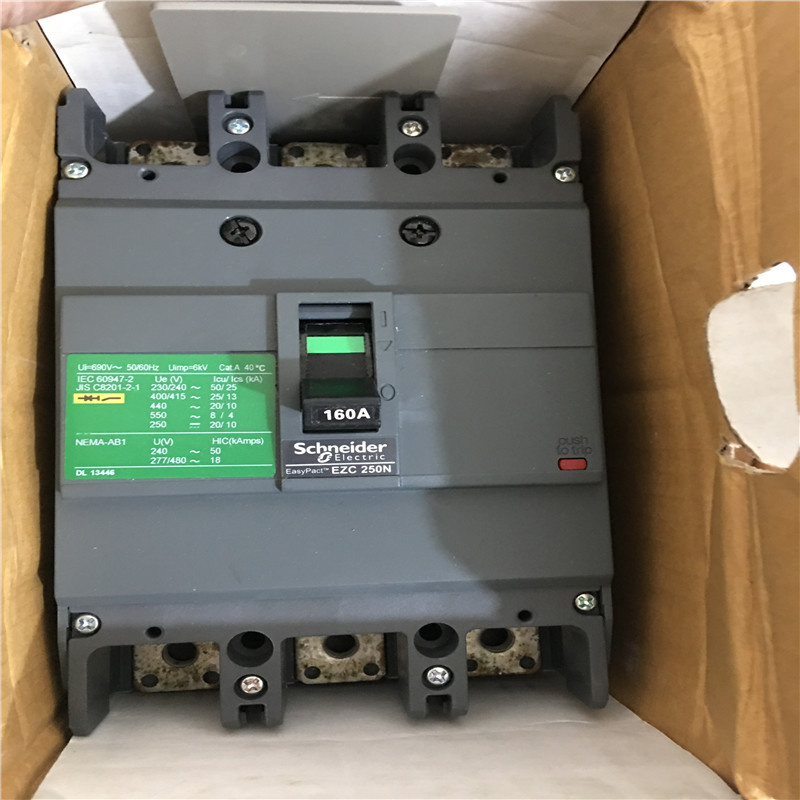

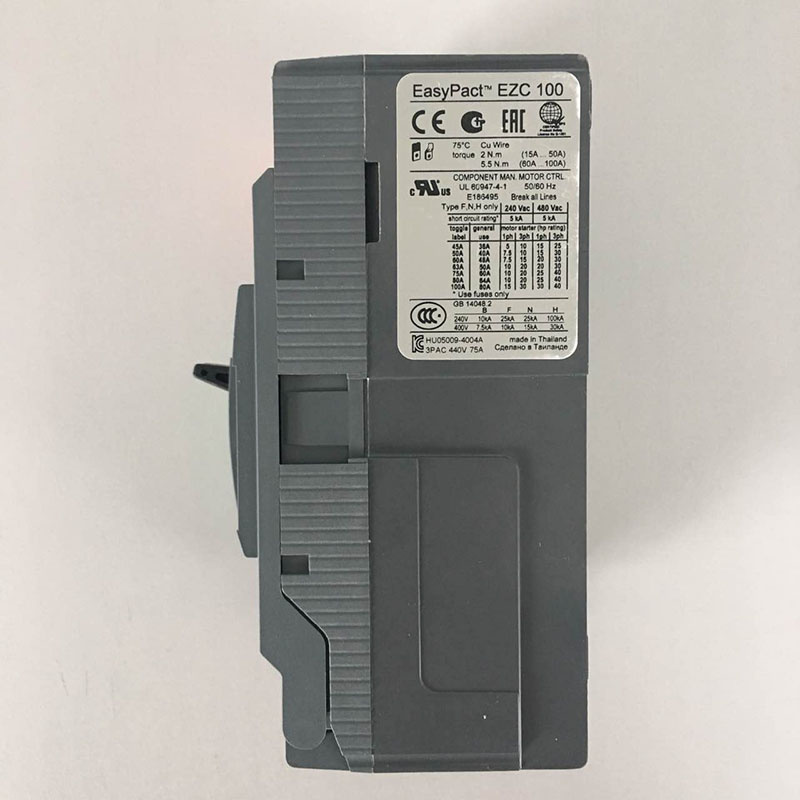

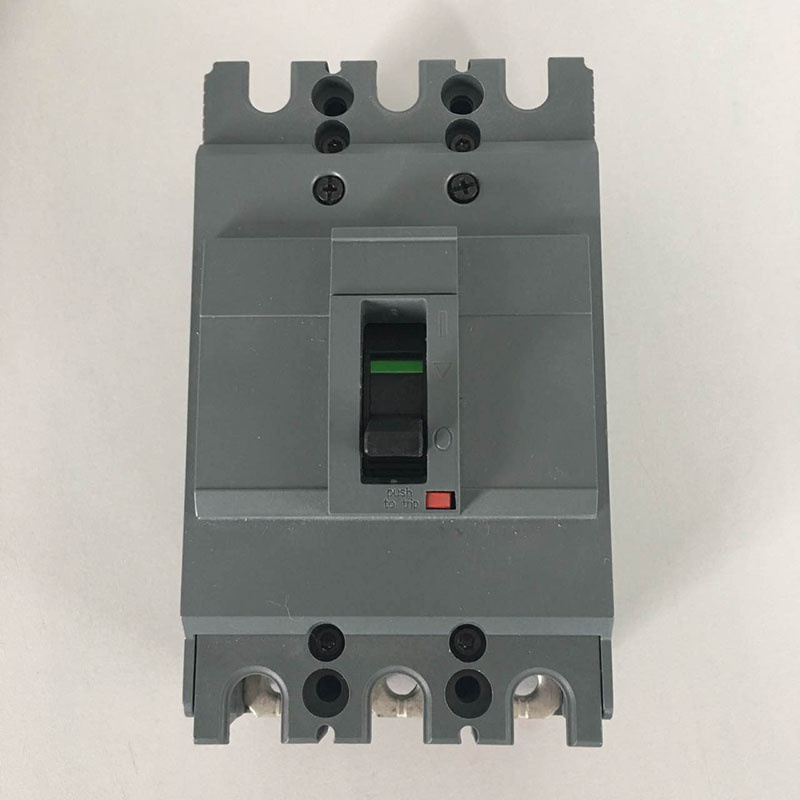

High quality 3P EZC100F Compact Moulded Case Circuit Breaker 100amp MCCB Circuit Breaker
1.Products introduction
EZC series of MCCB are used in distribution network of AC50/60Hz, rated operational voltage 440V and rated current from 15A to 630A. It is used for distributing power and protecting circuit, power and electrical equipment from overload and short-circuit damage, which will improve the reliability and continuity of power supply.
2. Products specification

Item No.		EZC 100	EZC 250	EZC 400	EZC 630
Number of poles		1P,2P,3P,4P	3P,4P	3P,4P	3P,4P
Control	Manual	with toggle/with direct or extended rotary handle
Connections	Fixed	front connections/rear connections
Electrical characteristics as per IEC60947 and EN60947-2
Rated current(A)	In	15,20,30,40,50,60,75,80,100	100,125,160, 200 ,250	250~400	400~630
Rated insulation voltage(V)	Ui	690V
Rated impulse withstand voltage(KV)	Uimp	6kV
Rated operational voltage(V)	Ue	AC 50/60Hz, 440V
Breaking capacity levels		F H	E M	M H
Endurance(C-O cycles)	Mechanical	10000	8500	8000	6000
Endurance(C-O cycles)	Electrical 440V	2000	1500	1000	1000
Release		Thermal magnetic	Thermal magnetic	Thermal magnetic	Electronic
SHT shut release	24V, 220V, 380V
Dimensions(mm)		1P:1302581
		2P:1305081	3P:16510585.5		3P:255140168
		3P:1307581	4P:16514085.5	3P:257140146	4P:255185168
		4P:13010081

Prod Model:	EZC MCCB
Types:	MCCB
Pole:	3p
Rated Voltage:	690V
Rated Current:	20-630A
Rated Frequen:	AC50/60Hz
Certificate:	Ce/ISO9001
Standard:	IEC 60947-2
Model:	Ezc
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC
