| Prod Model: |
KP001 |
| Dimension: |
64.2mm*34.8mm*18.5mm. |
| Timing Range(Settable): |
0.1s to 999 Minutes |
| Signal Source: |
10~16V |
| Output Capacity: |
Can Control The Load Within DC 30V 3A or AC 220V 3 |
| Static Current: |
20mA |
| Working Current: |
50mA |
| Working Temperature: |
-40-85°c |

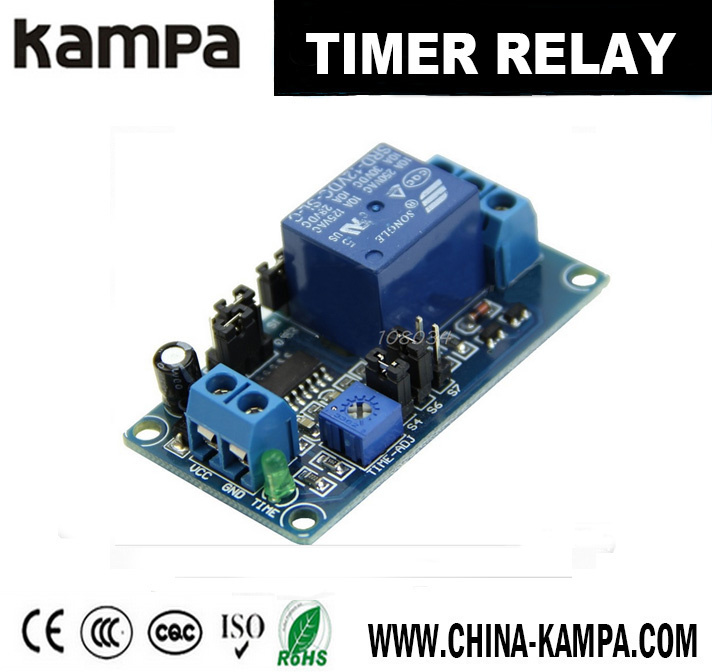

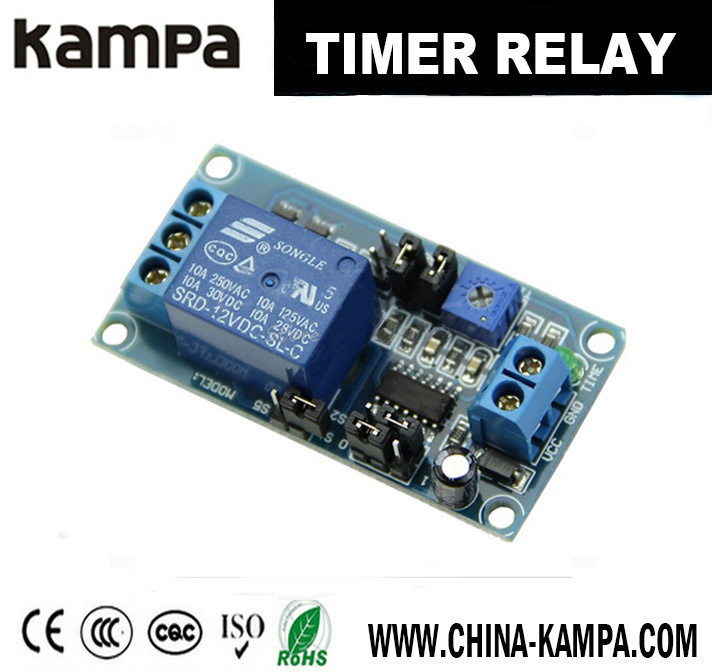

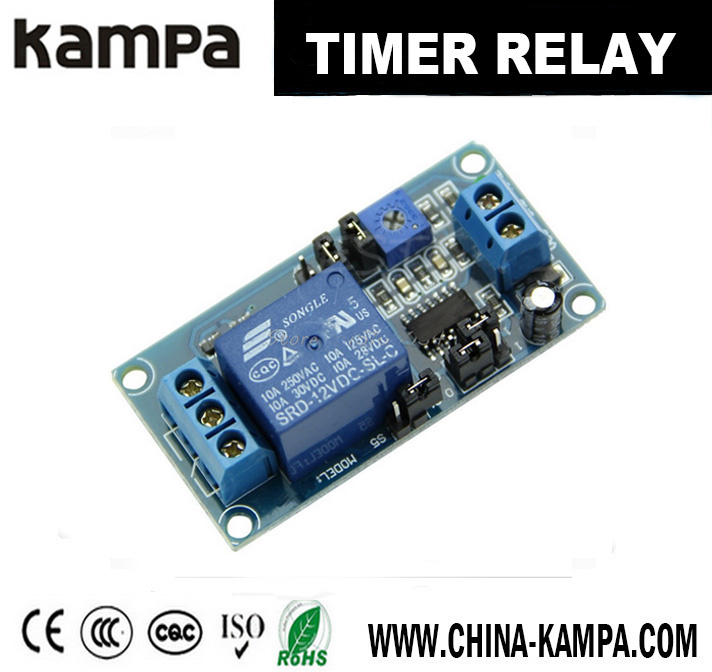

Product Description
New upgrades to simplify,to meet customer needs.
Increase the supply anti-reversefunction.
The user of opto isolated input and output,enhanced anti-jamming capabilit comsumption.
Set parameter after power for ever memories.
Signal teminal voltage signal can be maintained for a longtime.
To ensure stability,industrial grade board,class PLC.Product parameters.
Product parameters:
1,Size:64.2mm*34.8mm*18.5mm
2.Relay specifications:AC 220V,10A or DC 30V 10A.
3.Quiescent current:20mA.Operating current:50mA
4.Working voltage:10~16V(If other ranges can be customized)
5.Signal voltage:10~16V(If other ranged can be customized)
6.Life:about 100,000 times.working temperature:-40ºC~85ºC
Instruction manul:
P1-1 operating modes:a signal to trigger relay, time is up,the relay
disconnect users,You can set relay time T,click K2 the hundreddigital
tube starts flashing,then press K3, the hundred digital change;click K2
ten digital tube starts flashing,then press K3,ten digit changes;click K2
bit digital tube starts flashing, then press K3, single-digit change;then
click K2,; digital pipe does not blink,then press the K3, shifting the
decimalpoint,the decimalpointin abitindicates 0-999minutesin ten
represents 0 to 99.9 seconds withou tadecimalpointrepresents 0-999
seconds;goodchoice,bringing the time setting is completed.Short press
K1,enterfunction offine-tuning settings,triggerthedefaultdelayperiod
is invalid, press K1, during the delay trigger active(re-timing),clickon
the K1, during the delay reset (timer turned off,the relay reset) press
again to repeat the default settings for the first time.
P1-2 operating modes:Asignal trigger ,digital countdown begins,X
seconds after,there lay open Y seconds,then close.Users can set the relay
time X,Y;P1-1different time settings similar to the blue lights that set
the relay time,blue light indicates setting relay off time. Short press K1,
enter function offine-tuning the set,the default trigger is invalid during
the delay,pressK1,during the delay trigger active(re-timing),then click
the first repeat default settings.
P1-3 operating modes:Open X seconds,disconnect Yseconds, infinite
loop.Users can set the relay timeX,Y;time setting similar to P1-2.Short
press K1,enter function offine-tuning set,The default function is:set up
an electric circuit the relay first open, press the K1,there lay first
close.Press again to repeat the default functionality.
P1-4 operating modes:a signal to trigger the relay open but do not start
the timer,when the trigger signal disappears,digital count down begins,X
time after,the relayclose; During the delay,again to the signal,digital
count down canceled, stays energized, the signal disappears, restart
count down; (equivalentto release the button to start timing, commonly
usedin power-offdelay).Users canset the relay time X; time setting similar to P1-1.
