| Prod Model: |
TL121200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Tl121200 |
| Voltage: |
12V |
| Capacity: |
120ah |
| Dimension: |
410*176*227/227mm |
| Designed Life: |
10 Years |
| Weight: |
32kg |
| Color:Grey Or Black: |
Grey , Black or Other |
| Standby Use: |
13.6-13.8V |
| Cycle Use: |
14.5-14.9V |
| Internal Resistance: |
4.2 Mohms |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting Battery |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |

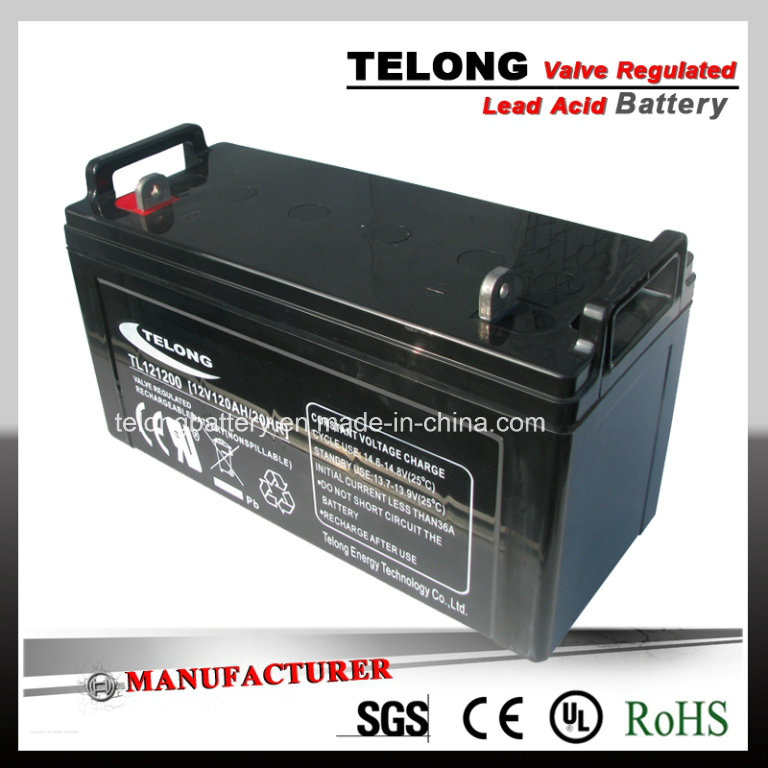

Product Description
Rechargeable Lead Acid Battery, Deep Cycle Battery, Gel Battery, AGM Battery, Solar Battery, UPS Battery, Storage Battery, Electric Car Battery1. Product parametersModel: TL121200
Voltage: 12V
Capacity: 120Ah
Dimension: 328× 171× 214/218mm(Length× Width× High/Total High)
Net weight: 32KG
Quantity per carton: 1 PCS
Gross weight per carton: 32.5kg
Certificate: CE, UL, RoHS, MSDS, UN38.3
2. Applications:Remote Switching Control equipments
Communication systems Portable Lights
Alarm systems Power tools
Medical equipments Electric toys
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
3. Features(1) When it is safe surroundings, maintenance free, and add water is not need.
(2) Equalization charges are not required and cycle or standby (or float) use.
(3) Long life for 3 year.
(4) low resistance and energy output is more remarkable.
(5) Fully enclosed (not liquid leakage, no acid gas spill).
(6) Low self-discharge rate.
4. Welcome to visit our websitehttp://www.sztlg.com/
http://www.telongbattery.com/
http://telongbattery.en.made-in-china.com/
5. Others:1, OEM orders are available
2, Superior quality and cost-performance ratio
3, Tags, plugs and connectors are available
4, We could design and produce vrla battery for customized configurations is available (we could design and develop Lead acid battery according to your product work performance & structure apprearance)
| Batterymodel | TL121200 |
| Nominal voltage | 12V |
| Number of cell | 6 |
| Design Life | 10years |
| Capacity 77ºF (25ºC) | 20 hour rate (6.5A,10.5V) | 10 hour rate (12.0A,10.5V) | 5 hour rate
(20.0A,10.5V) | 1 hour rate (87.0A,9.6V) |
| 130.0Ah | 120.0Ah | 100.0Ah | 87.0Ah |
| Dimensions | Length | Width | Height | Total Height |
| 328±1mm | 171±1mm | 214±1mm | 218±1mm |
| Approx. weight | 32Kg |
| Internal resistance | Full charged at 77ºF(25ºC):5mOhms |
| Self discharge 68ºF(20ºC) | Capacity after 3 month storage | Capacity after 6 month storage | Capacity after month storage |
| 90% | 80% | 60% |
| Capacity affected by temperature(20 hour rate) | 104ºF(40ºC) | 77ºF(25ºC) | 32ºF(10ºC) | 5ºF(-15ºC) |
| 102% | 100% | 85% | 65% |
Operating temperature
range | Discharge | Charge | Storage |
| -20~60ºC | -10~60ºC | -20~60ºC |
| Max. discharge current 77ºF(25ºC) | 950A(5s) |
| Short circuit current | 2300A |
| Charge(Constant Voltage) | Float: 4.54~4.60V/77ºF(25ºC) |
Cycle:4.85~4.90V/77ºF(25ºC)
Max Current:30A |
