Lead Acid Battery, AGM type battery, Deep Cycle battery, Gel battery

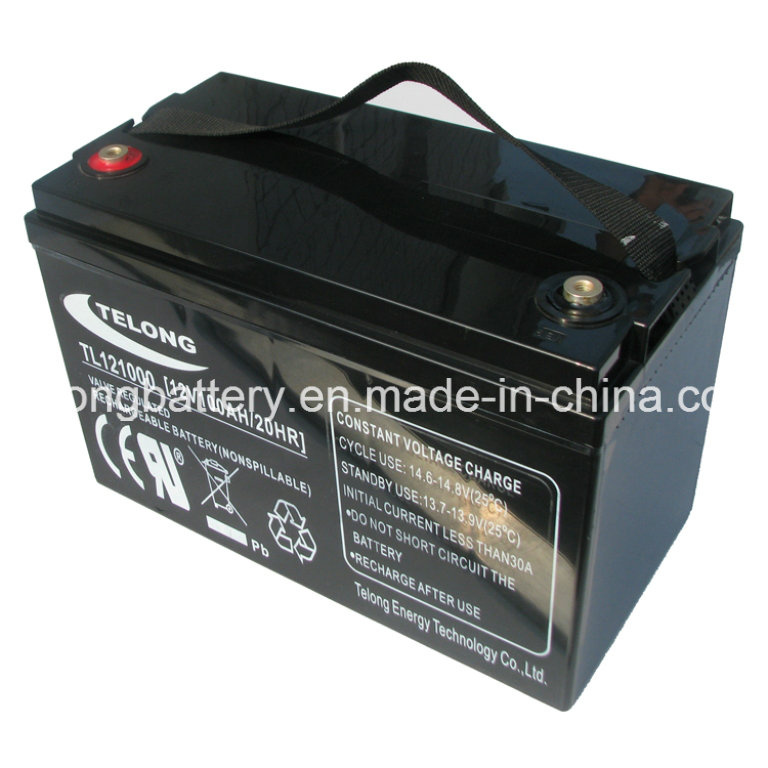

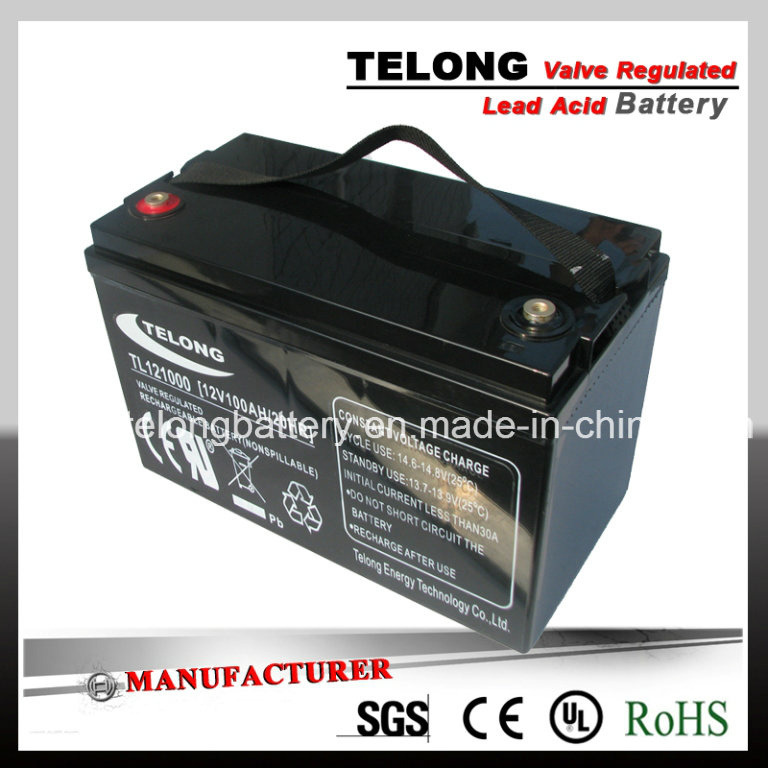

Battery detail description:Model: TL121000 (12V100AH/10HR)
Dimension: L328*W171*H214*TH218 mm
Net weight: 28.5KG
Packing Qty: 1 PCS/CTN, appro. 600 PCS/Container
Lead-time: 20 days for one 20' container
OEM acceptable
Warranty: 5 years
Our factory located in Shenzhen, China.
We have obtained CE, UL certificates and SGS test report for battery.

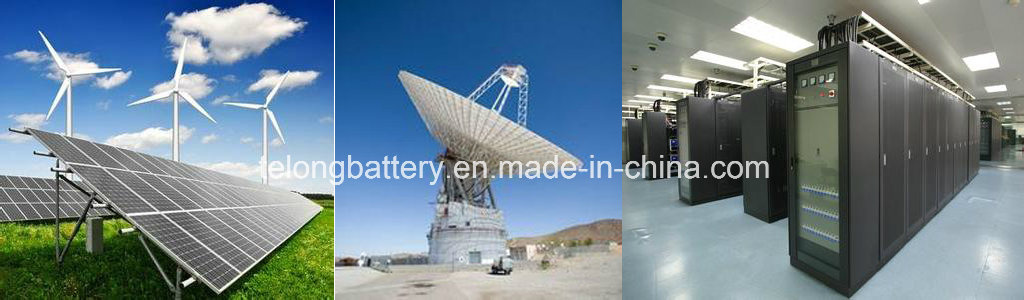

Application:UPS / Mini Solar System / Railway Signal / Electric Toy Car
Remote Switching / Control Equipment / Medical Equipment
Alarm System / Emergency Lighting System
Portable Light / Electronic Scale
Other Standby or Primary Power Supply
Pls contact us for battery datasheet.
www.telongbattery.com
Battery
Type | Nominal
Voltage
(V) | Nominal
Capacity
(Ah) | Dimension | Weight | Terminal
Type |
| Length | Width | Height | Total Height |
| mm | in | mm | in | mm | in | mm | in | kg | pound |
| TL1208 | 12 | 0.8 | 96 | 3.78 | 25 | 0.98 | 62 | 2.44 | 62 | 2.44 | 0.35 | 0.77 | T13/T9 |
| TL1213 | 12 | 1.3 | 97 | 3.82 | 43 | 1.69 | 52 | 2.05 | 58 | 2.28 | 0.59 | 1.3 | F1 |
| TL1220A | 12 | 2 | 143 | 5.63 | 24 | 0.94 | 65 | 2.56 | 65 | 2.56 | 0.57 | 1.26 | T10 |
| TL1220B | 12 | 2 | 150 | 5.9 | 20 | 0.79 | 90 | 3.54 | 90 | 3.54 | 0.68 | 1.5 | T11 |
| TL1222 | 12 | 2.2 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.75 | 1.65 | F1 |
| TL1223A | 12 | 2 | 182 | 7.17 | 24 | 0.94 | 61 | 2.4 | 61 | 2.4 | 0.78 | 1.72 | T10 |
| TL1223B | 12 | 2.3 | 178 | 7.01 | 35 | 1.38 | 61 | 2.4 | 67 | 2.64 | 0.94 | 2.07 | F1 |
| TL1225A | 12 | 2.5 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | 0.85 | 1.87 | F1/F2 |
| TL1225B | 12 | 2.5 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | 0.85 | 1.87 | T16 |
| TL1226A | 12 | 2.6 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.85 | 1.87 | F1 |
| TL1226B | 12 | 2.6 | 178 | 7.01 | 35 | 1.38 | 61 | 24 | 67 | 2.64 | 1 | 2.2 | F1 |
| TL1228A | 12 | 2.8 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | 0.9 | 1.98 | T16 |
| TL1228B | 12 | 2.8 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | 0.9 | 1.98 | F1/F2 |
| TL1229 | 12 | 2.9 | 79 | 3.11 | 55.5 | 2.19 | 98.5 | 3.88 | 104 | 4.09 | 1.2 | 2.64 | F1 |
| TL1232 | 12 | 3.2 | 134 | 5.28 | 67 | 2.64 | 61 | 2.4 | 67 | 2.64 | 1.2 | 2.64 | F1 |
| TL1235 | 12 | 3.5 | 134 | 5.28 | 67 | 2.64 | 61 | 2.4 | 67 | 2.64 | 1.32 | 2.91 | F1 |
| TL1240A | 12 | 4 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.28 | 2.82 | F2 |
| TL1240B | 12 | 4 | 195 | 7.68 | 47 | 1.85 | 71 | 2.8 | 76 | 2.99 | 1.52 | 3.35 | F1 |
| TL1245A | 12 | 4.5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.47 | 3.24 | F2 |
| TL1245C | 12 | 4.5 | 140 | 5.51 | 48 | 1.89 | 102 | 40.2 | 103 | 40.6 | 1.47 | 3.24 | F1/F2 |
| TL1250 | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.62 | 3.57 | F2 |
| TL1255 | 12 | 5.5 | 140 | 5.51 | 48 | 1.89 | 102 | 40.2 | 104 | 4.09 | 1.75 | 3.86 | F1/F2 |
| TL1260 | 12 | 6 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | 1.7 | 3.75 | F2 |
| TL1265 | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 1.9 | 4.19 | F2 |
| TL1270 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.05 | 4.51 | F2 |
| TL1272 | 12 | 7.2 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.15 | 4.74 | F2 |
| TL1275 | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.2 | 4.85 | F2 |
| TL1280 | 12 | 8 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.25 | 4.96 | F2 |
| TL1290A | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.5 | 5.51 | F2 |
| TL12100B | 12 | 10 | 151 | 5.94 | 98 | 3.86 | 110 | 4.33 | 114 | 4.49 | 3 | 6.6 | F2 |
| TL12120 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 3.4 | 7.49 | F2 |
| TL12140 | 12 | 14 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 4.05 | 8.93 | F2 |
| TL12150 | 12 | 15 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5 | 11 | F3 |
| TL12170A | 12 | 17 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.2 | 11.46 | F3 |
| TL12200A | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.4 | 11.9 | F3 |
| TL12220A | 12 | 22 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.8 | 12.8 | F3 |
| TL12240A | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 7.6 | 16.8 | F4 |
| TL12240C | 12 | 24 | 165 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.17 | 8.3 | 18.3 | F6 |
| TL12260A | 12 | 26 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8 | 17.6 | F4 |
| TL12280A | 12 | 28 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.3 | 18.3 | F4 |
| TL12280C | 12 | 28 | 165 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.17 | 9 | 19.8 | F6 |
| TL12300A | 12 | 30 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.8 | 19.4 | F4 |
| TL12330A | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.1 | 180 | 7.09 | 10.2 | 22.5 | F7 |
| TL12400A | 12 | 40 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 12.8 | 28.2 | F4 |
| TL12420A | 12 | 42 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 13.2 | 29.1 | F4 |
| TL12450A | 12 | 45 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 13.5 | 29.7 | F4 |
| TL12500A | 12 | 50 | 257 | 10.1 | 132 | 5.2 | 200 | 7.87 | 200 | 7.87 | 16 | 35.3 | F4/F11 |
| TL12500B | 12 | 50 | 250 | 9.84 | 160 | 6.3 | 178 | 7.01 | 197 | 7.76 | 15.8 | 34.82 | F5 |
| TL12550A | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 212 | 8.35 | 17.4 | 38.3 | F11 |
| TL12550C | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 227 | 8.94 | 16.2 | 35.7 | F5 |
| TL12600A | 12 | 60 | 250 | 9.84 | 160 | 6.3 | 178 | 7.01 | 197 | 7.76 | 18 | 39.7 | F5 |
| TL12600B | 12 | 60 | 259 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | 18.5 | 40.8 | F17/F21 |
| TL12650A | 12 | 65 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 19.6 | 43.2 | F5 |
| TL12750A | 12 | 75 | 258 | 10.2 | 166 | 6.54 | 206 | 8.11 | 210 | 8.27 | 22 | 48.3 | F11 |
| TL12750B | 12 | 75 | 258 | 10.2 | 166 | 6.54 | 206 | 8.11 | 235 | 9.25 | 22 | 48.5 | F9 |
| TL12750C | 12 | 75 | 260 | 10.2 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 22.5 | 49.6 | F21 |
| TL12750E | 12 | 75 | 260 | 10.2 | 169 | 6.65 | 208 | 8.19 | 228 | 8.98 | 22 | 48.5 | SAM |
| TL12800A | 12 | 80 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 22 | 48.5 | F5 |
| TL12900A | 12 | 90 | 306 | 12.1 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 26.5 | 58.4 | F21 |
| TL121000A | 12 | 100 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 220 | 8.66 | 30.5 | 67.2 | F5 |
| TL121000C | 12 | 100 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 234 | 9.21 | 28.5 | 62.2 | SAM |
| TL121150A | 12 | 115 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 220 | 8.66 | 32.5 | 69.42 | F5 |
| TL121200A | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 227 | 8.94 | 35.5 | 78.2 | F5 |
| TL121200C | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 240 | 9.45 | 33.5 | 73.8 | SAM |
| TL121340 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 288 | 11.3 | 40 | 88.2 | F12 |
| TL121500A | 12 | 150 | 482 | 19 | 170 | 6.69 | 242 | 9.53 | 242 | 9.53 | 44.5 | 98.1 | F5 |
| TL121800A | 12 | 180 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 55.5 | 122.3 | F12 |
| TL122000A | 12 | 200 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 60 | 132.2 | F12 |
| TL122200A | 12 | 220 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 62 | 136.6 | F12 |
| TL122250A | 12 | 225 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 63 | 138.9 | F12 |
| TL122500 | 12 | 250 | 520 | 20.5 | 269 | 10.6 | 220 | 8.6 | 224 | 8.82 | 69.5 | 153.2 | F12 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
