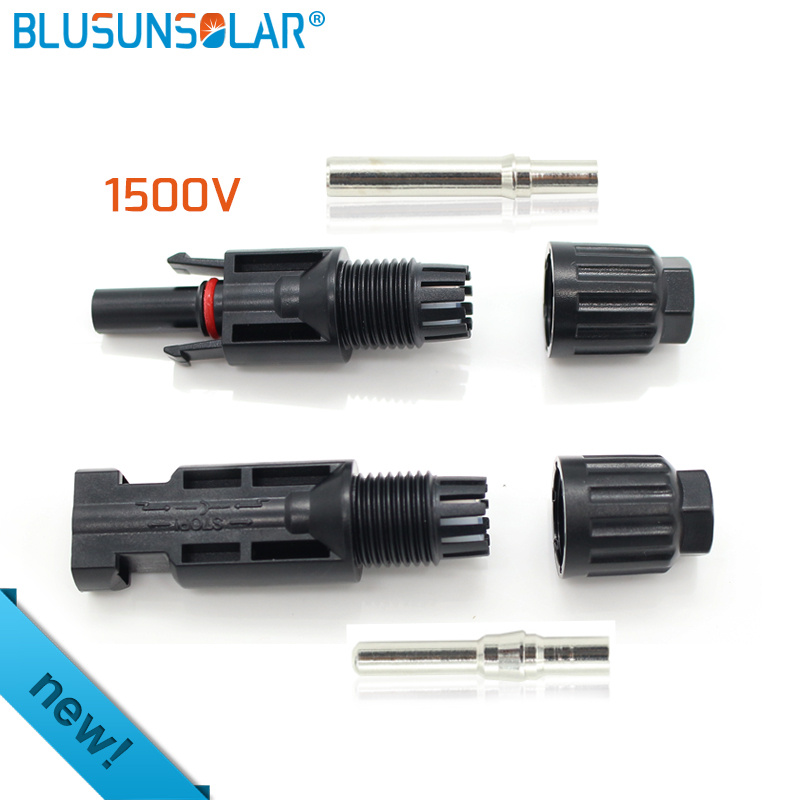

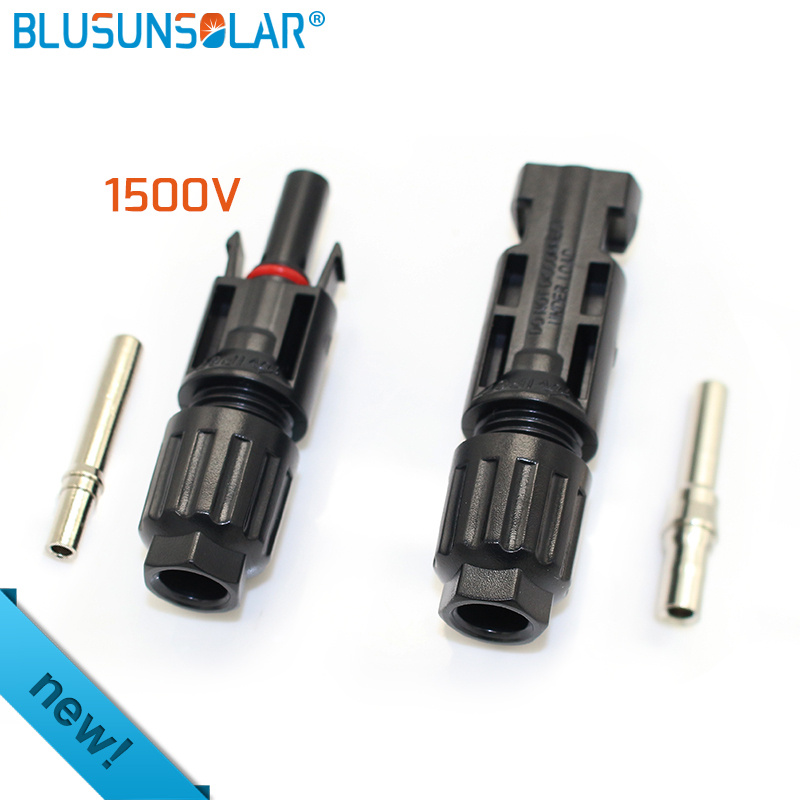

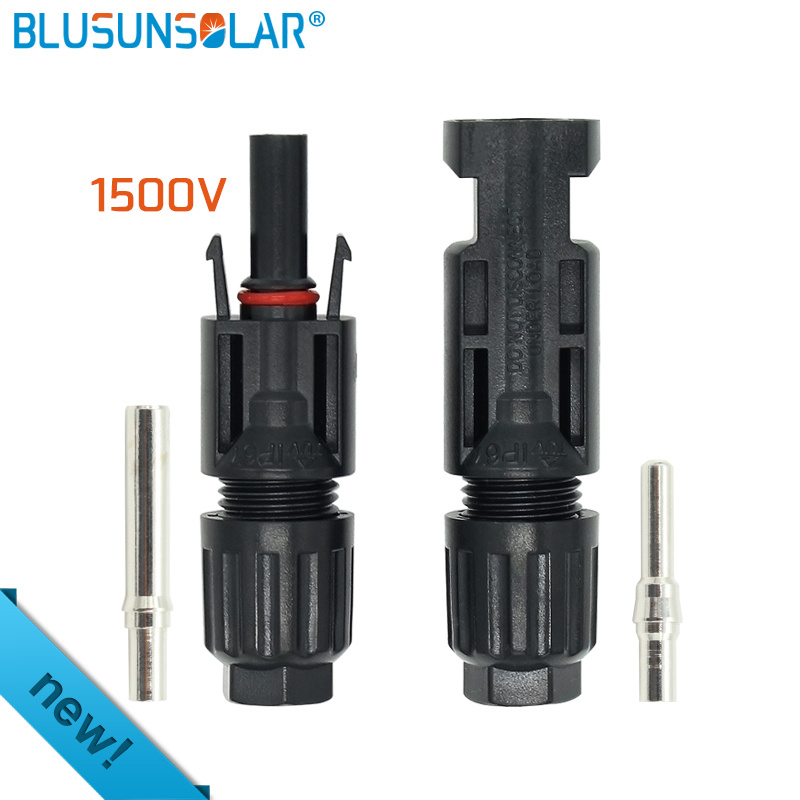

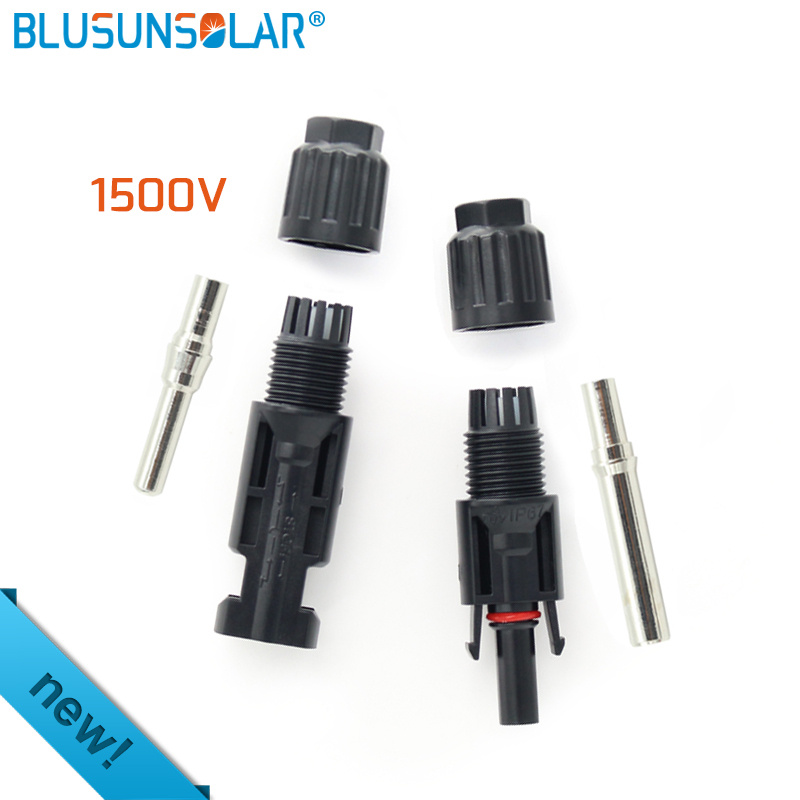

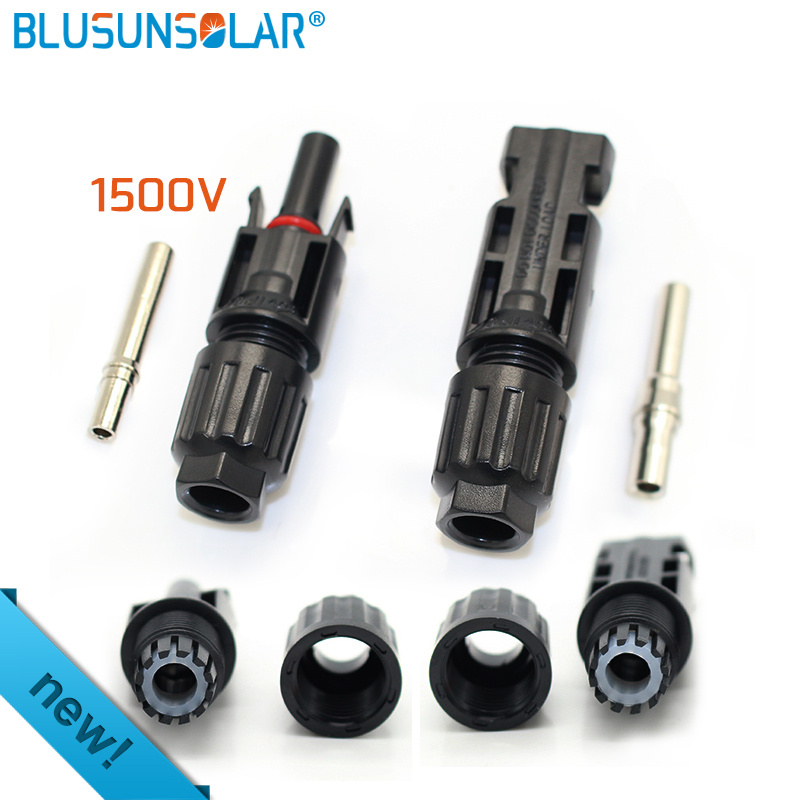

1500V Mc4 Connector Male and Female, Mc4 Solar Panel Connector for PV System

Name: 1500V Mc4 Connector Male and Female, Mc4 Solar Panel Connector for PV System
Brand: all-electronics-online.com
SKU: 838710585
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	US $ 1.35-1.59/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

PRODUCT DESCRIPTION:

Compatible with MC4 cable solar connector PV-KBT4/KST4.
15 Years of production experience in solar connectors
Quick and easy to install
Protection class IP68 Suitable for outdoor harsh environments
Stable connection & Reducing maintenance cost

CHARACTERISTICS:

Insulation material:	PPO
Rated Voltage	1500V
Test voltage	6KV(50Hz,1Min)
Contact material	copper, tin plated
Contact resistance	less than 0.5 m ohm
Degree of protection	IP68
Pollution Degree	2
Protection class	Class II
Flame calss	UL94-V0
Plug Force	less than 50N
Withdrawal force	more than 50N
Ambient temperature range	-40 ~ + 90.
Compatible cable cross sections Solar cable	2.5mm² ,4.0 mm² and 6.0 mm² (14 awg,12awg,10awg)
Pin dimention	4.0mm

Our sevices:
Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products , but only if products need to keep intact and original; any returns arising from the cost of freight and customs , will be borne by the buyer, buyer should be responsible to assume, otherwise, we have the rights to refuse to refund.

All in all, we believe our quality and service will satisfy your needs, we do not wish to see similar things happen, but onece them occurred, please contact us immediately, we will make every effort to resolve the problem and make you satisfied at the first time.

We will give you a best service.
1) Reply inquiry within 24 hours.
2) Answer your detailed question.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.

Our company:
LEADER ENERGY is a new energy enterprise,located in SHENZHEN, China,specializing in R&D,manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;

with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems, and by the products R&D,mold design,production,sales through-train service.With advanced technology,our products have been authorized by TUV Rhineland,UL,CE successfully.

LEADER Company adheres to self R&D,strict detection standards and perfect detection system, modernization management approaches and excellent talent teams,hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand.

Prod Model:	LJ0233
Insulation Material:	PPO
Rated Voltage:	1500 DC
Test Voltage:	6kv(50Hz, 1min)
Contact Material:	Copper, Tin Plated
Contact Resistance:	Less Than 0.5 M Ohm
Degree Of Protection:	IP68
Pollution Degree:	2
Protection Class:	Class II
Flame Calss:	UL94-V0
Ambient Temperature Range:	-40 ~ + 90.
Type:	Socket Terminals
Material:	Copper
Application:	Solar Power System
Certification:	TUV
Brand:	Sy.PV
