| Prod Model: |
LJ0253 |
| Insulation Material: |
PPO |
| Rated Voltage: |
1500 DC |
| Test Voltage: |
6kv(50Hz, 1min) |
| Contact Material: |
Copper, Tin Plated |
| Contact Resistance: |
Less Than 0.5 M Ohm |
| Degree Of Protection: |
IP68 |
| Pollution Degree: |
2 |
| Protection Class: |
Class II |
| Flame Calss: |
UL94-V0 |
| Ambient Temperature Range: |
-40 ~ + 90. |
| Type: |
Socket Terminals |
| Material: |
Copper |
| Application: |
Solar Power System |
| Certification: |
TUV |
| Brand: |
Sy.PV |
Product Description

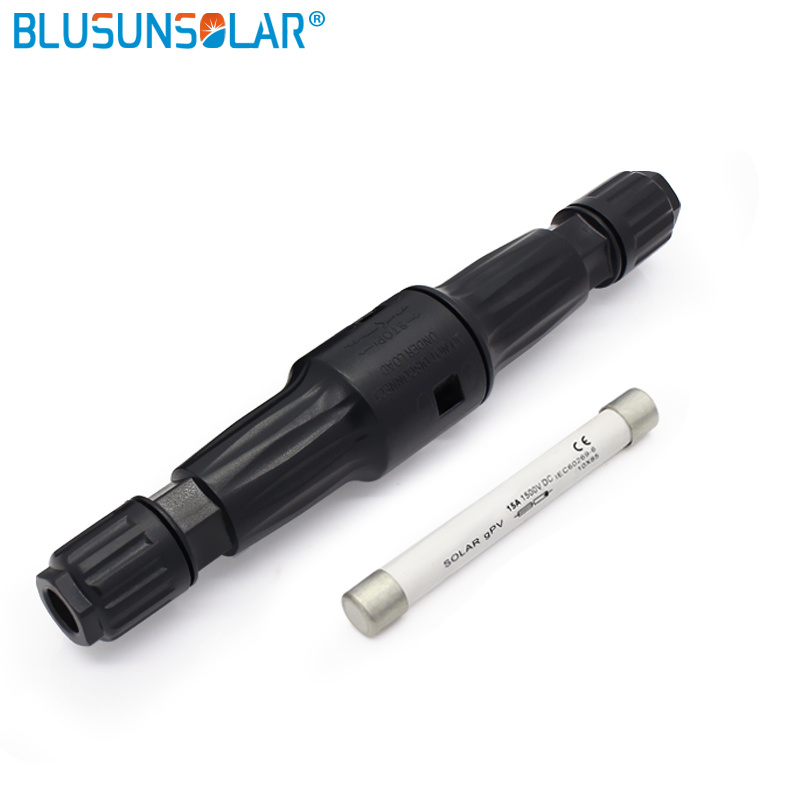

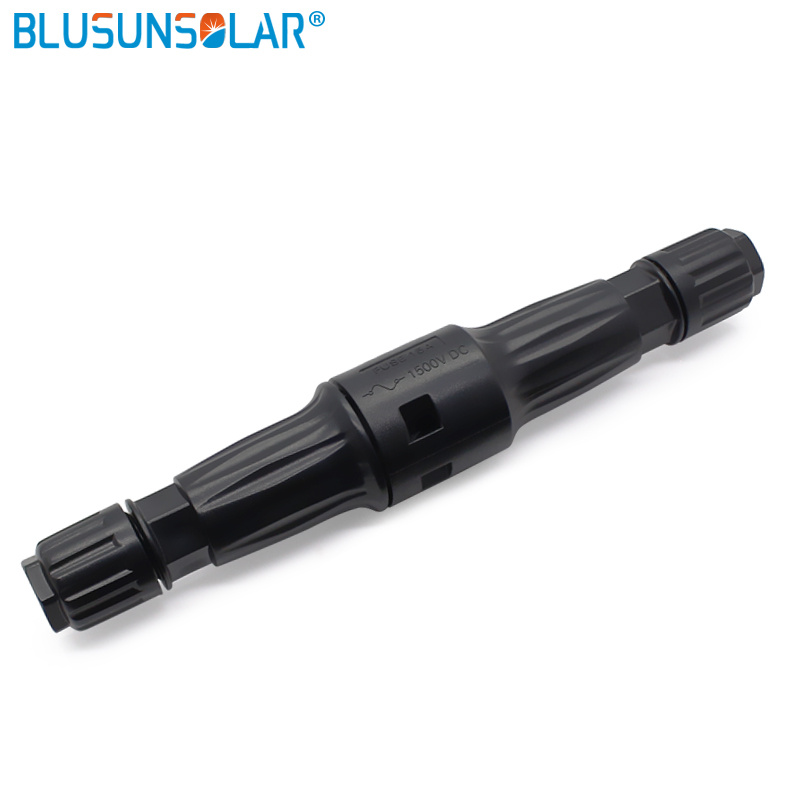

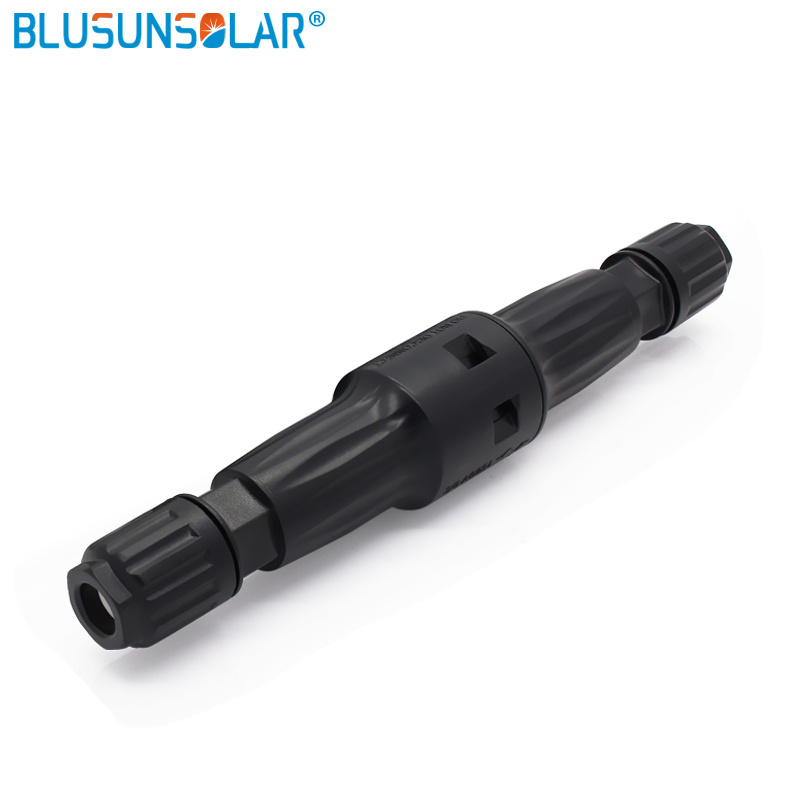

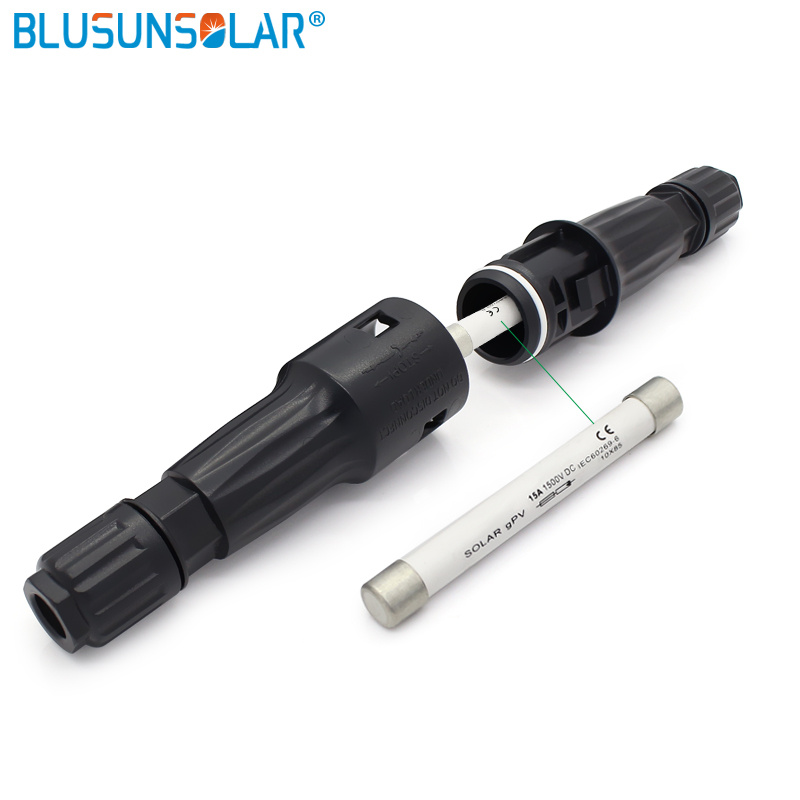

TUV Approved 1500VDC PV 4.0 fuse Connector with15A fuse used in Solar Panel System LJ0253
Products details :
1.Connector adopts touch of reed with inne-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation.
4.Quickly to connector.
5.Water proof and prevent dust.
6.Long life.
Technical Parament:
| Rared current | 30A | |
| Rated voltage | 1500VDC |
| Test voltage | 8KV(50Hz,1Min) |
| Contact material | Copper, tin plated |
| Insulation material | PPE |
| Degree of protection | IP68 |
| Rated Impulse Voltage | 12KV |
| Protection class | Class II |
| Flame calss | UL94-V0 |
| Plug Force/ Withdrawal Force | less than 50N/ more than 50N |
| Fuse specification | 1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,20A |
| Ambient temperature range | -40C ~ + 85C. |
| Suitable cable cross sections | 2.5~10mmsq / 14~8AWG |
| Suitable for fuze size(mm) | 10*85/14*65*14*85 |

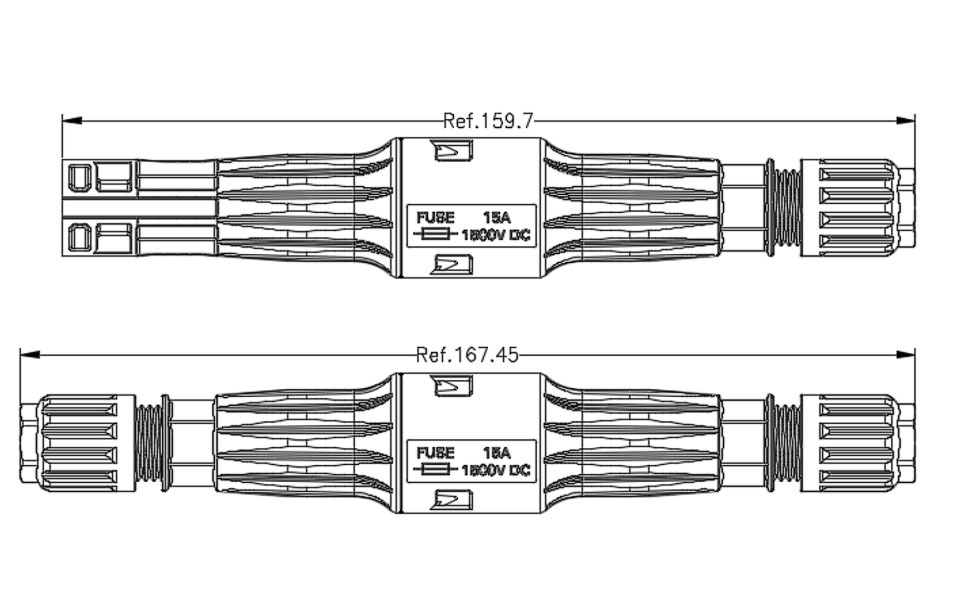

Dimension and main drawings:
