150uh 3.9A Choke Coil Inductor

Name: 150uh 3.9A Choke Coil Inductor
Brand: all-electronics-online.com
SKU: 838489245
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 0.26-0.35/Piece
Min Order:	2000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

*Special Features*

• DC/DC converter, EMI filter applications
• Low radiation
• Low core loss
• High current capacity

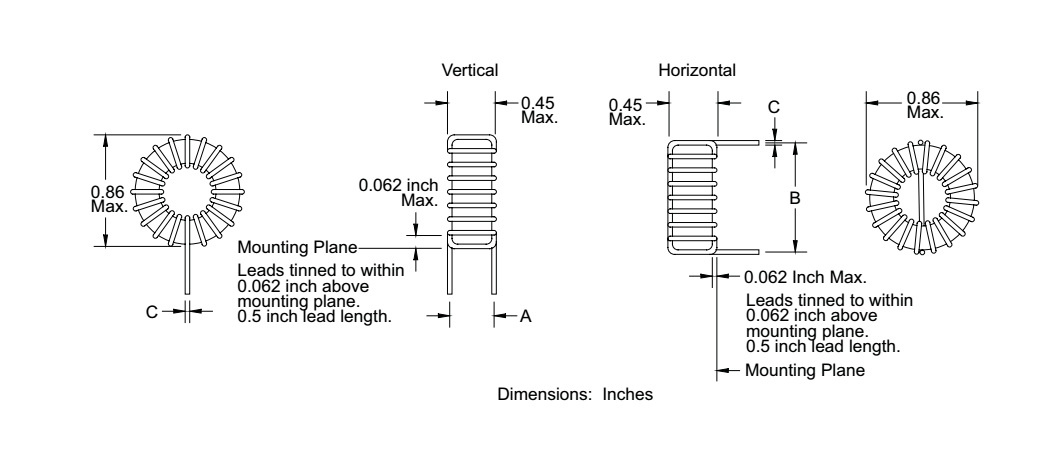

• Horizontal or vertical mount

• Low cost

• Operating temperature -55 to +105 °C


*Notes*

* Current to cause 30 °C max. temperature rise

** Insert -H or -V for mounting style before -LI

Example: 2113-V-LI

	L (µH)		L (µH)	DCR	Dim.	Dim.	Dim.
Number	@ 1 KHz	(A)	@ I rated	Max.	Nom.	Nom.	Nom.
2101-LI	10	10.8	6.3	0.006	0.34	0.77	0.053
2102-LI	12	10.3	7.4	0.007	0.34	0.77	0.053
2103-LI	15	7.7	10.2	0.012	0.33	0.76	0.042

2104-LI	18	7.4	11.9	0.013	0.33	0.76	0.042

2105-LI	22	7	14.2	0.015	0.33	0.76	0.042

2106-LI	27	5.3	19.1	0.026	0.32	0.75	0.034
2107-LI	33	5	22.8	0.029	0.32	0.75	0.034
2108-LI	39	4.8	26.4	0.032	0.32	0.75	0.034
2109-LI	47	3.6	34.7	0.055	0.31	0.75	0.027
2110-LI	56	3.4	40.6	0.06	0.31	0.75	0.027
2111-LI	68	3.3	48.3	0.067	0.31	0.75	0.027
2112-LI	100	2.4	75.2	0.13	0.31	0.74	0.022
2113-LI	120	2.2	88.5	0.15	0.31	0.74	0.022
2114-LI	150	3.4	84.3	0.062	0.35	0.79	0.034
2115-LI	180	2.6	113.1	0.11	0.34	0.77	0.027
2116-LI	220	2.4	134.4	0.12	0.34	0.77	0.027

2117-LI	270	1.8	181.6	0.21	0.33	0.76	0.022

2118-LI	330	1.7	216.3	0.23	0.33	0.76	0.022
2119-LI	390	1.7	250.1	0.25	0.33	0.76	0.022
2120-LI	470	1.6	293.8	0.28	0.35	0.76	0.022
2121-LI	560	1.5	341.5	0.3	0.35	0.79	0.022
2122-LI	680	1.4	403.2	0.33	0.35	0.79	0.022
2123-LI	820	1.4	472.8	0.37	0.35	0.79	0.022
2124-LI	1000	1.3	559.2	0.4	0.37	0.81	0.022

Prod Model:	LI-TR170600-001R
Core:	Different Type Core Avaliable
Type:	Choke Inductor
Structure:	Inductive Choke
Range Of Application:	High Frequency
Packaging Form:	Carton
Brand:	XP Power

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
