150W 7.5A 16~24V Programmable Constant Current LED Power Supply
| Price: |
US $ 25.7-38.6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
150W 7.5A 16~24V Outdoor Programmable Constant Current Waterproof LED Driver
Powerland's PLD150-SMT-24 offers high-temperature, digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 7.5A and designed for 0(0.05)-10V/ PWM/Rset/Clock/DMX ultra-deep dimming applications.
ApplicationsLED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 150W | 16V
…
24V | 7.5A | 92.5% | 90ºC | 2A | 173W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.FeaturesUltra-deep dimming dowm to 0.5% compatible with DMX
12V/100mA auxiliary output(optional)
Output current & output voltage programmable
>70,000 hours lifetime at 75ºC Tcase
>7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40oC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, external resistor, clock,DMX dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model | PLD150-SMT-24 |
| Output Voltage | 16~24V |
| Output Current | 7.5A |
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
| Dimming | 0(0.05V)~10V, PWM, External Resistor, Clock,DMX |
| Current Programmable | Yes |
| Output Power | 150W |
| Max. Current Ripple | 750mA |
| Max. Voltage Ripple | ±0.5% |
| Voltage Range | 90~305Vac |
| Frequency Range | 47~63Hz |
| Max. Input Current | 2A |
| Max. Input Power | 173W |
| Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
| Efficiency | 92.5% |
| Max. Open Circuit Voltage | 33V |
| THD | <20% @ 100-277Vac & 80~100% full load |
| Protections | OVP, OTP, OCP, SCP |
| Environmental Protection | UL Dry & Damp & Wet |
| Working Temperature | -40~+70ºC |
| Max. Case Temperature | 90ºC |
| Surge Protection | L-N 5.5kV, L/N-Earth 11kV |
| Agency Approbations | UL8750 |
| Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
| Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
| Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
| Dimension | 200x68x42.5 mm |
| Mounting Length | 212 mm |
| Overall Length | 226 mm |
| Weight | 1.15 kg (3.20 lb) |
| Life Time | >70,000 hours @ full load, 75oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
Electrical Specifications

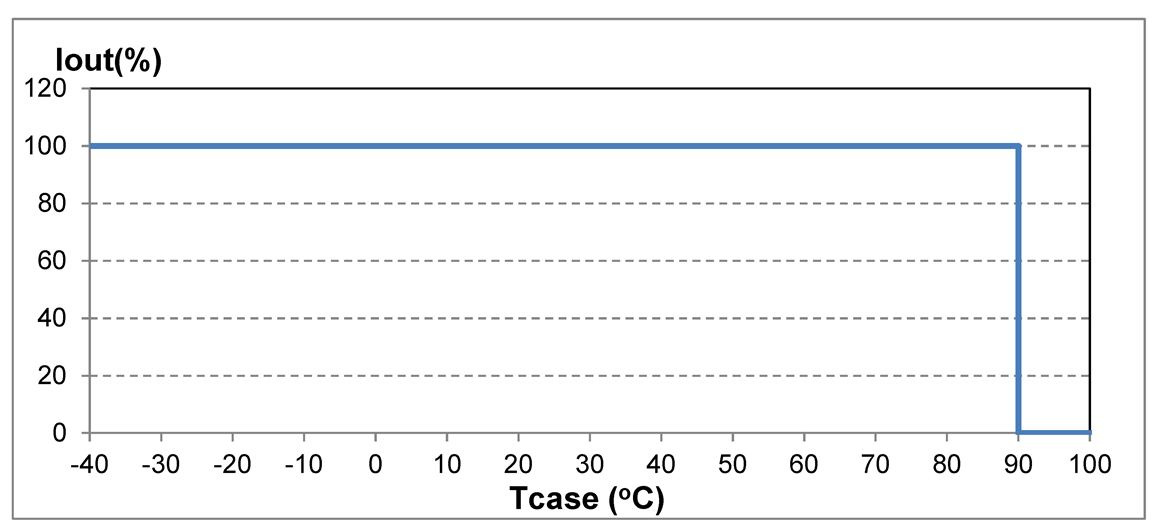

Output Current vs. Case Temperature (with ±5oC Tolerance)
Electrical Specifications

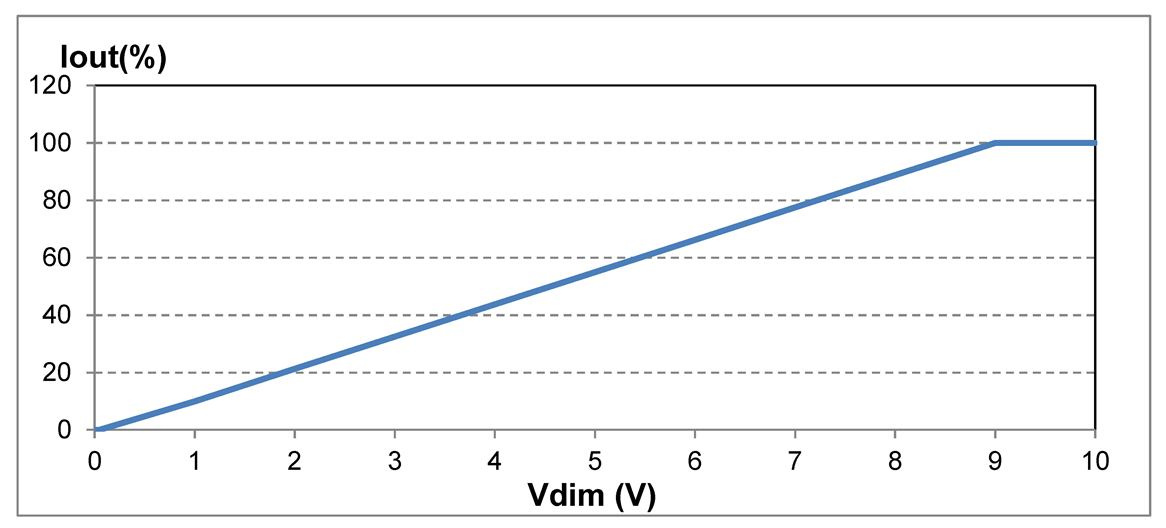

Output Current vs. 0(0.05V)-10V Dimming Control Voltage
Electrical Specifications

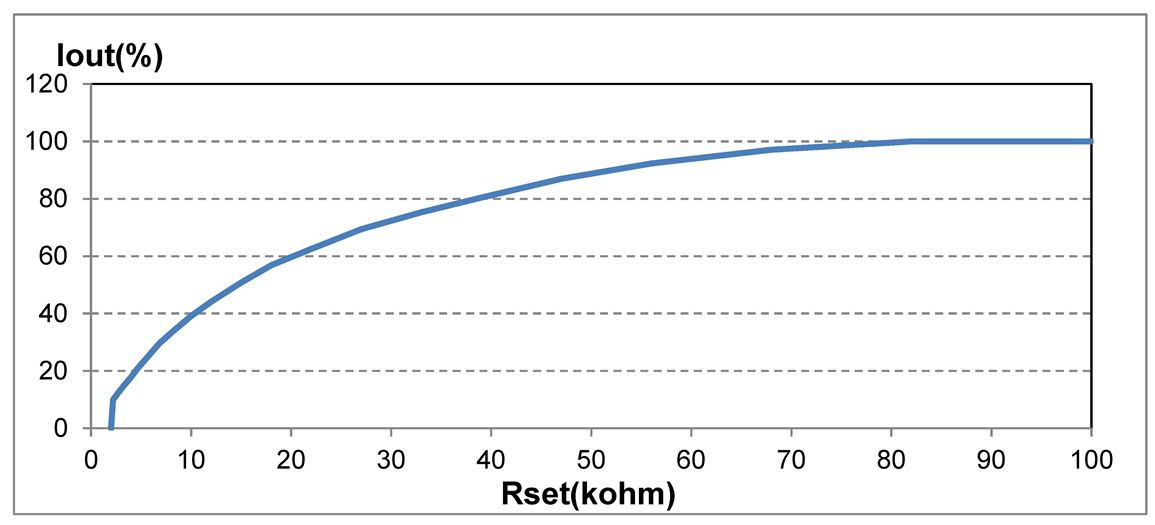

Output Current vs. External Setting Resistor
Performance Characteristics

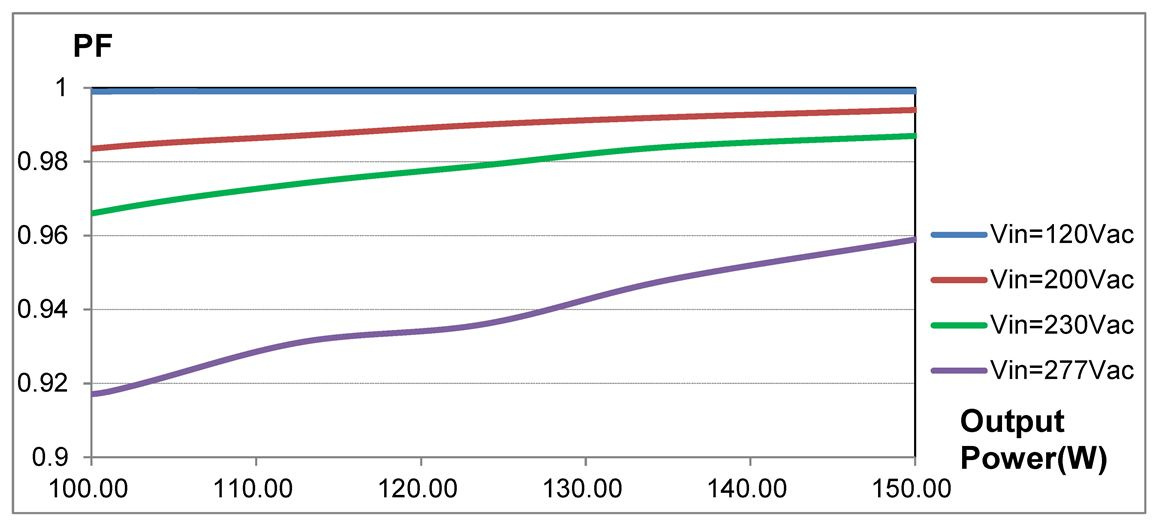

Power Factor vs. Output Power

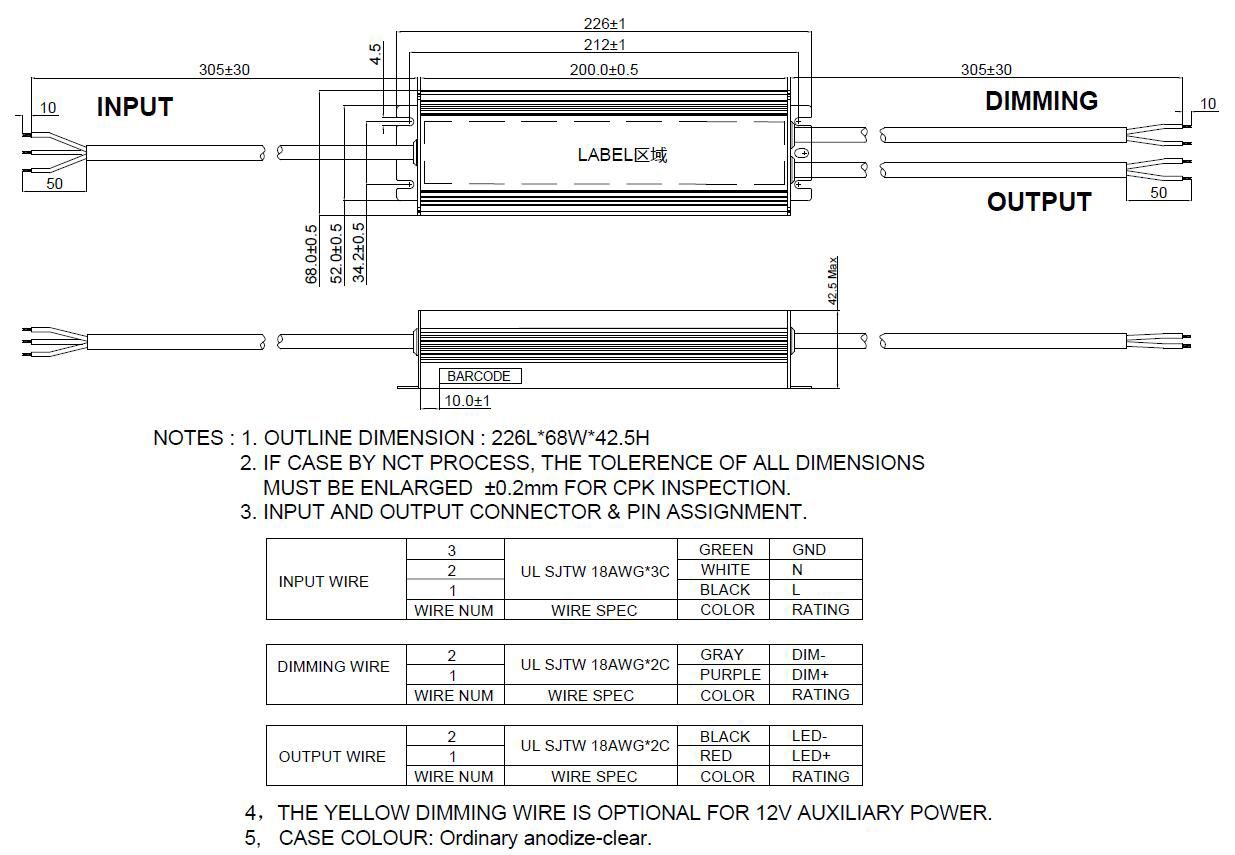

Mechanical Specification
| Prod Model: |
PLD150-SMT-24 |
| Output Power: |
150W |
| Dimming: |
0(0.05V)~10V, PWM, External Resistor, Clock |
| Output Voltage: |
16~24V |
| Output Current: |
7.5A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
200X68X42.5mm |
| Brand: |
Fsp-Powerland |
