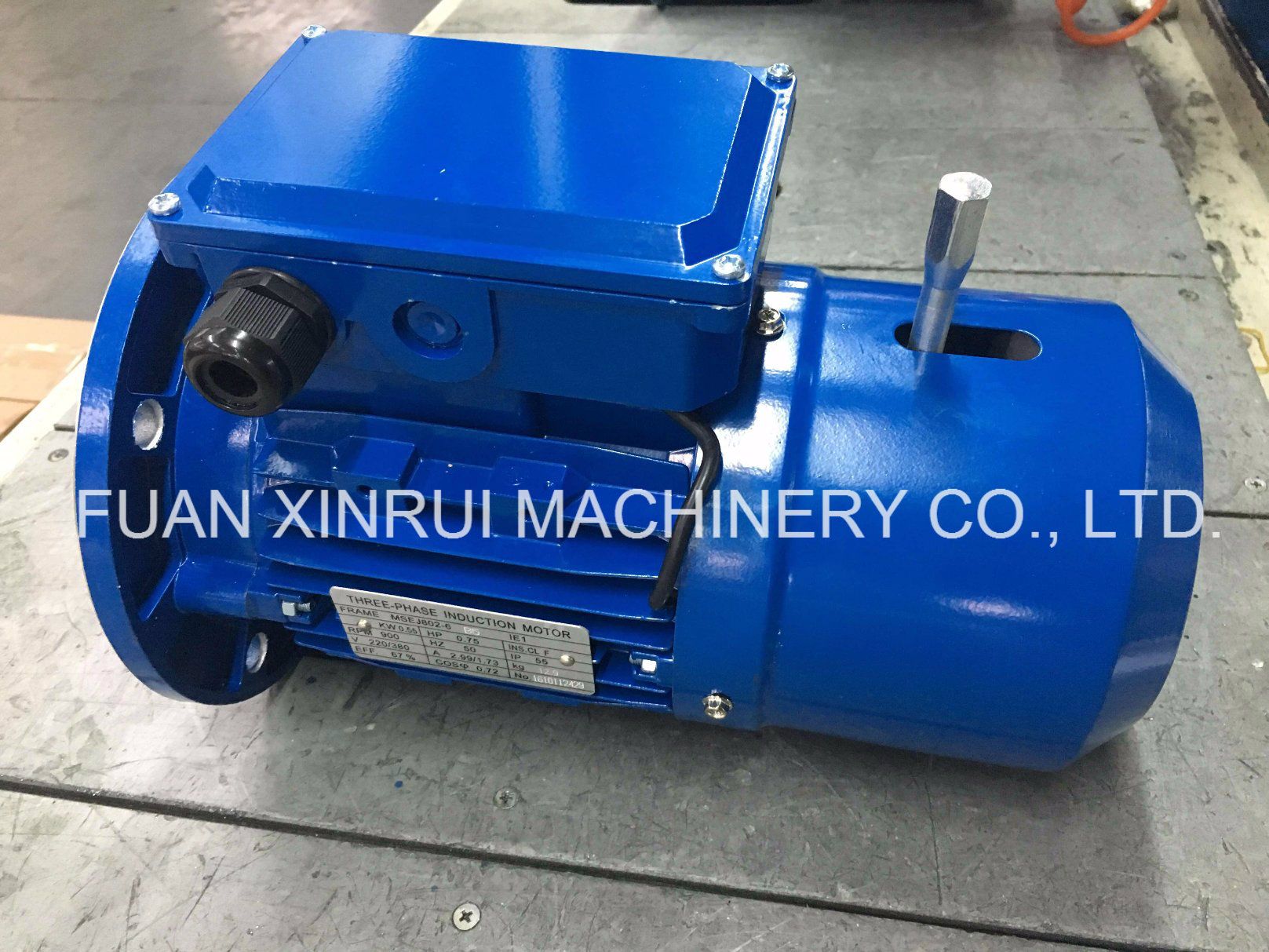

15kw/Msej160/4poles/Alu-Housing Ie1 Three Phase AC Asynchronous Brake Motor with Rectifier

Prod Model:	MSEJ160L1-4
Working Type:	S1
Working Condition:	Machenical Equipment&Driving Machines
Cooling By:	Fan-Cooled
Colors:	Ral5010 or Onrequest Powder-Coating
Number Of Stator:	Three-Phase
Function:	Driving
Brand:	Xr
Certification:	Ce

Product Description

Three phase AC brake motor

Product Description:

 1.Electric brake motor is totally enclosed and fan-cooling, three-phase squirrel cage induction electric motor that is newly designed in conformity with the relevant requirements of IEC standards.

 2.AC brake  motor is a kind of low-voltage 3-phase cage induction electric motor, which is a basic series for general uses with frame range 56-160 and it's a new product with the national unified design.

 3.1400rpm middle speed brake electric motor has the advantages of high efficiency, energy saving, fine operation performance, small vibration, low noise, long service life, high reliability, convenient maintenance, big breakaway torque, Fixing measurement and power grade completely conform to IEC standard.It employs Grade F insulation, IP55 class for shell protection and IC411 cooling mode.

 4.Induction brake  motor is commonly applied in machinery and equipment without special requirements, such as agricultural machinery, food machinery, fan, agitator and air compressor, etc.



Motor Basic Information
Frame size	63-160
Pole	2P/4P/6P/8P
Rated voltage	220/380V;380/660;230/400;400/690
Frequency	50/60Hz
Power	0.12kw-18.5Kw
Protection degree	IP54/55
Implement Method	B3/B14/B34/B5/B35
Cooling method	IC411
Insulation class	F
Ambient Temperature	-15°C~40°C
Altitude	not exceed 1000 Meter
Working Duty	S1(Continuous)

XR has it advantage in comprehensively intergrat all the strenghts belowing to make good quality products:
 1.automatic&semi-automatic progressive punching machine: we can punch lamination all by ourselves;

 2.automatic stator embedding wire and shaping: we have perform automatic embedding and shaping;

 3.advanced powder coating technique: which has stronger adhesiveness than painting.It makes motor appearance even, fine&smooth,also stand up to peeling off;

 4.Three labs:Frame 56-355 motor are available for type testing operation, which provides a matured technology support   platform for high-quality electric motor.



Model	Power	Current  (A)			Current  (A)			Speed	Eff			Power	Tst/Tn	Tmax/Tn	Tmin/Tn	lst/ln	Noise
	(kW)	220V	380V	660V	230V	400V	690V	(r/min)	100%	75%	50%	factor	(Times)	(Times)	(Times)	(Times)	dB(A)
2Poles /3000rpm/50HZ
MSEJ631-2	0.18	0.92	0.53	0.31	0.88	0.51	0.29	2780	66.5	64.2	56.8	0.77	2.3	2.5	2.4	4.1	61
MSEJ632-2	0.25	1.19	0.69	0.40	1.14	0.65	0.38	2780	69.8	68.8	62.8	0.79	2.6	2.5	2.4	4.3	61
MSEJ633-2	0.37	1.72	1.00	0.57	1.65	0.95	0.55	2750	71.4	71.2	65.9	0.79	2.8	2.6	2.6	4.7	62
MSEJ711-2	0.37	1.70	0.99	0.57	1.63	0.94	0.54	2830	71.3	70.4	65.2	0.8	2.8	2.9	2	5.9	64
MSEJ712-2	0.55	2.52	1.46	0.84	2.41	1.39	0.80	2815	71.6	71	66.1	0.8	2.7	2.7	1.8	6	64
MSEJ713-2	0.75	3.25	1.88	1.08	3.11	1.79	1.04	2820	73.8	73.9	70.3	0.82	3.0	3.0	2.0	6.6	65
MSEJ801-2	0.75	3.15	1.83	1.05	3.02	1.73	1.01	2830	75.2	75.6	72.2	0.83	3	2.8	2	6.2	67
MSEJ802-2	1.1	4.40	2.55	1.47	4.21	2.42	1.40	2840	79	79.8	77.7	0.83	2.6	3.1	2.6	6.1	67
MSEJ803-2	1.5	5.70	3.30	1.90	5.46	3.14	1.82	2820	81.2	82.5	81.3	0.85	3.2	3	2.5	7.2	70
MSEJ90S-2	1.5	5.73	3.32	1.91	5.48	3.15	1.83	2850	80.8	81.2	78.9	0.85	2.8	3.3	2.6	7.7	72
MSEJ90L1-2	2.2	8.19	4.74	2.73	7.84	4.51	2.61	2860	82.9	83.4	81.4	0.85	3.7	3.9	3.3	8.8	72
MSEJ90L2-2	3	11.1	6.43	3.70	10.6	6.11	3.54	2830	82.4	83.5	82.3	0.86	4.4	4.2	3.5	8	74
MSEJ100L1-2	3	10.9	6.32	3.64	10.4	6.00	3.48	2875	83.9	84.5	83	0.86	2.8	3.2	2	8.1	76
MSEJ100L2-2	4	13.8	7.99	4.60	13.2	7.59	4.40	2870	85.5	86.5	85.8	0.89	3.2	3.4	2.2	8.8	77
MSEJ112M-2	4	13.2	7.63	4.40	12.6	7.25	4.20	2870	85.6	87.0	86.8	0.93	2.6	2.85	1.75	8.1	77
MSEJ112L-2	5.5	18.0	10.4	6.00	17.2	9.9	5.74	2890	87.1	88	87.6	0.92	3.1	3.3	2	9.4	78
MSEJ132S1-2	5.5	18.5	10.7	6.17	17.7	10.2	5.90	2900	86.6	87.4	86.5	0.90	2.25	3.1	1.5	7.9	80
MSEJ132S2-2	7.5	24.6	14.2	8.19	23.5	13.5	7.84	2900	88.0	88.8	88.3	0.91	2.4	3.25	1.5	8.5	80
MSEJ132M1-2	9.2	30.8	17.8	10.3	29.5	17.0	9.83	2930	88	88	86.4	0.89	2	2.2	1.2	7.5	81
MSEJ132M2-2	11	36.3	21.0	12.1	34.7	20.0	11.6	2930	88.4	88.6	87.5	0.9	2	2.2	1.2	7.5	83
MSEJ160M1-2	11	36.4	21.1	12.1	34.8	20.0	11.6	2920	88.8	89.4	88.6	0.89	2.6	2.95	1.85	7.1	86
MSEJ160M2-2	15	49.3	28.5	16.4	47.2	27.1	15.7	2910	89.1	90.0	89.6	0.90	2.2	2.8	1.8	6.4	86
MSEJ160L-2	18.5	59.3	34.4	19.8	56.8	32.6	18.9	2930	90.3	90.9	90.3	0.91	2.9	3.05	1.65	8.4	86
4Poles /1500rpm/50HZ
MSEJ631-4	0.12	0.89	0.51	0.30	0.85	0.49	0.28	1390	58.5	54.3	45.6	0.61	2.65	2.8	2.7	3.2	52
MSEJ632-4	0.18	1.15	0.67	0.38	1.10	0.63	0.37	1365	64.2	62.5	55.9	0.64	2.8	2.55	2.4	3.6	52
MSEJ633-4	0.25	1.45	0.84	0.48	1.39	0.80	0.46	1370	68.3	67.5	62.1	0.66	2.7	2.7	2.4	3.9	54
MSEJ711-4	0.25	1.38	0.80	0.46	1.32	0.76	0.44	1395	65.1	63.1	55.8	0.73	2	2.15	1.6	4.2	55
MSEJ712-4	0.37	1.90	1.10	0.63	1.82	1.05	0.61	1390	68.6	68.2	62.9	0.74	2.25	2.35	1.95	4.6	55
MSEJ713-4	0.55	2.81	1.63	0.94	2.69	1.54	0.90	1390	71.9	71.6	66.8	0.72	2.8	2.8	2.4	4.8	57
MSEJ801-4	0.55	2.74	1.59	0.91	2.62	1.51	0.87	1400	70.9	70.5	65.5	0.74	2.25	2.55	1.95	4.9	58
MSEJ802-4	0.75	3.36	1.94	1.12	3.21	1.85	1.07	1390	74.4	76.0	73.9	0.79	2.5	2.55	2.05	5.4	58
MSEJ803-4	1.1	4.90	2.84	1.63	4.69	2.69	1.56	1390	74.6	75.7	73.3	0.79	2.9	2.9	2.4	5.9	60
MSEJ90S-4	1.1	4.90	2.83	1.63	4.68	2.69	1.56	1400	75.5	76.7	74.4	0.78	2.9	2.7	2.15	6	61
MSEJ90L1-4	1.5	6.48	3.75	2.16	6.20	3.56	2.07	1410	79.6	80.2	78.0	0.76	3.4	3.3	2.7	6.9	61
MSEJ90L2-4	2.2	9.76	5.65	3.25	9.33	5.37	3.11	1410	78.9	79.4	77	0.75	3.8	2.6	3.2	7.2	63
MSEJ100L1-4	2.2	8.71	5.05	2.90	8.34	4.79	2.78	1420	82.0	83.3	82.3	0.81	2.4	2.7	2.15	6.3	64
MSEJ100L2-4	3	11.5	6.64	3.82	11.0	6.31	3.66	1430	83.7	84.8	83.8	0.82	2.6	3	2.15	6.8	64
MSEJ100L3-4	4	15.2	8.80	5.07	14.5	8.36	4.85	1430	84.2	85.5	85.3	0.82	2.2	2.3	1.5	7	65
MSEJ112M-4	4	14.9	8.60	4.95	14.2	8.17	4.74	1440	84.7	86.0	85.4	0.83	2.5	2.9	2.05	7.1	65
MSEJ112L-4	5.5	20.4	11.8	6.81	19.5	11.2	6.51	1435	85.9	87.1	86.6	0.82	2.5	2.95	2.2	7.2	68
MSEJ132S-4	5.5	19.6	11.4	6.54	18.76	10.8	6.25	1445	86.4	87.8	87.7	0.85	2.15	2.85	1.75	7.5	71
MSEJ132M-4	7.5	25.9	15.0	8.62	24.7	14.2	8.24	1450	87.6	88.8	88.5	0.87	2.1	2.9	1.65	8.6	71
MSEJ132L1-4	9.2	31.3	18.1	10.4	30.0	17.2	10.0	1450	88.6	89.5	89.1	0.87	2.8	2.4	2	8.4	74
MSEJ132L2-4	11	37.3	21.6	12.4	35.6	20.5	11.9	1450	90.1	91.1	91	0.86	3	2.5	2	8.9	74
MSEJ160M-4	11	39.7	23.0	13.2	37.9	21.8	12.6	1450	87.7	89.6	90.3	0.83	2.05	2.25	1.55	6.1	75
MSEJ160L1-4	15	51.9	30.1	17.3	49.7	28.5	16.6	1455	88.7	90.0	90.2	0.86	2.2	2.45	1.4	7.3	75
MSEJ160L2-4	18.5	63.1	36.5	21.0	60.4	34.7	20.1	1460	90.5	91	90.6	0.85	2.2	2.2	1.4	7.5	78



Model	Power	Current  (A)			Current  (A)			Speed	Eff			Power	Tst/Tn	Tmax/Tn	Tmin/Tn	lst/ln	Noise
	(kW)	220V	380V	660V	230V	400V	690V	(r/min)	100%	75%	50%	factor	(Times)	(Times)	(Times)	(Times)	dB(A)
6Poles /1000rpm/50HZ
MSEJ631-6	0.09	0.75	0.44	0.25	0.72	0.41	0.24	890	50.7	47.6	39.8	0.62	2	2.2	1.9	2.9	50
MSEJ632-6	0.12	0.97	0.56	0.32	0.93	0.54	0.31	895	53.7	50.9	43.2	0.60	2.3	2.2	2.1	2.8	50
MSEJ711-6	0.18	1.11	0.64	0.37	1.06	0.61	0.35	905	63.0	61.6	55.4	0.67	2.15	2.4	2	3.5	52
MSEJ712-6	0.25	1.56	0.90	0.52	1.49	0.86	0.50	885	62.6	62.0	55.8	0.67	2.05	2.3	2.05	3.2	52
MSEJ713-6	0.37	2.32	1.34	0.77	2.22	1.28	0.74	890	65.4	64.4	58.2	0.64	2.3	2.5	2.3	3.4	54
MSEJ801-6	0.37	2.06	1.19	0.69	1.97	1.13	0.66	920	68.1	67.7	62.2	0.69	1.95	2.25	1.8	3.7	56
MSEJ802-6	0.55	2.74	1.59	0.91	2.62	1.51	0.87	920	72.5	73.0	69.3	0.73	2.25	2.45	2.05	4.3	56
MSEJ803-6	0.75	3.65	2.11	1.22	3.49	2.01	1.16	910	72.9	74.2	71.3	0.74	2.2	2.4	2.1	4.1	58
MSEJ90S-6	0.75	3.83	2.22	1.28	3.67	2.11	1.22	920	72.5	73.3	70.0	0.71	1.8	2.2	1.7	4.1	59
MSEJ90L1-6	1.1	5.47	3.17	1.82	5.23	3.01	1.74	910	73.5	75.2	72.9	0.72	1.95	2.25	1.85	4.2	59
MSEJ90L2-6	1.5	7.12	4.12	2.37	6.81	3.92	2.27	900	74.7	77	75.5	0.74	2.1	2.3	1.9	4.2	60
MSEJ100L1-6	1.5	6.77	3.92	2.26	6.47	3.72	2.16	935	78.5	79.9	78.2	0.74	2.05	2.35	1.8	5	61
MSEJ100L2-6	2.2	9.87	5.71	3.29	9.44	5.43	3.15	950	77	78.4	77.8	0.76	2.2	2.2	1.3	6	63
MSEJ112M-6	2.2	9.3	5.38	3.10	8.89	5.11	2.96	925	79.2	81.8	81.7	0.78	1.9	2.25	1.75	4.7	64
MSEJ112L-6	3	12.9	7.49	4.31	12.4	7.12	4.13	950	79	80.9	80.9	0.77	2.2	2.2	1.3	6	64
MSEJ132S-6	3	12.5	7.22	4.16	11.9	6.86	3.98	955	82.5	84.5	84.3	0.77	1.7	2.15	1.45	5.3	64
MSEJ132M1-6	4	16.2	9.39	5.40	15.5	8.92	5.17	965	85.2	85.8	84.4	0.76	2.3	2.9	1.6	6.6	68
MSEJ132M2-6	5.5	21.5	12.4	7.16	20.6	11.8	6.9	960	85.9	87.2	86.8	0.78	2.5	2.7	1.7	6.7	68
MSEJ132L-6	7.5	30.1	17.4	10.0	28.8	16.5	9.6	960	85	86.4	86.4	0.77	2	2	1.3	6.5	68
MSEJ160M-6	7.5	30.3	17.6	10.1	29.0	16.7	9.7	970	86.8	87.6	86.7	0.75	2.1	2.7	1.65	6.1	68
MSEJ160L-6	11	42.5	24.6	14.2	40.7	23.4	13.6	965	87.2	88.6	88.6	0.78	2.25	2.35	1.5	6.9	73
8Poles /750rpm/50HZ
MSEJ711-8	0.09	0.97	0.56	0.32	0.93	0.54	0.31	680	44.9	39.6	31.1	0.54	2.3	2.6	2.2	2.4	50
MSEJ712-8	0.12	1.15	0.67	0.38	1.10	0.63	0.37	680	51.7	47.1	38.4	0.53	2.5	2.75	2.5	2.7	50
MSEJ713-8	0.18	1.51	0.88	0.50	1.45	0.83	0.48	670	55.8	52.5	44.4	0.56	2.3	2.5	2.4	2.8	52
MSEJ801-8	0.18	1.24	0.72	0.41	1.18	0.68	0.39	705	64.4	61.3	53.9	0.59	2.2	2.65	2	3.6	52
MSEJ802-8	0.25	1.64	0.95	0.55	1.57	0.90	0.52	700	66.3	64.3	57.8	0.60	2.1	2.5	2.05	3.5	52
MSEJ90S-8	0.37	2.37	1.37	0.79	2.26	1.30	0.75	690	66.3	65.4	59.6	0.62	1.55	2	1.5	3.2	56
MSEJ90L-8	0.55	3.26	1.89	1.09	3.12	1.79	1.04	680	69.0	69.9	65.8	0.64	1.6	1.95	1.6	3.3	56
MSEJ100L1-8	0.75	3.88	2.24	1.29	3.71	2.13	1.24	700	75.2	74.8	70.8	0.68	2.1	2.55	1.95	4.4	59
MSEJ100L2-8	1.1	5.16	2.99	1.72	4.94	2.84	1.65	685	74.6	76.7	75.1	0.75	1.8	2.15	1.65	4.1	59
MSEJ112M-8	1.5	7.24	4.19	2.41	6.93	3.98	2.31	700	78.3	78.9	76.4	0.69	2.2	2.5	2.1	4.5	61
MSEJ132S-8	2.2	10.0	5.81	3.35	9.6	5.52	3.20	705	78.8	80.7	79.6	0.73	1.8	2.25	1.65	4.5	64
MSEJ132M-8	3	13.0	7.51	4.33	12.4	7.14	4.14	705	80.9	82.6	81.9	0.75	2.1	2.5	1.8	5.1	64
MSEJ160M1-8	4	18.0	10.4	5.99	17.2	9.88	5.73	710	81.7	83.0	82.0	0.72	1.8	2.25	1.5	4.7	68
MSEJ160M2-8	5.5	23.4	13.5	7.79	22.4	12.9	7.45	715	84.6	85.7	84.9	0.73	2.15	2.55	1.6	5.2	68
MSEJ160L-8	7.5	30.3	17.5	10.1	29.0	16.67	9.66	715	85.8	87.1	86.7	0.76	2.15	2.45	1.4	5.4	68
