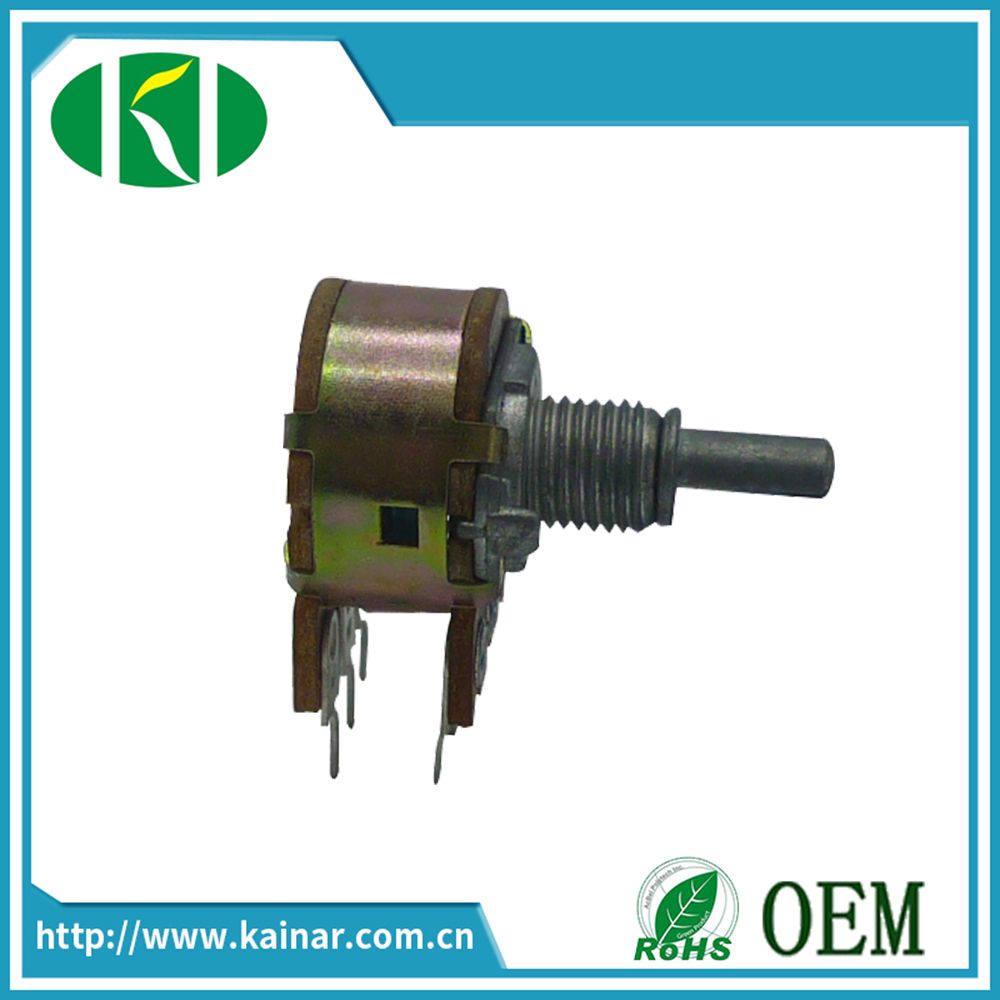

16-17mm B4.7k Rotary Potentiometer with Flat Shaft

Prod Model:	WH148-1B-2-4mm
Power Rating:	0.125W 0.06W
Rated Voltage:	250V 150V
Tolerance Of Resistance:	±20%
Rotational Noise:	≤47mv
Insulation Resistance:	DC500V 100mohm Min
Withstand Voltage:	AC500V 1minute
Total Rotational Angle:	300±5º
Operating Force:	20-200GF.Cm
Mechanical Endurance:	10000turns Min
Resistance:	Variable Resistor
Material:	Carbon Film Resistor
Type:	Rotary Potentiometer
Function For Resistance:	Variable Resistor
Installation:	PCB Board
Package Type:	Carton
Quantity:	Customized
Shape:	Picture
Brand:	Kn

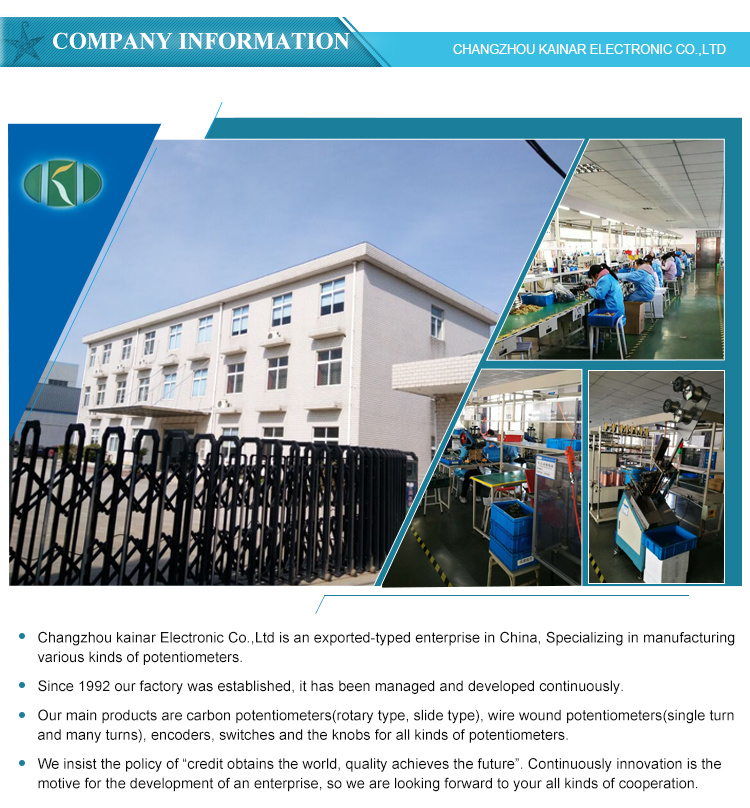

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
