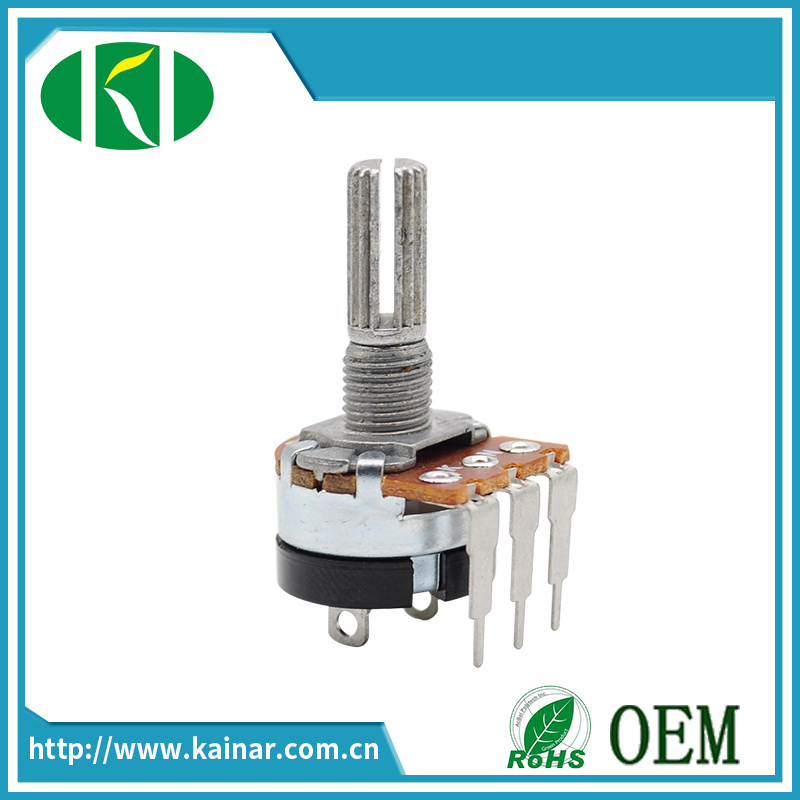

16-17mm with Metal Shaft Mon Rotary Linear Potentiometer Wh148-K2-4

Name: 16-17mm with Metal Shaft Mon Rotary Linear Potentiometer Wh148-K2-4
Brand: all-electronics-online.com
SKU: 815957905
Availability: InStock
Rating: 4.8 (76 reviews)

Price:	US $ 0.18/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

ELECTRICAL CHARACTERISTICS

Item	Item	Specification
1.1	Resistance value and tolerance of resistance	K ±20%
1.2	Load power	0.1 W
1.3	Rotational noise	47mV max
1.4	Insulation Resistance	>100MΩ At 500V DC
1.5	Withstanding Voltage	>1Minute At 250V AC
1.6	Max rated voltage	100V AC
1.7	Tracking error
1.8	Residual resistance	R1,2<10Ω; R2,3<10Ω
1.9	Switch contact resistance	0.05mΩ
1.10	Switch power	16V 1A

MECHANICAL CHARACTERISTICS

2.1	Dimensions	Refer to the separate product drawing
2.2	Total rotation angle	300±5°
2.3	Rotational Torque	20~200gf.cm
2.4	Switch working angle	35±5°
2.5	Switch torque	50~300gf.cm
2.6	Shaft Push Pull Strength	≥8kgf
2.7	Click slip-out force
2.8	Shaft Wobble (mm p-p)	≤0.3mm
2.9	Shaft Stop Strength	>3kg.cm

DURABILITY CHARACTERISTICS

3.1	Rotating life	10,000 cycles
3.2	Storage Temperature Range	-30ºC~+80ºC
3.3	Operation Temperature Range	-20ºC~+70ºC
3.4	Soldering Heat Characteristic	260°C/2.5±0.5S

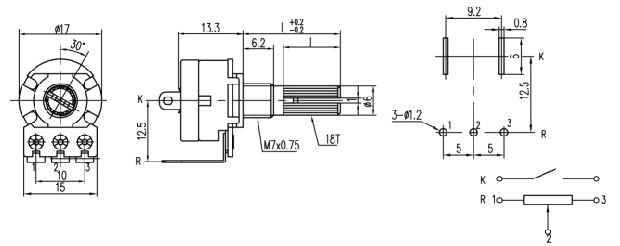

OUTLINE DRAWING

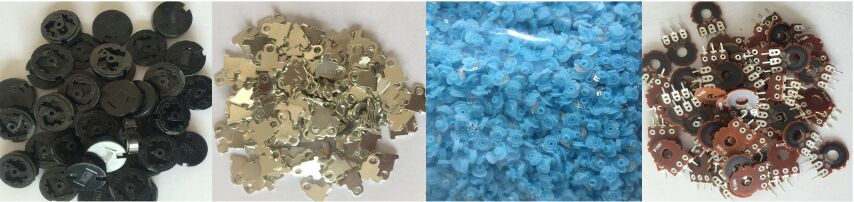

Raw Material

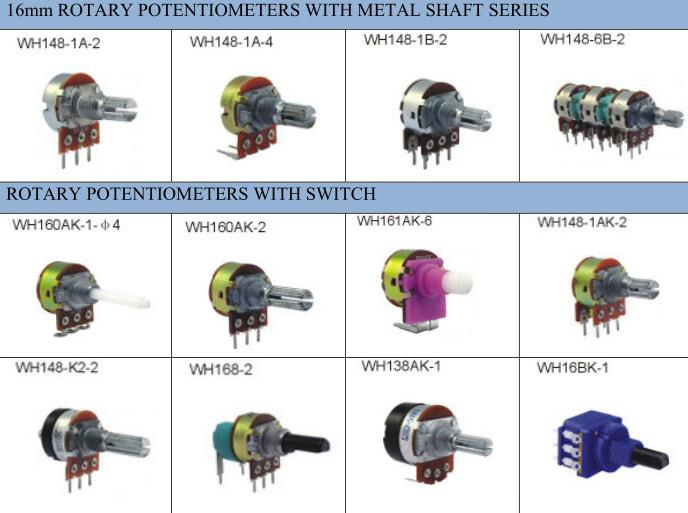

Related Products

Prod Model:	WH148-K2-4
Rated Volatge:	200V 150V
Power Rating:	0.125W 0.06W
Tolerance Of Resistance:	±20%
Withstand Voltage:	AC500V 1minute
Resistance:	Variable Resistor
Material:	Carbon Film Resistor
Type:	Rotary Potentiometer
Function For Resistance:	Variable Resistor
Installation:	Other
Package Type:	Carton
Quantity:	50, 0000PCS
Shape:	Picture
Brand:	Kainar

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
